Fuel Level Sending Unit/Sensor

REMOVAL

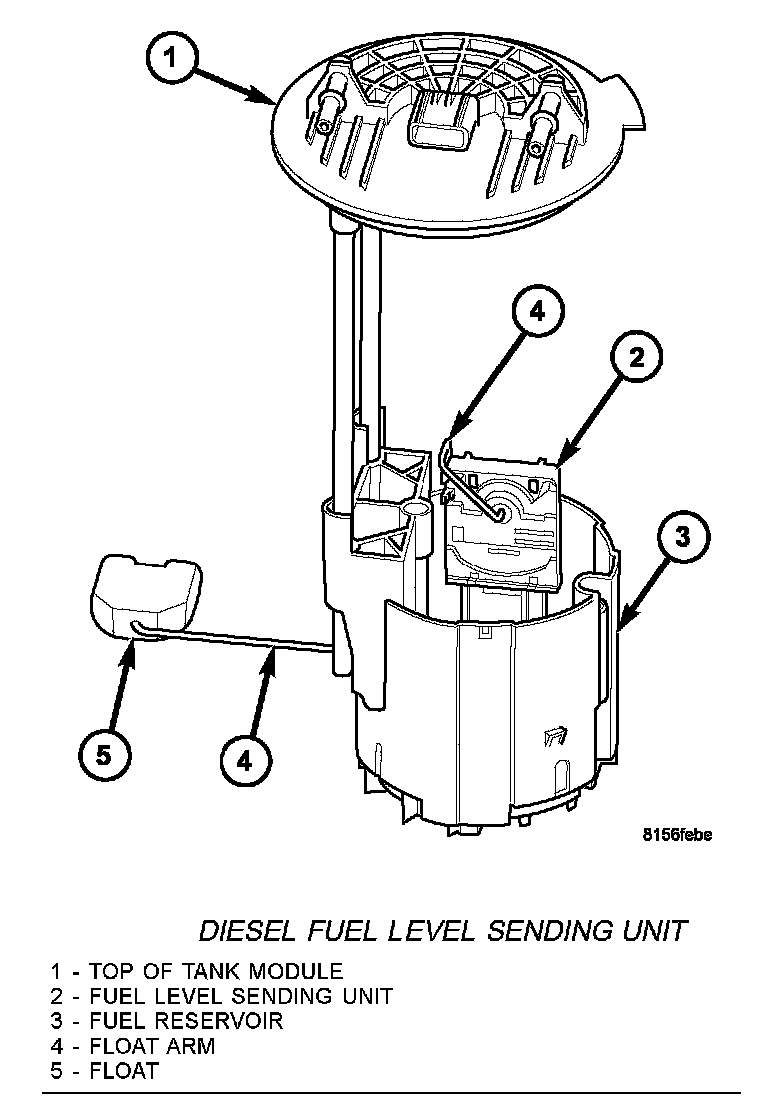

Diesel Fuel Level Sending Unit:

The fuel level sending unit (fuel level sensor) (2) and float assembly (4) and (5) are located on the fuel tank module.
1. Remove fuel tank module from fuel tank.
2. To remove sending unit from tank module, lift on plastic locking tab while sliding sending unit upwards.
3. Disconnect electrical connectors from fuel tank module. Separate necessary sending unit wiring.

INSTALLATION
1. Connect necessary wiring into electrical connectors.

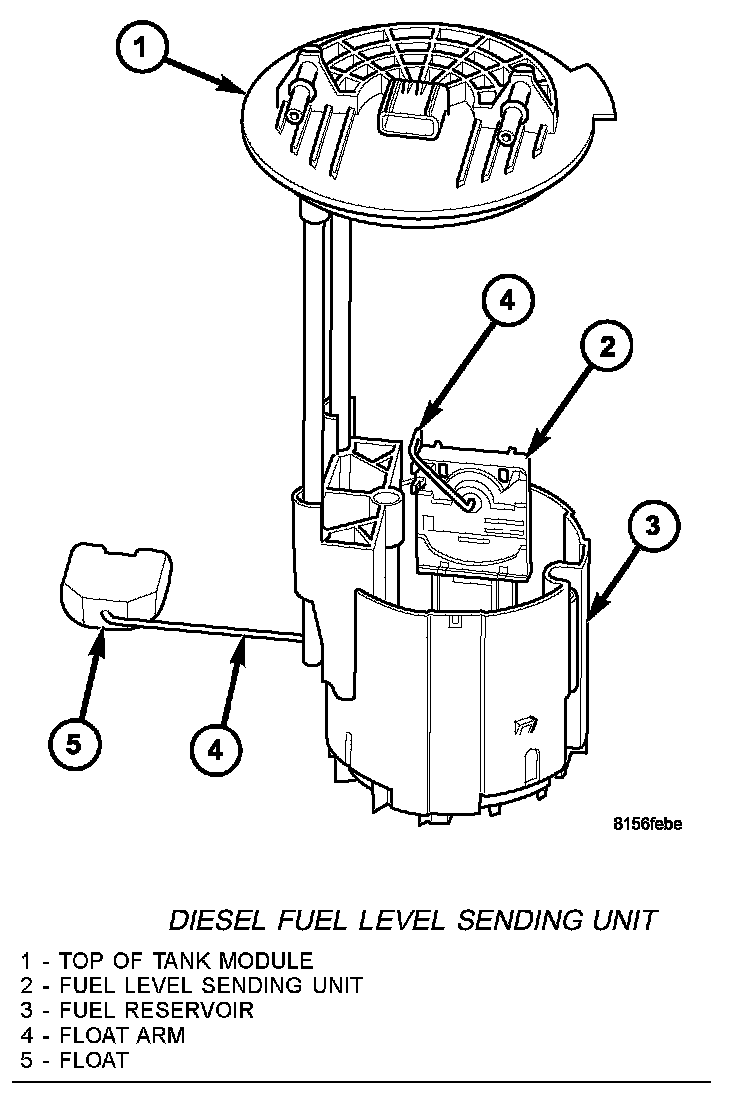

Diesel Fuel Level Sending Unit:

2. Position sending unit (2) to tank module. Slide and snap into place until tab engages.
3. Install fuel tank module into fuel tank.
