Low Coolant Indicator Always on - Diesel Only

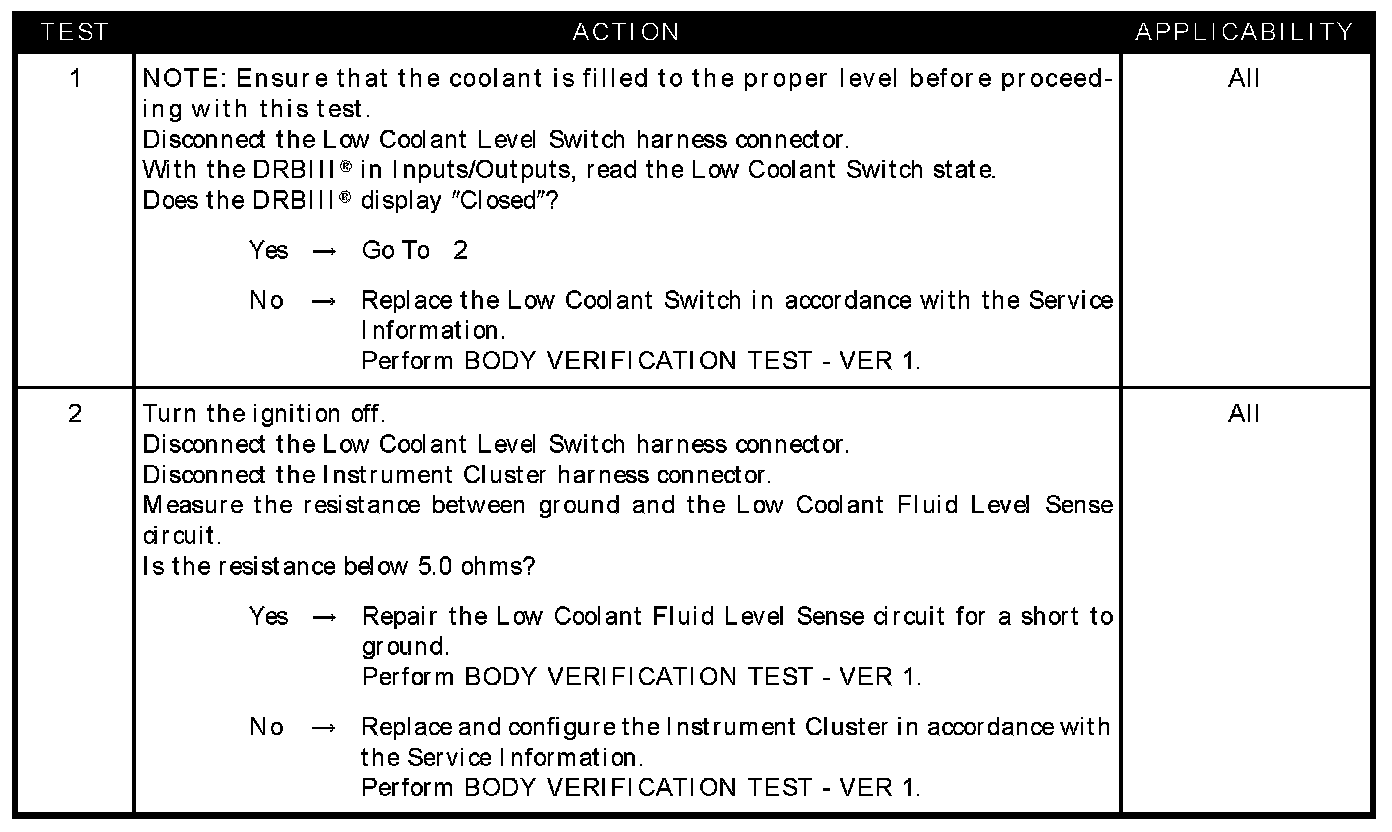

Test 1 - 2:






SYMPTOM
LOW COOLANT INDICATOR ALWAYS ON - DIESEL ONLY

POSSIBLE CAUSES
- Low coolant switch
- Low coolant fluid level sense circuit short to ground
- Instrument cluster
