Low Coolant Indicator Inoperative - Diesel Only

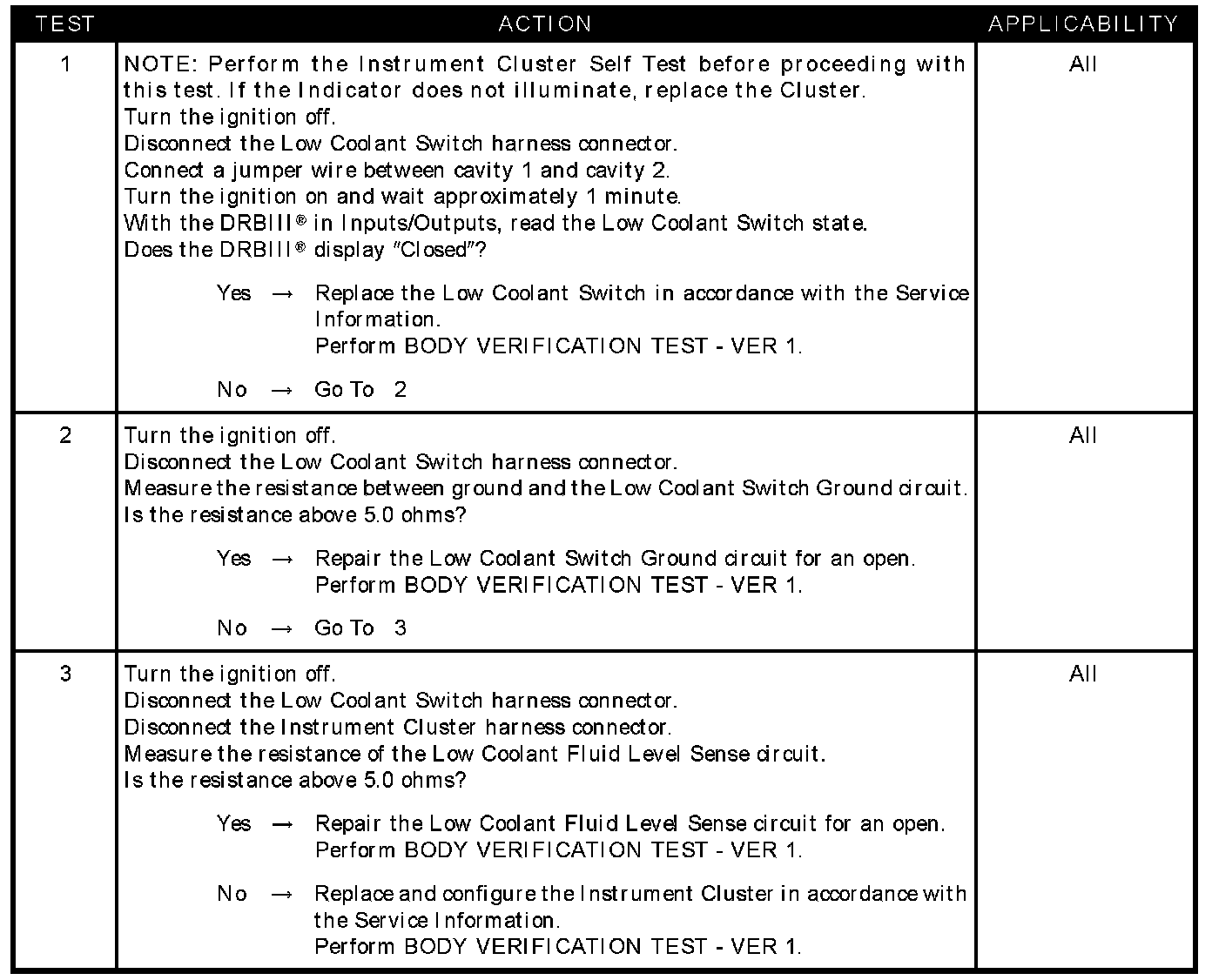

Test 1 - 3:
SYMPTOM LOW COOLANT INDICATOR INOPERATIVE - DIESEL ONLY
POSSIBLE CAUSES -
Low coolant switch
-
-
Low coolant fluid level sense circuit open
-
Low coolant switch ground circuit open
-
Instrument cluster
