No Response From Front Control Module (Diesel Only)

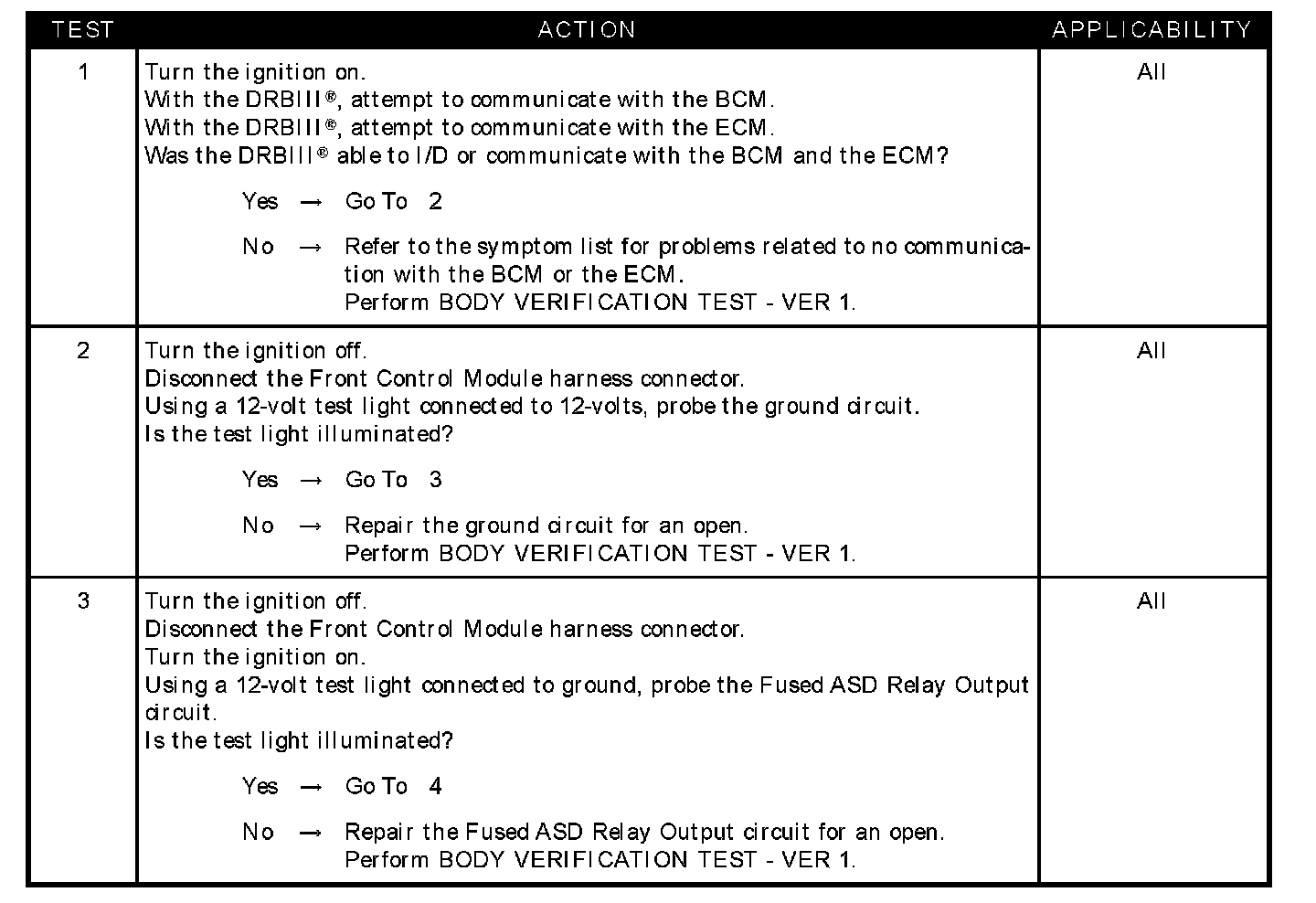

Test 1 - 3:

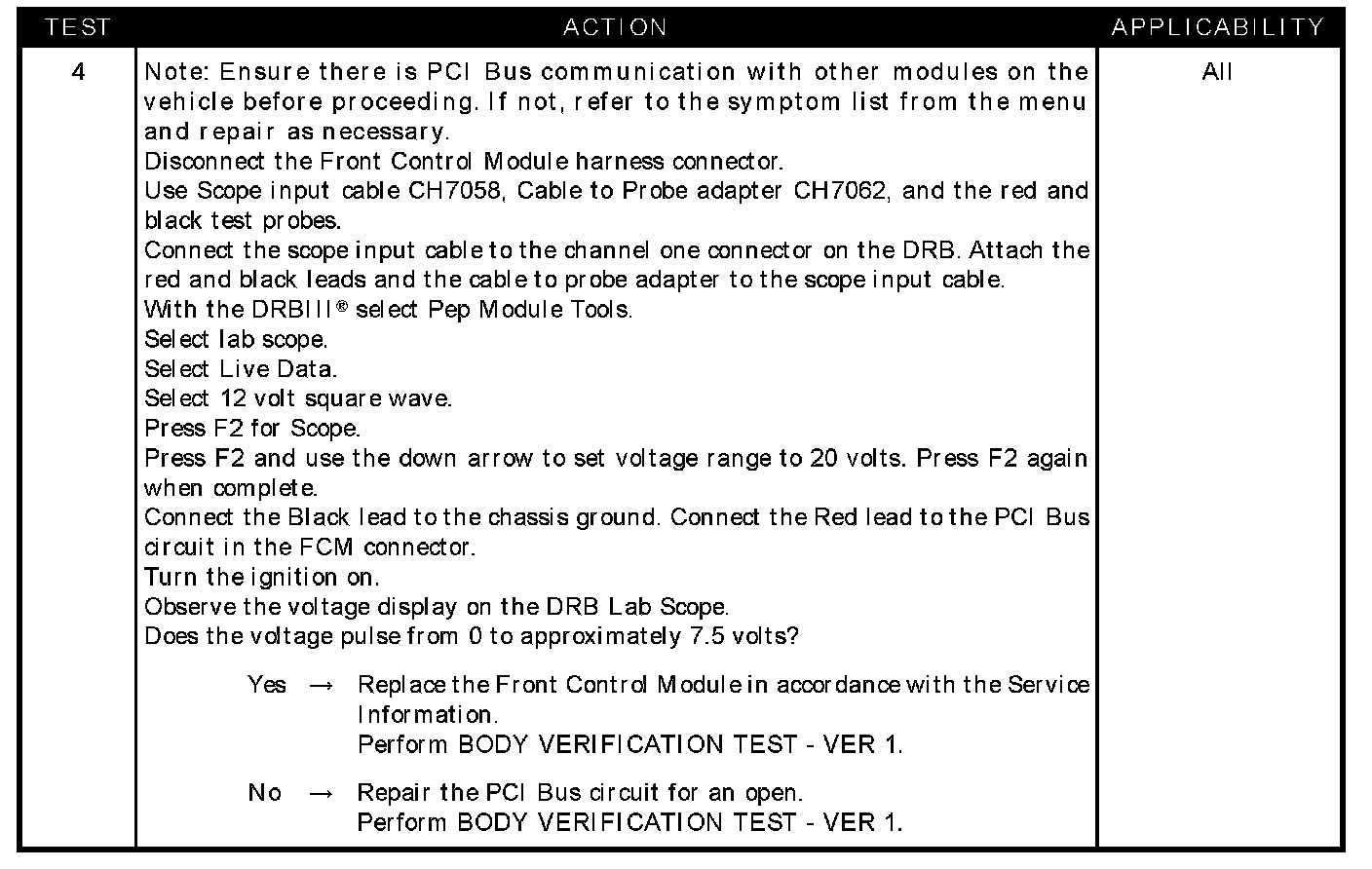

Test 4:
SYMPTOM NO RESPONSE FROM FRONT CONTROL MODULE (DIESEL ONLY)
POSSIBLE CAUSES -
Attempt to communicate with the
BCM and ECM
-
Ground circuit open
-
Fused ASD relay output circuit open
-
Open PCI BUS circuit
-
Front control module
