Checking the High-Side Fuel System

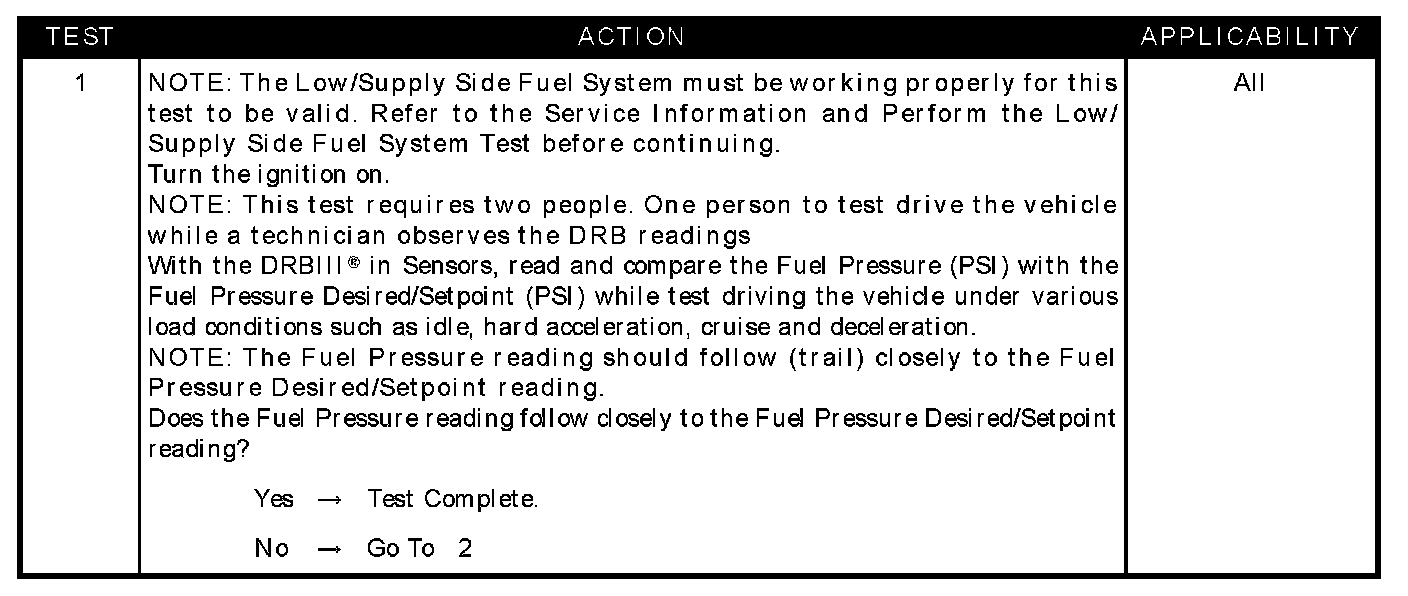

Test 1:

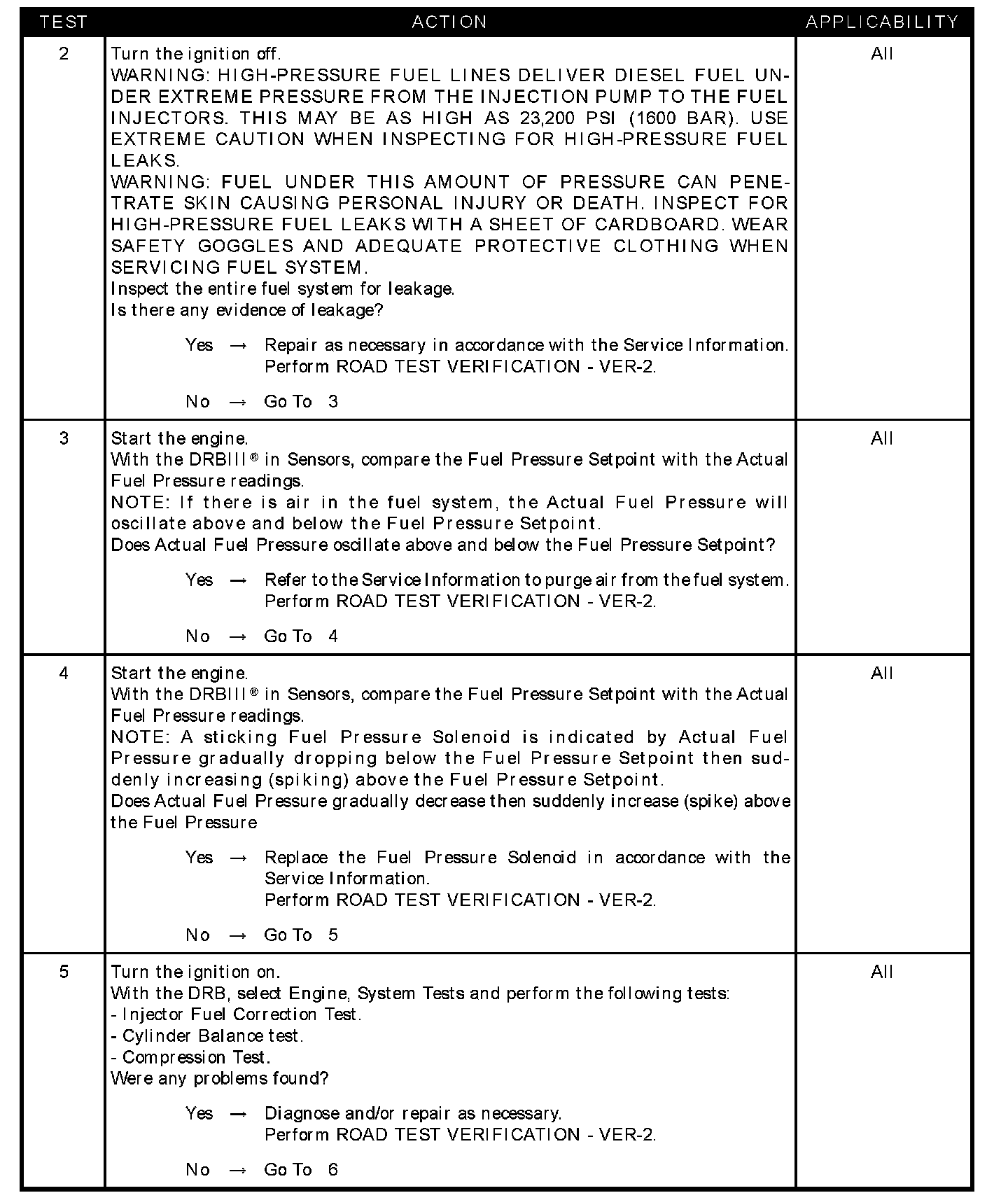

Test 2 - 5:

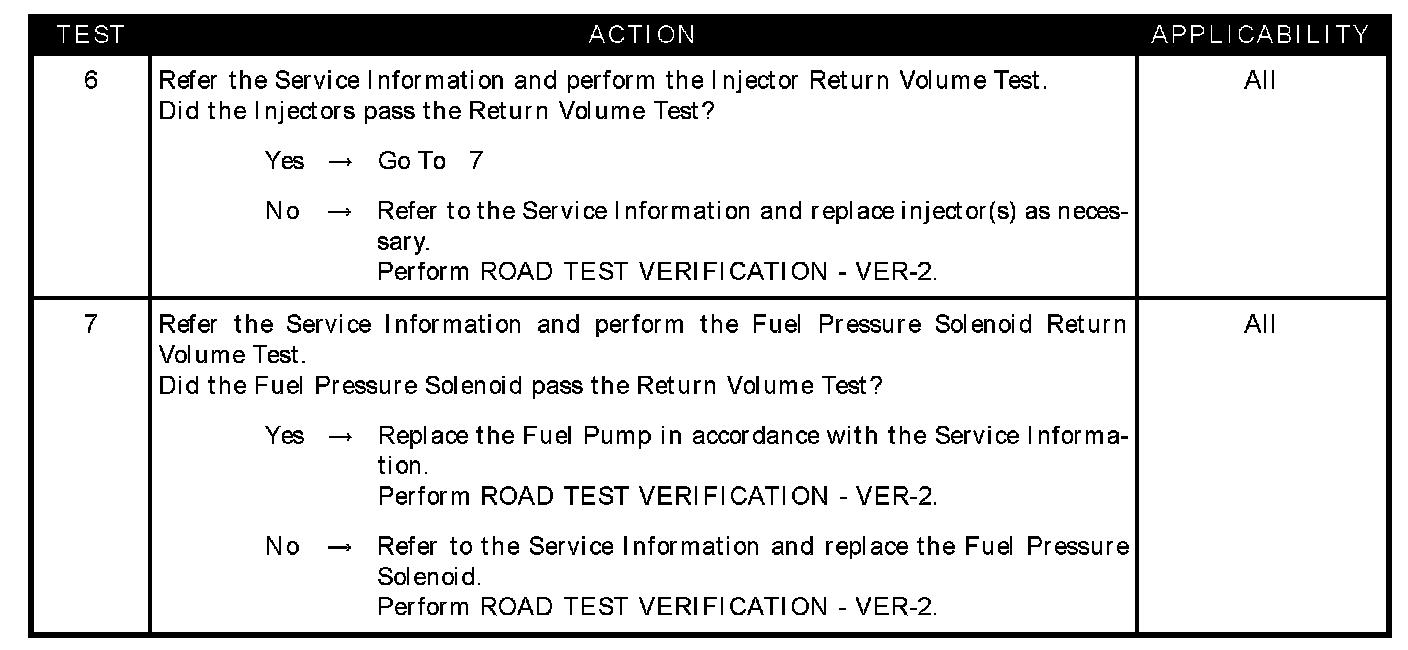

Test 6 - 7:
SYMPTOM CHECKING THE HIGH-SIDE FUEL SYSTEM
POSSIBLE CAUSES -
Air in fuel system
-
DRB TESTS
-
Fuel pressure solenoid
-
Fuel pressure solenoid return volume test
-
Fuel pump
-
Fuel system leak
-
Injector return volume test
