Checking the Transfer Case Position Sensor
Checking the Transfer Case Position Sensor

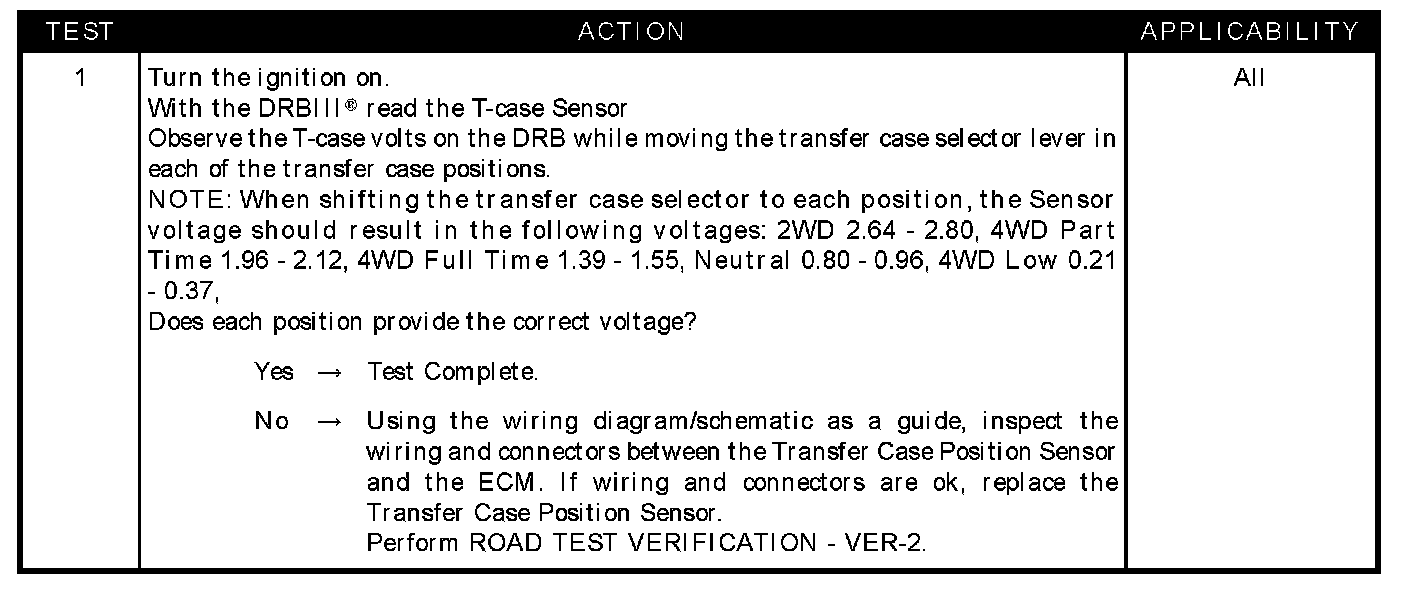

Test 1:
SYMPTOM
CHECKING THE TRANSFER CASE POSITION SENSOR
POSSIBLE CAUSES
-
Checking the transfer case position sensor
