Lack of Engine Power

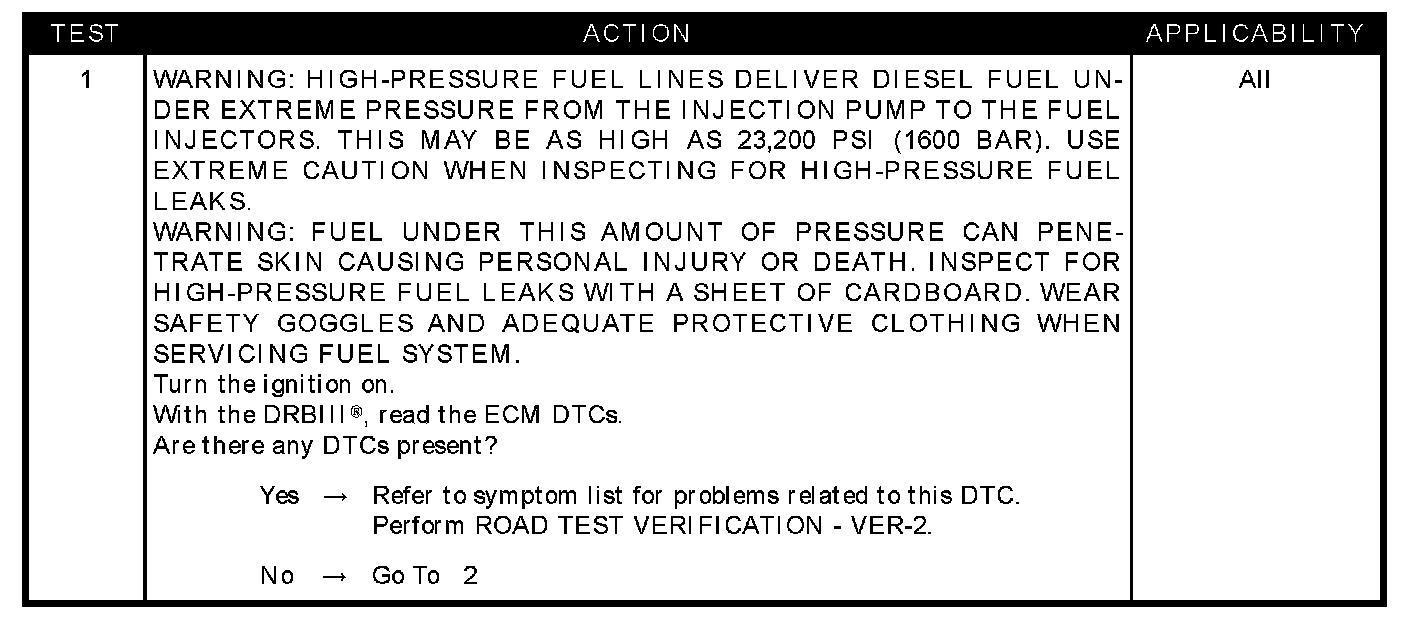

Test 1:

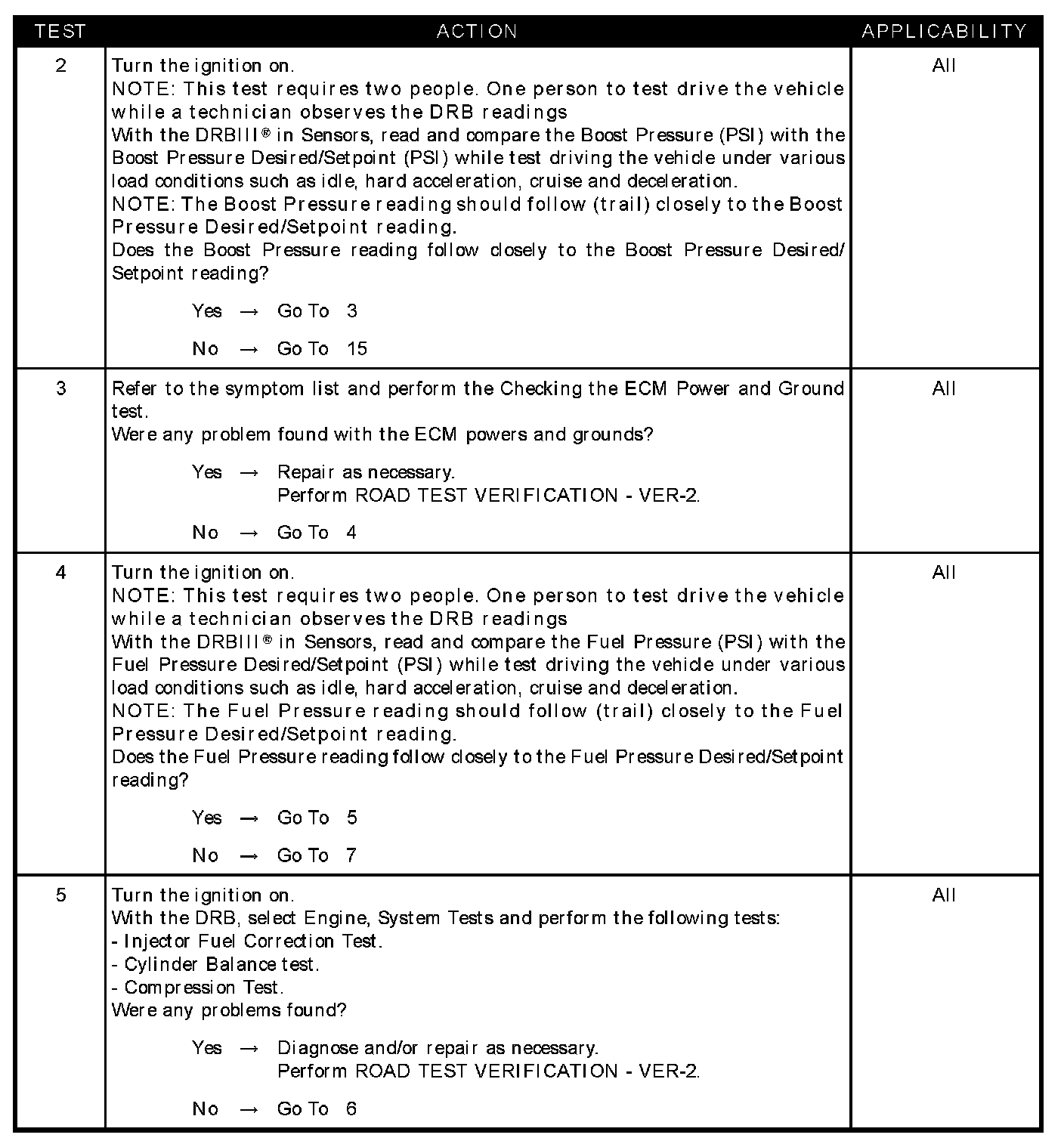

Test 2 - 5:

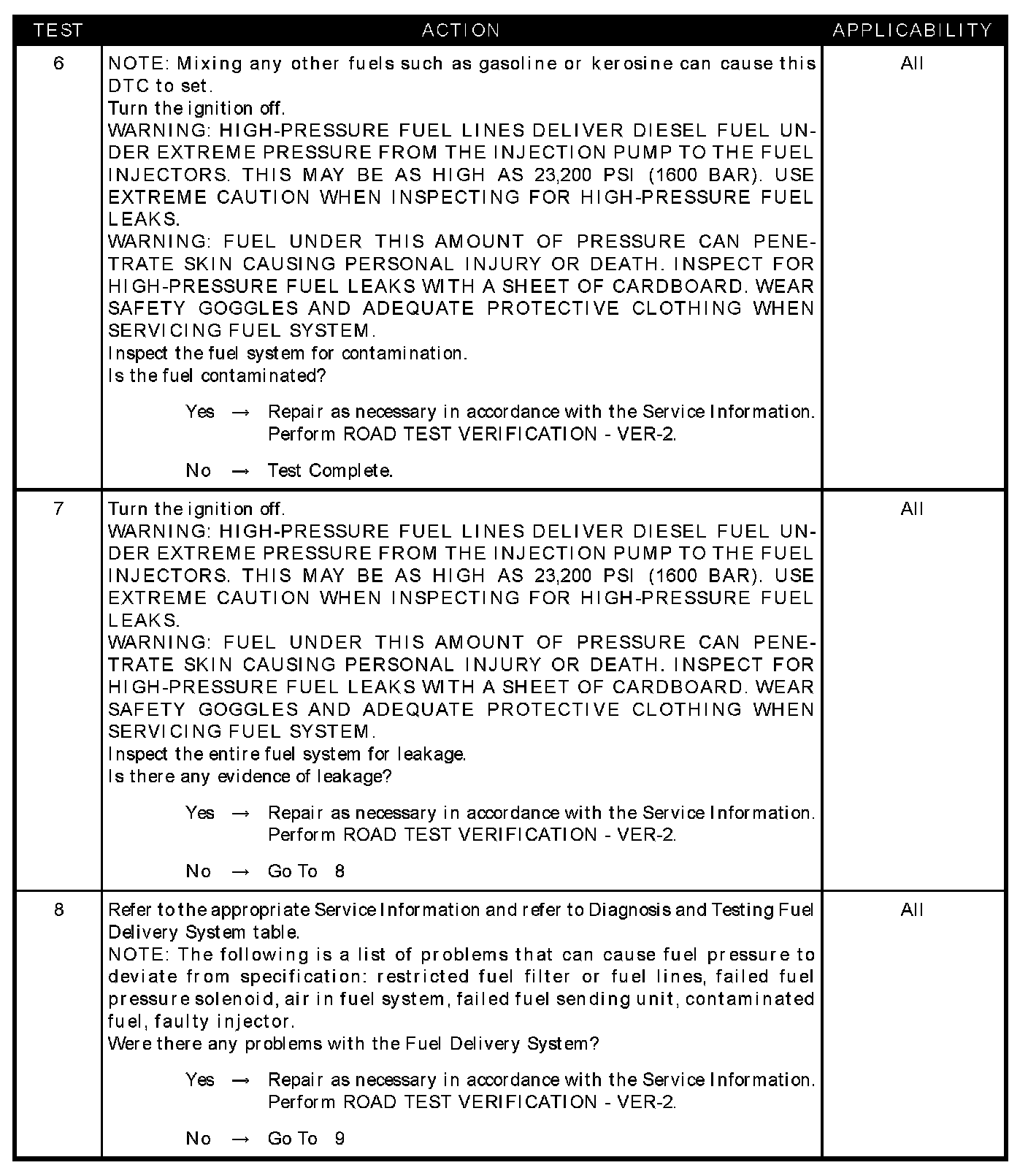

Test 6 - 8:

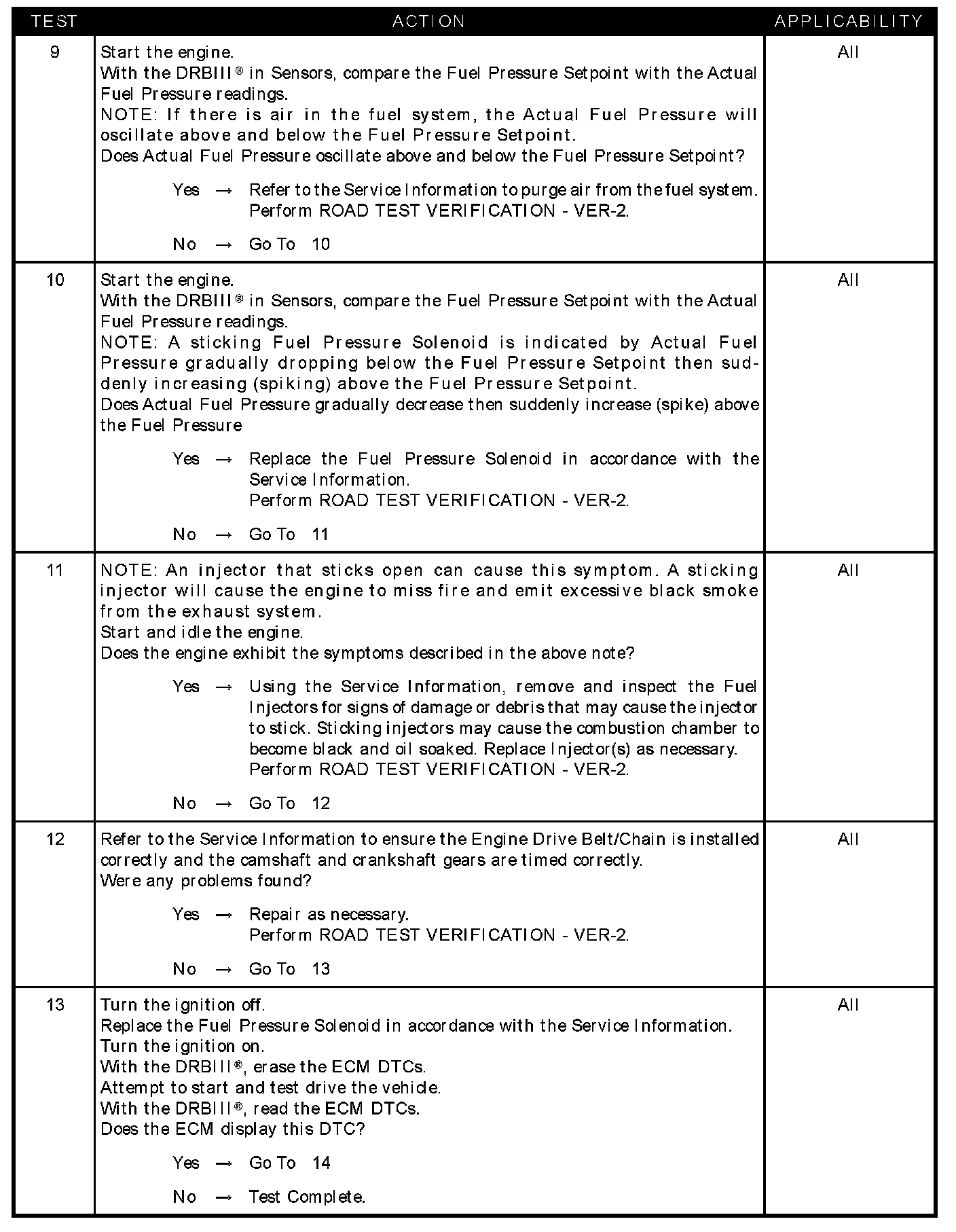

Test 9 - 13:

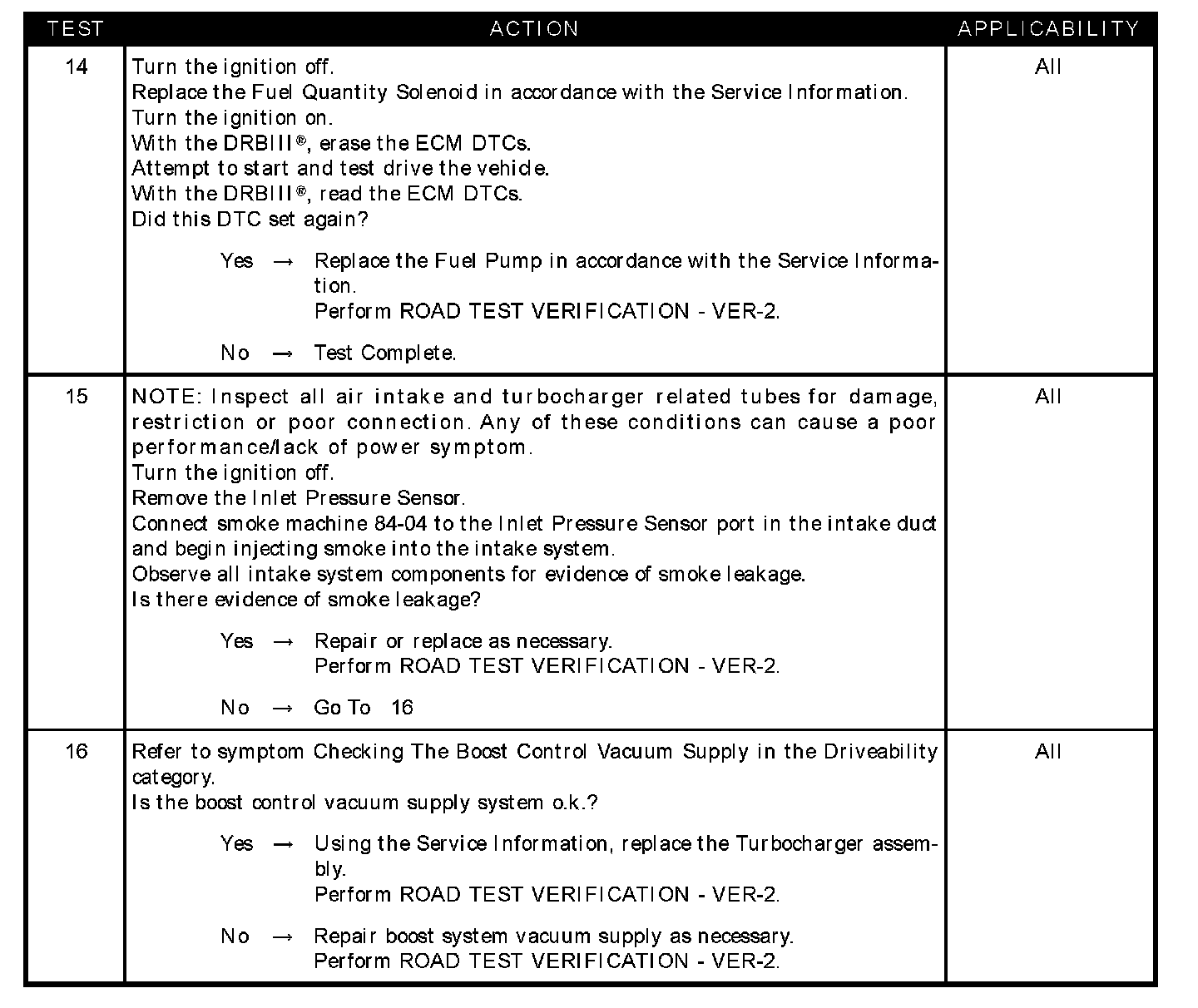

Test 14 - 16:

SYMPTOM
LACK OF ENGINE POWER

POSSIBLE CAUSES
- Air in fuel system
- Boost control vacuum supply
- Check for ECM DTCs
- Checking ECM power and grounds
- Checking for air leaks
- Checking the fuel delivery system
- DRB tests
- Engine drive belt/chain
- Fuel injector(s)
- Fuel pressure solenoid
- Fuel pressure solenoid
- Fuel pump
- Fuel system contamination
- Fuel system leak
- Turbocharger
