Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2005
>>
Liberty 4WD L4-2.8L DSL Turbo VIN 5
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Testing and Inspection
>>
Transmission Range Sensor Switch States
Transmission Range Sensor Switch States

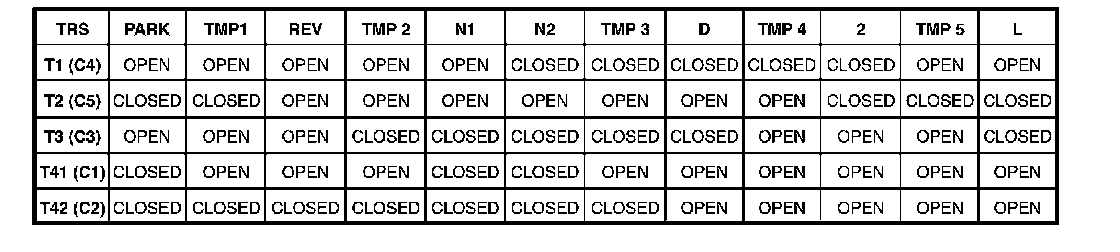

45RFE/545RFE TRS Switch States:
