Glow Plug Control Module: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

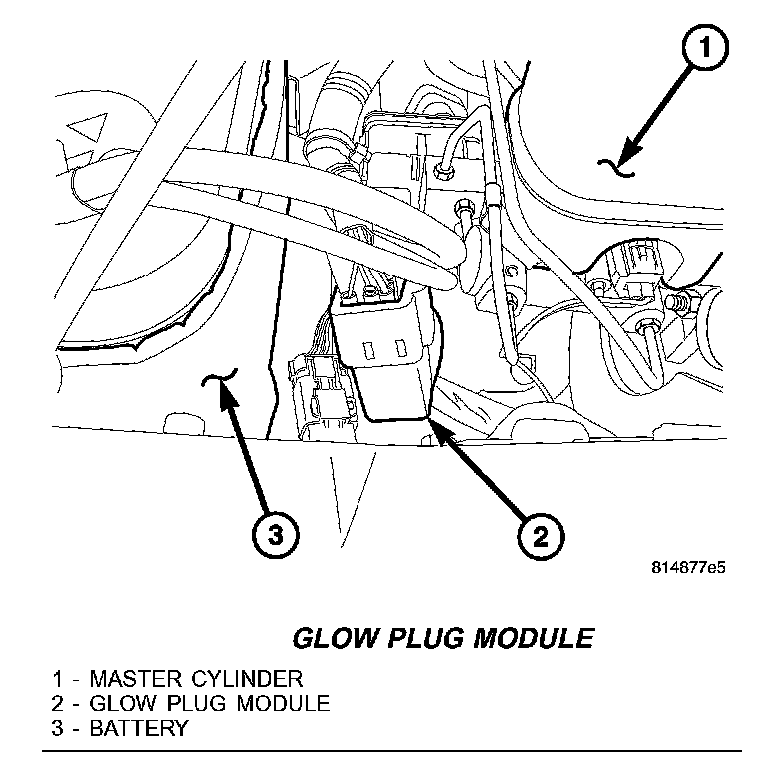

Glow Plug Module:

2. Disconnect the glow plug wiring harness connector.
3. Remove the module from the inner wheel well.

INSTALLATION
1. Connect the glow plug wiring harness connector.
2. Secure the relay onto the inner fender well
3. Connect the negative battery cable.
