Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2005
>>
Liberty 4WD L4-2.8L DSL Turbo VIN 5
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

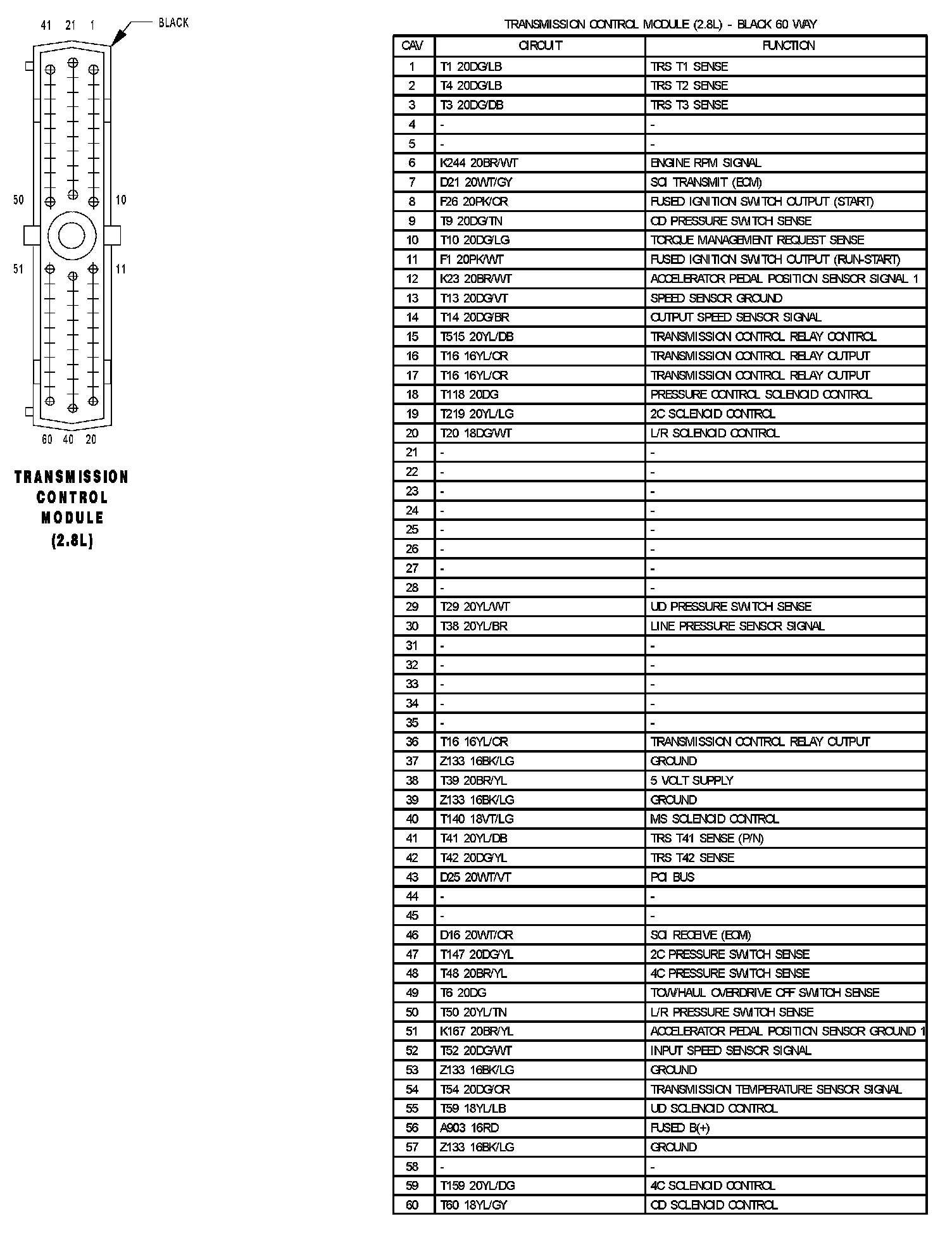

Transmission Control Module (2.8L):
