Service Specifications

SPECIFICATIONS

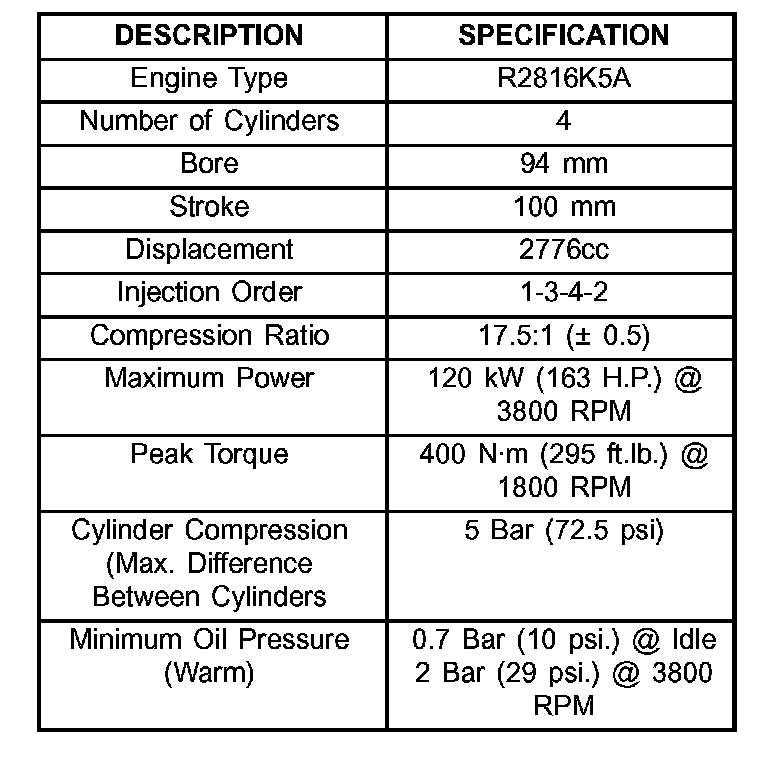

GENERAL DESCRIPTION

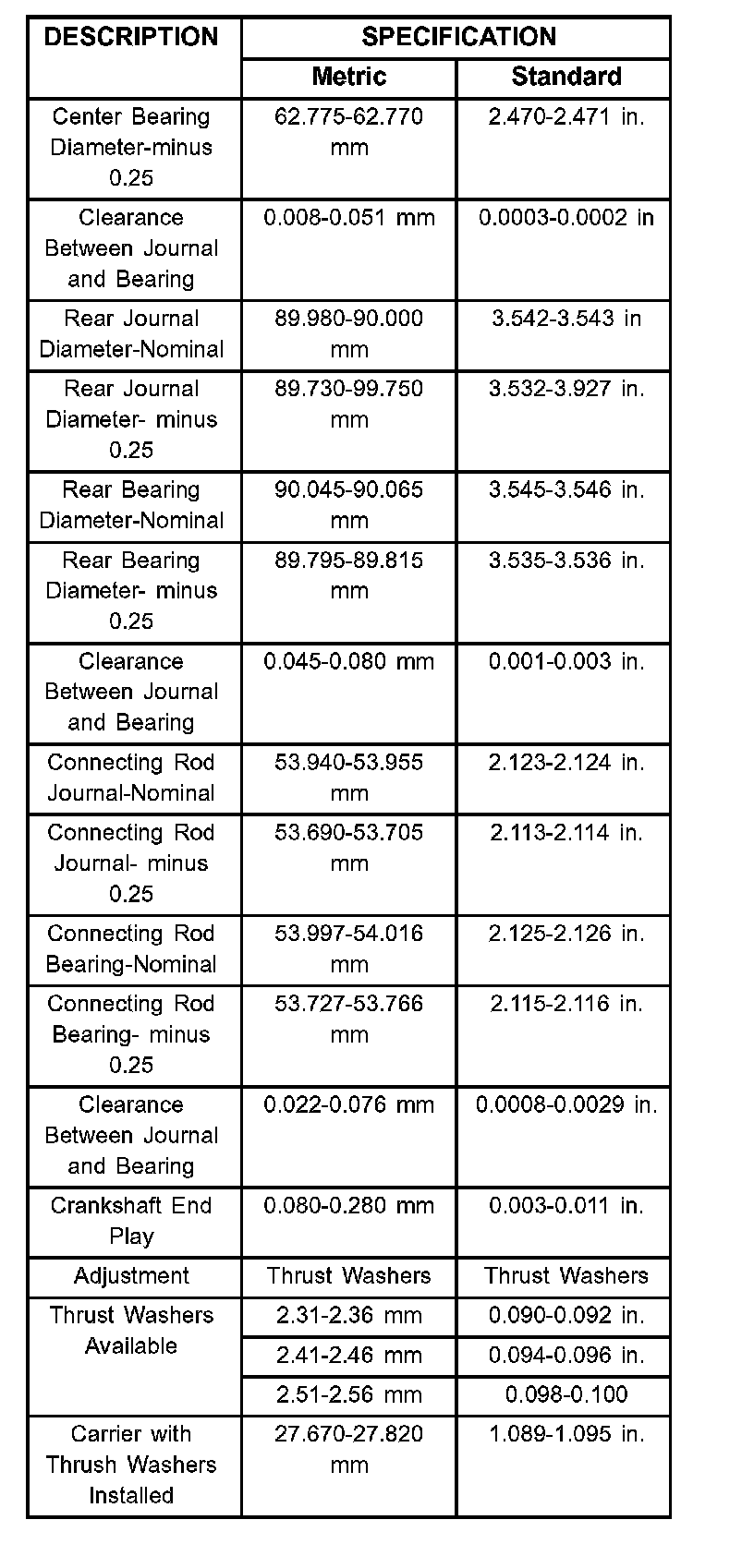

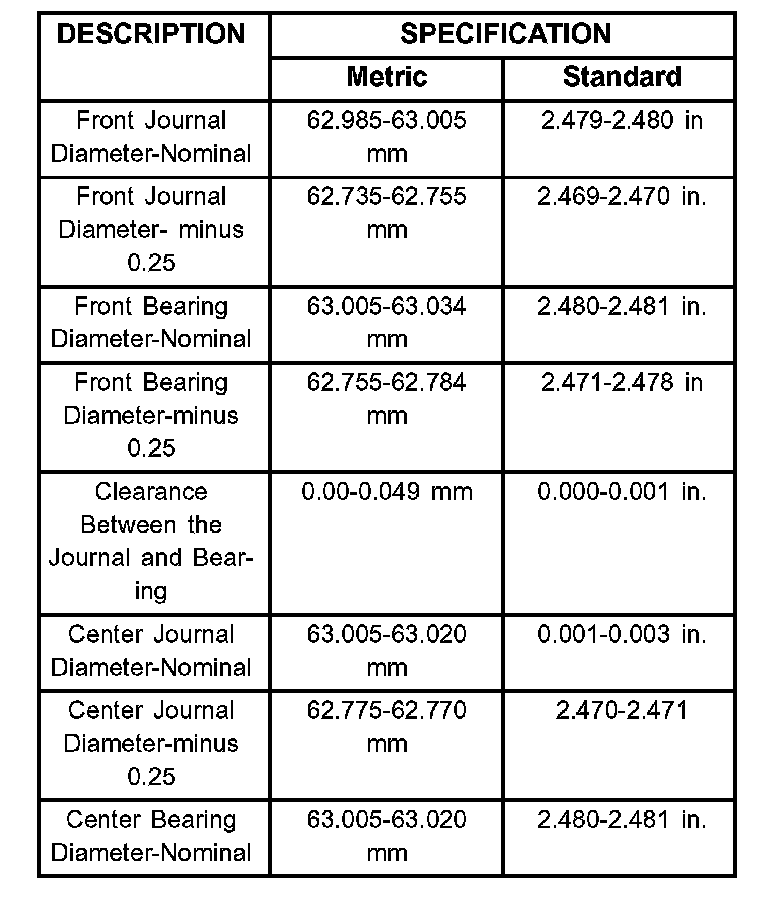

CRANKSHAFT

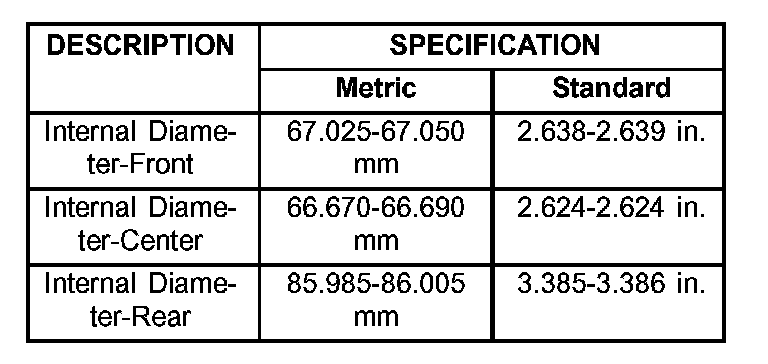

MAIL BEARING CARRIERS

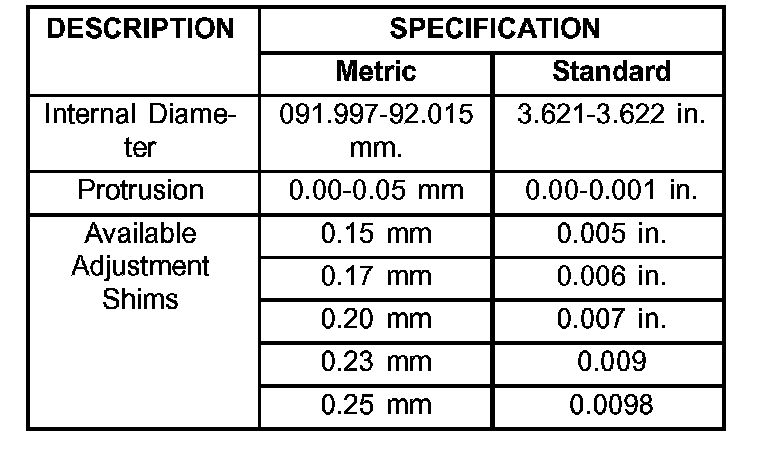

LINERS

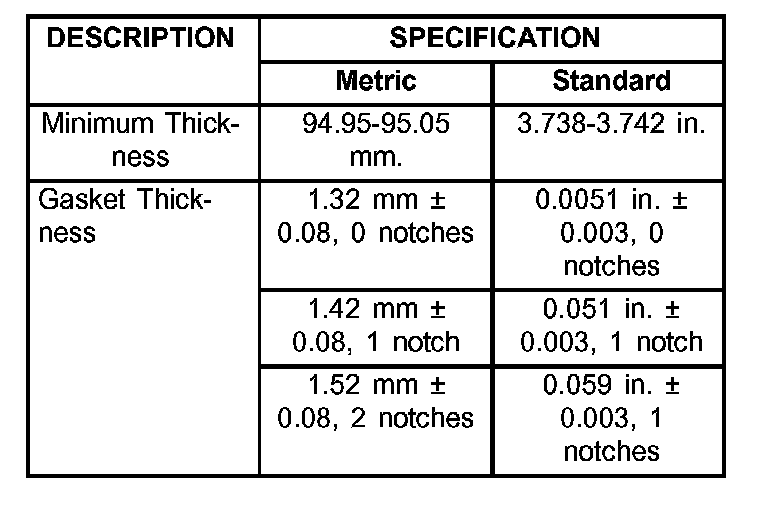

CYLINDER HEAD

CONNECTING RODS

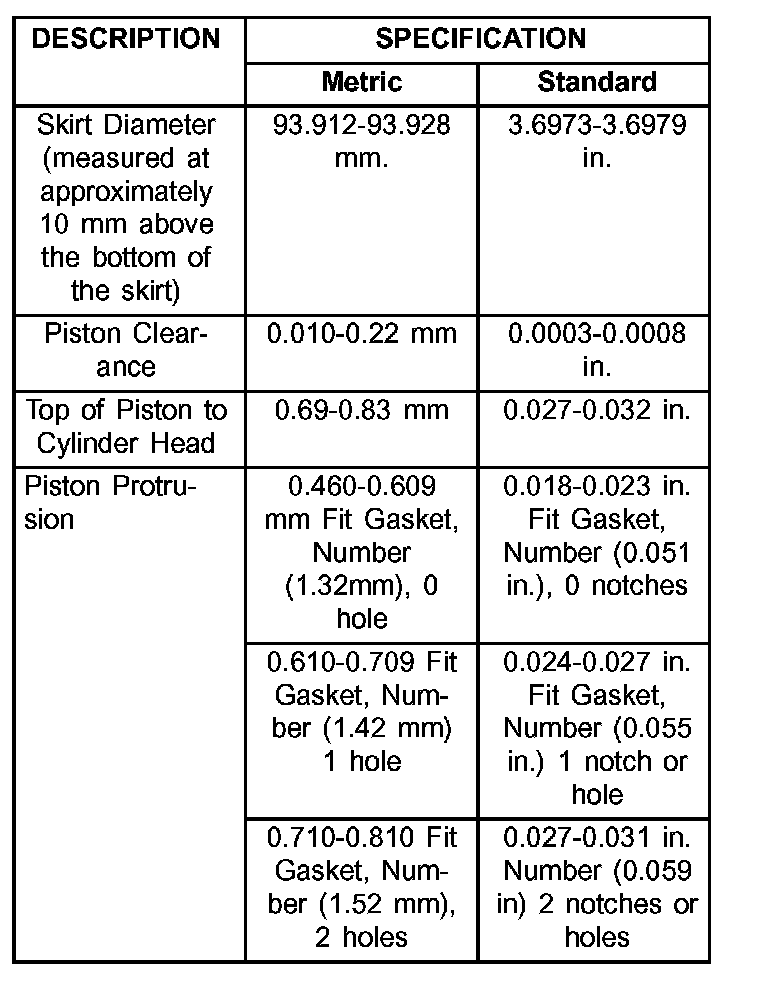

PISTONS

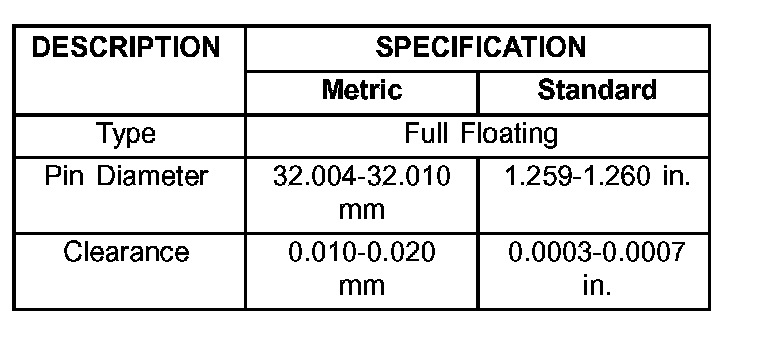

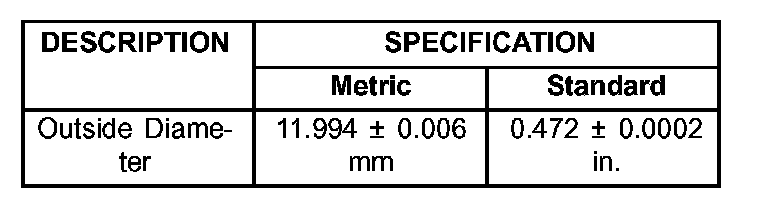

PISTON PINS

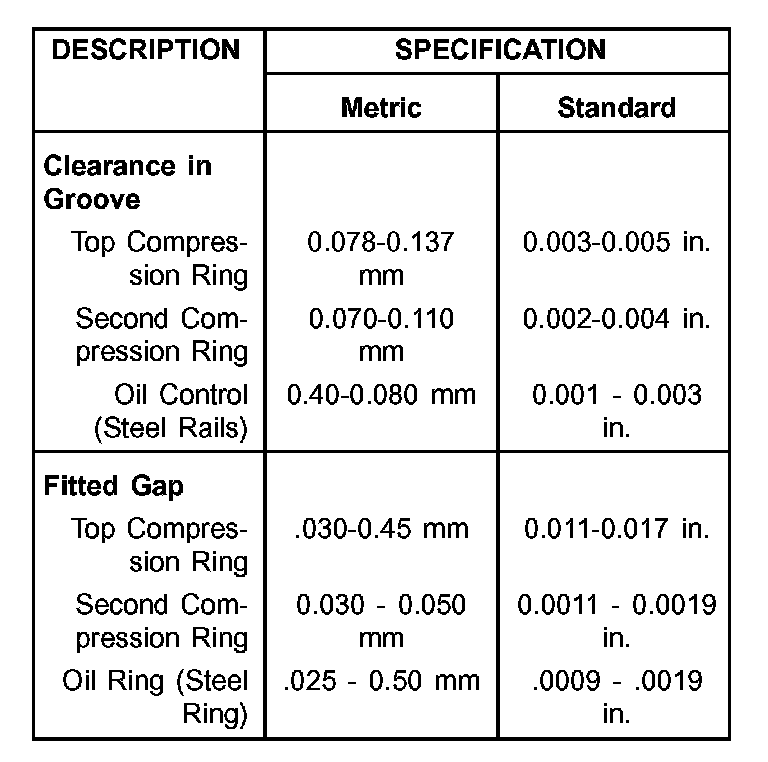

PISTON RINGS

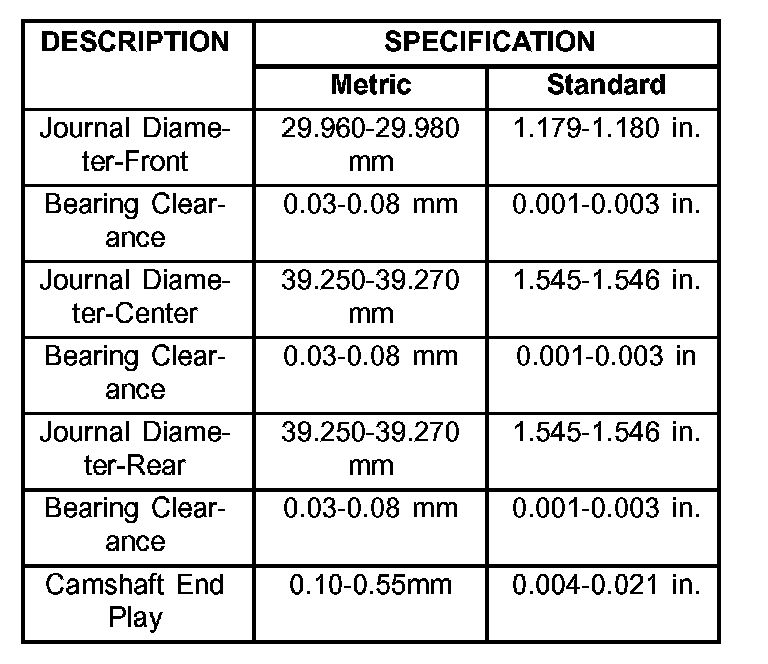

CAMSHAFT

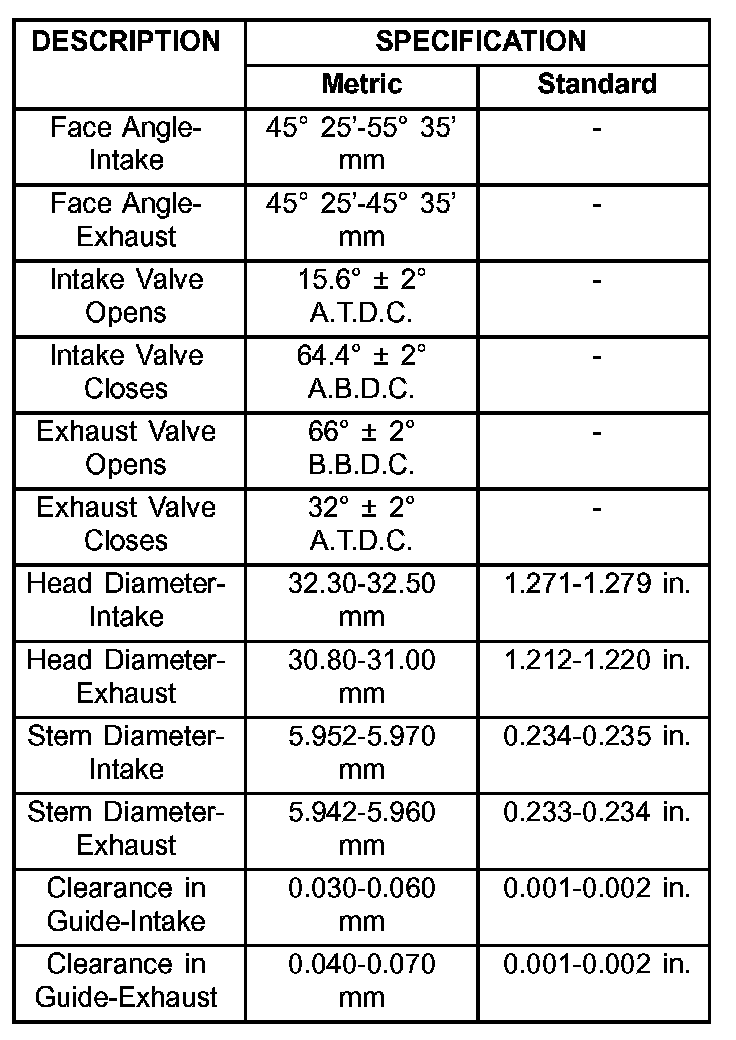

VALVES

HYDRAULIC LIFTER

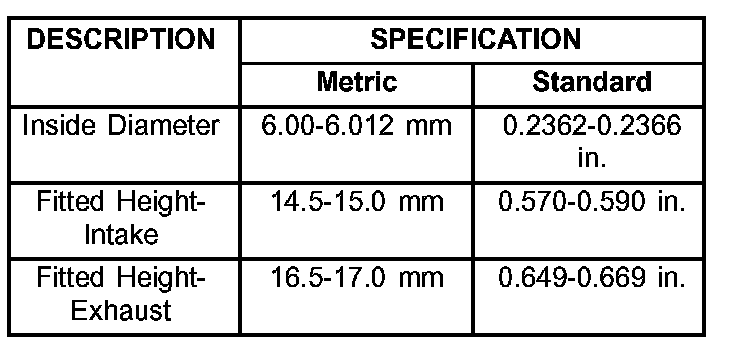

VALVE GUIDE

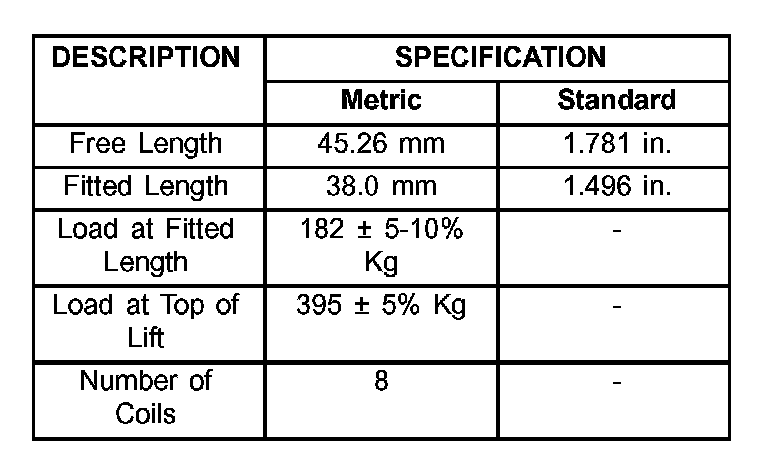

VALVE SPRING

LUBRICATION

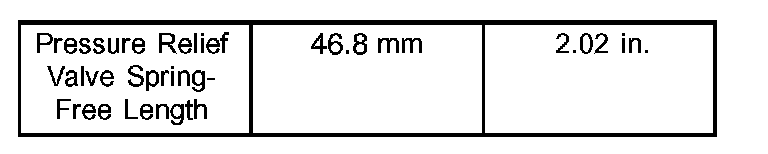

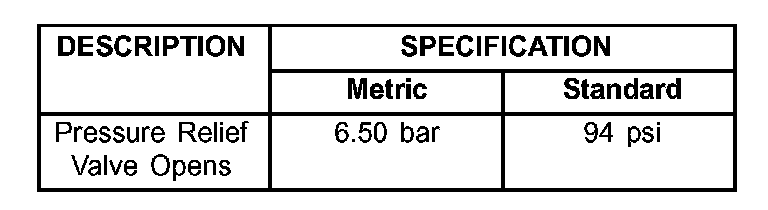

OIL PUMP
