Starter Motor: Service and Repair

2.4L 4-Cylinder

REMOVAL

1. Disconnect and isolate negative battery cable.
2. Raise and support vehicle.

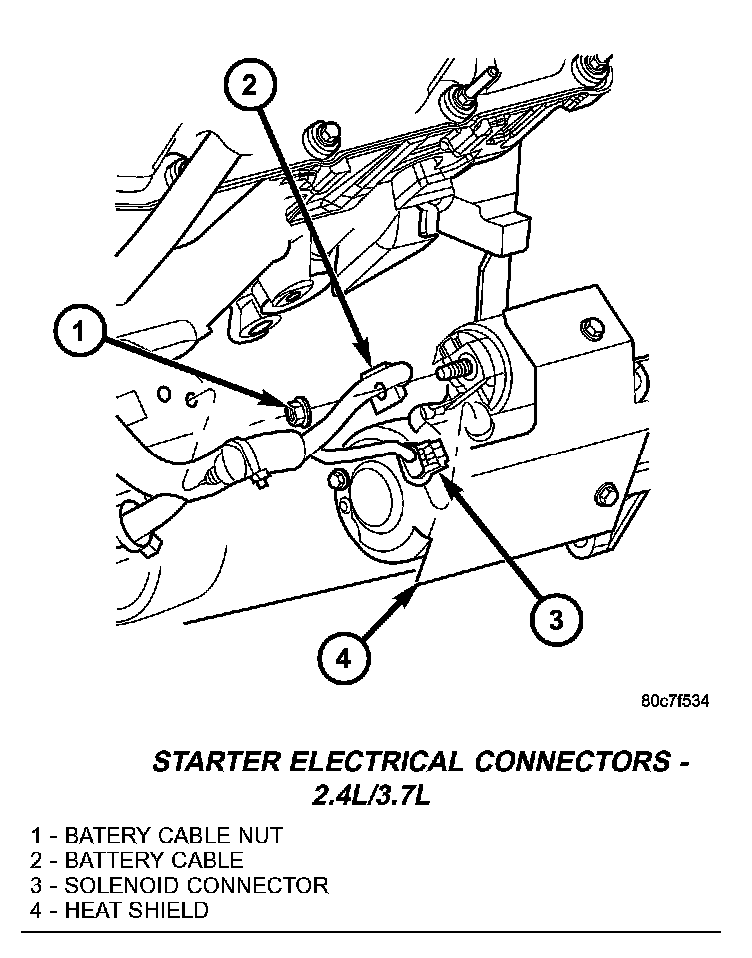

Starter Electrical Connectors - 2.4L/3.7L:

3. Remove solenoid wire from solenoid terminal.
4. Remove battery cable from stud on starter solenoid.

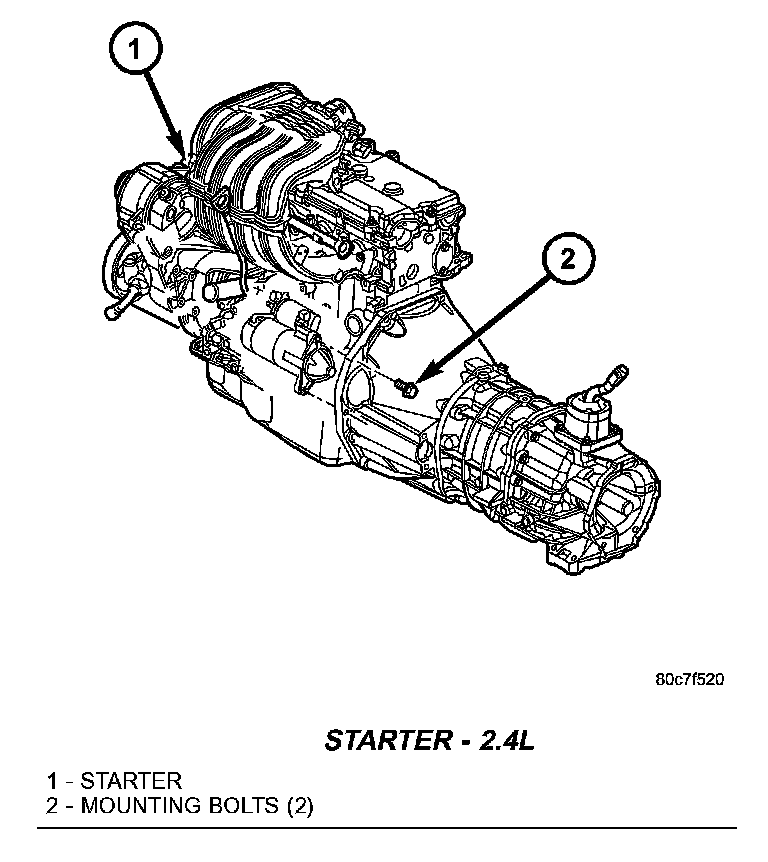

Starter - 2.4L:

5. Remove 2 starter mounting bolts and remove starter from vehicle.

INSTALLATION
1. Position starter into bellhousing and install 2 bolts. Refer to torque specifications.
2. Install battery cable and nut to stud on starter solenoid. Refer to torque specifications.
3. Install solenoid wire connector to solenoid terminal.
4. Lower vehicle.
5. Connect negative battery cable.
