Fuel Injector
Fuel Injector
Fuel Injector No. 1 (2.4L):

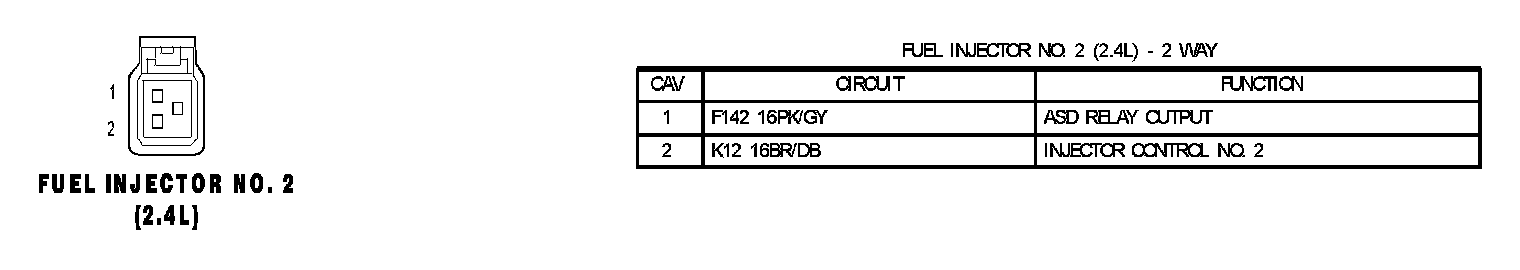

Fuel Injector No. 2 (2.4L):

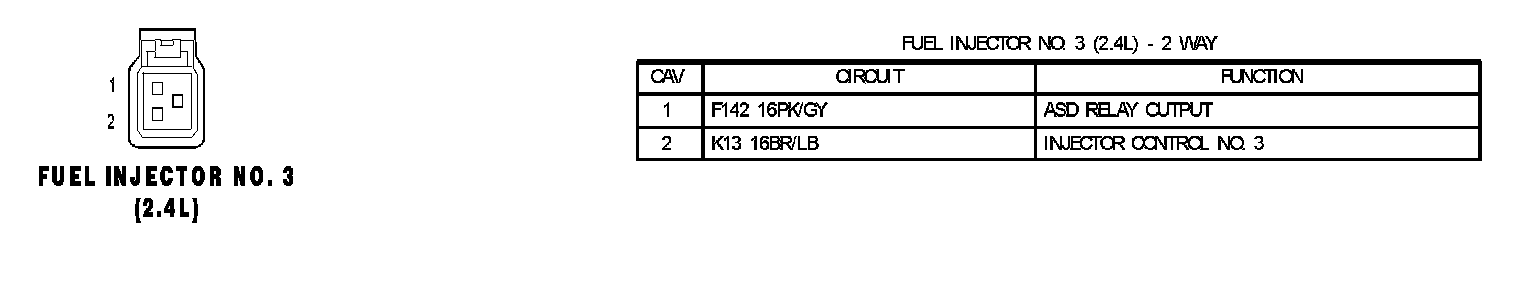

Fuel Injector No. 3 (2.4L):

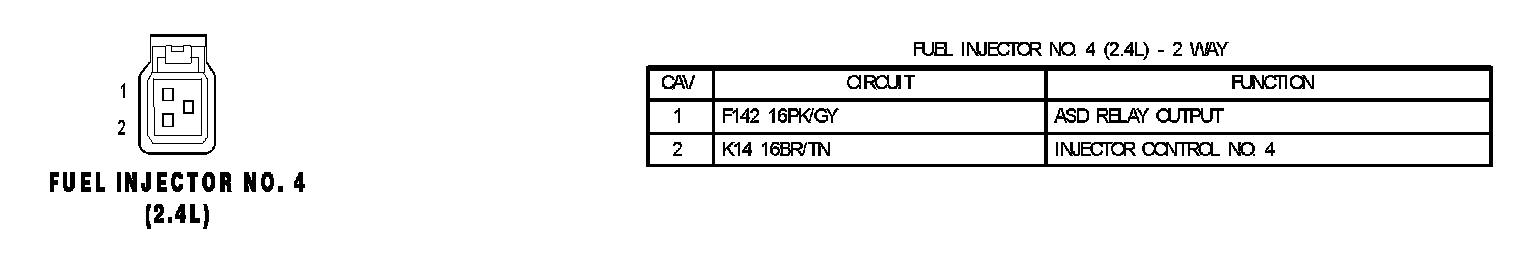

Fuel Injector No. 4 (2.4L):
