Turn Signal Lamp

Left Front Park/Turn Signal Lamp:

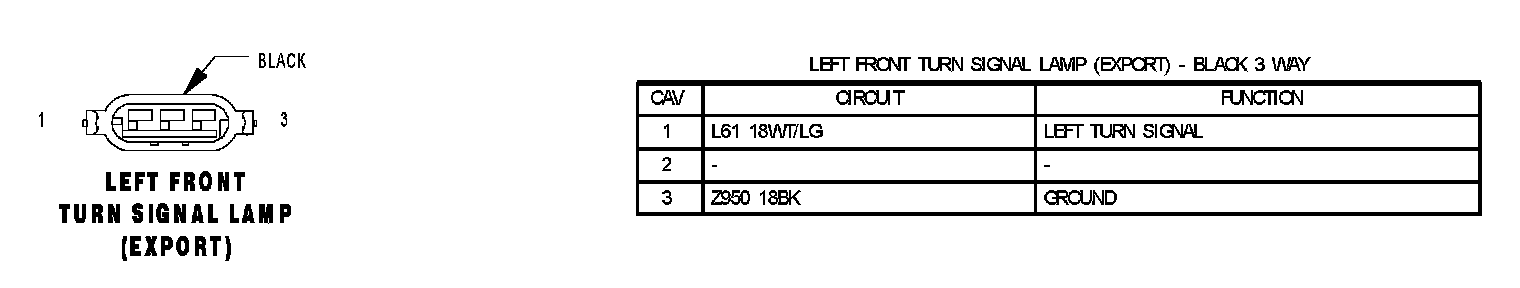

Left Front Turn Signal Lamp (Export):



Left Side Repeater Lamp (Export):

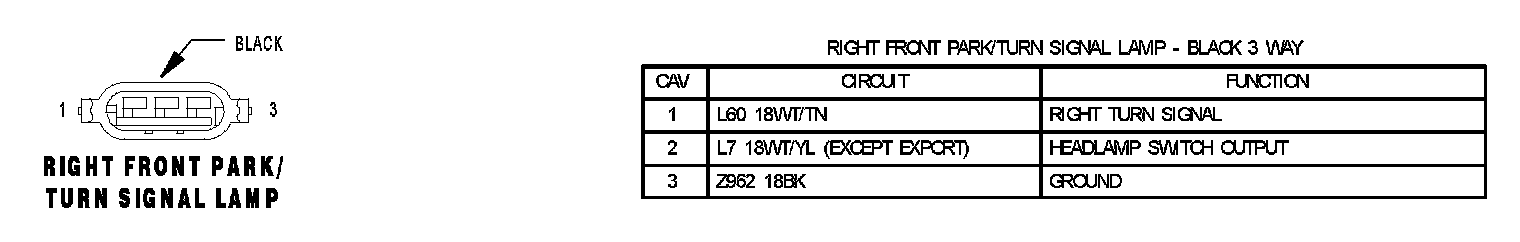

Right Front Park/Turn Signal Lamp:

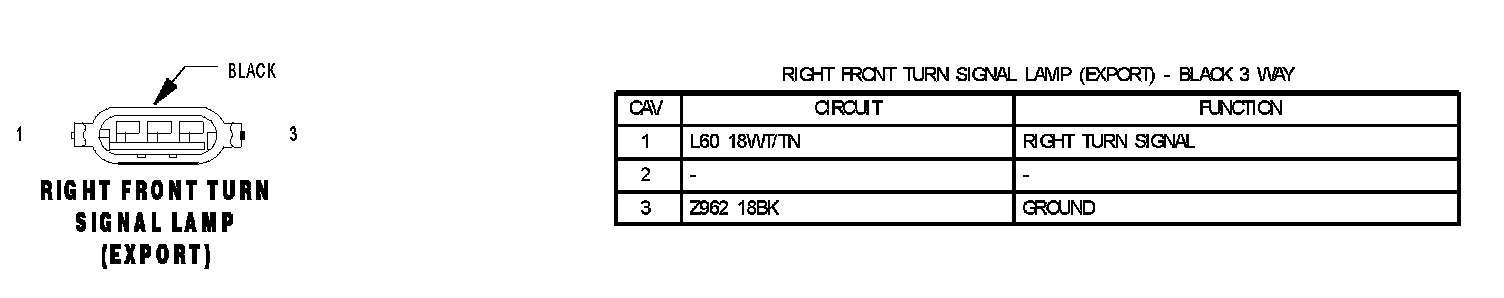

Right Front Turn Signal Lamp (Export):



Right Side Repeater Lamp (Export):
