Vacuum Pump, Locks
Vacuum Pump, Locks

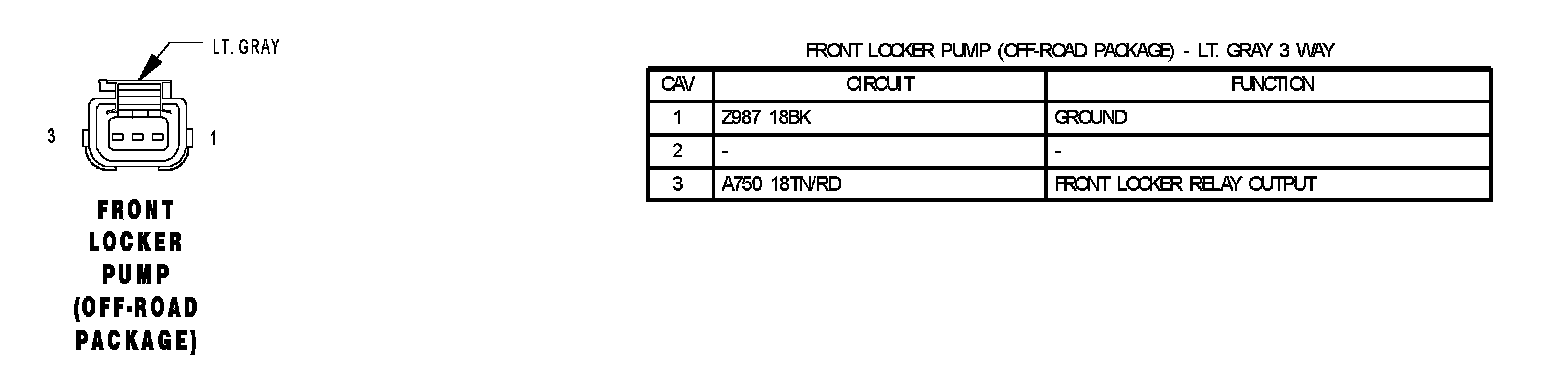

Front Locker Pump (Off-Road Package):
Rear Locker Pump (Off-Road Package):
