Home >> Jeep >> 2005 >> Wrangler L4-2.4L VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Schematic

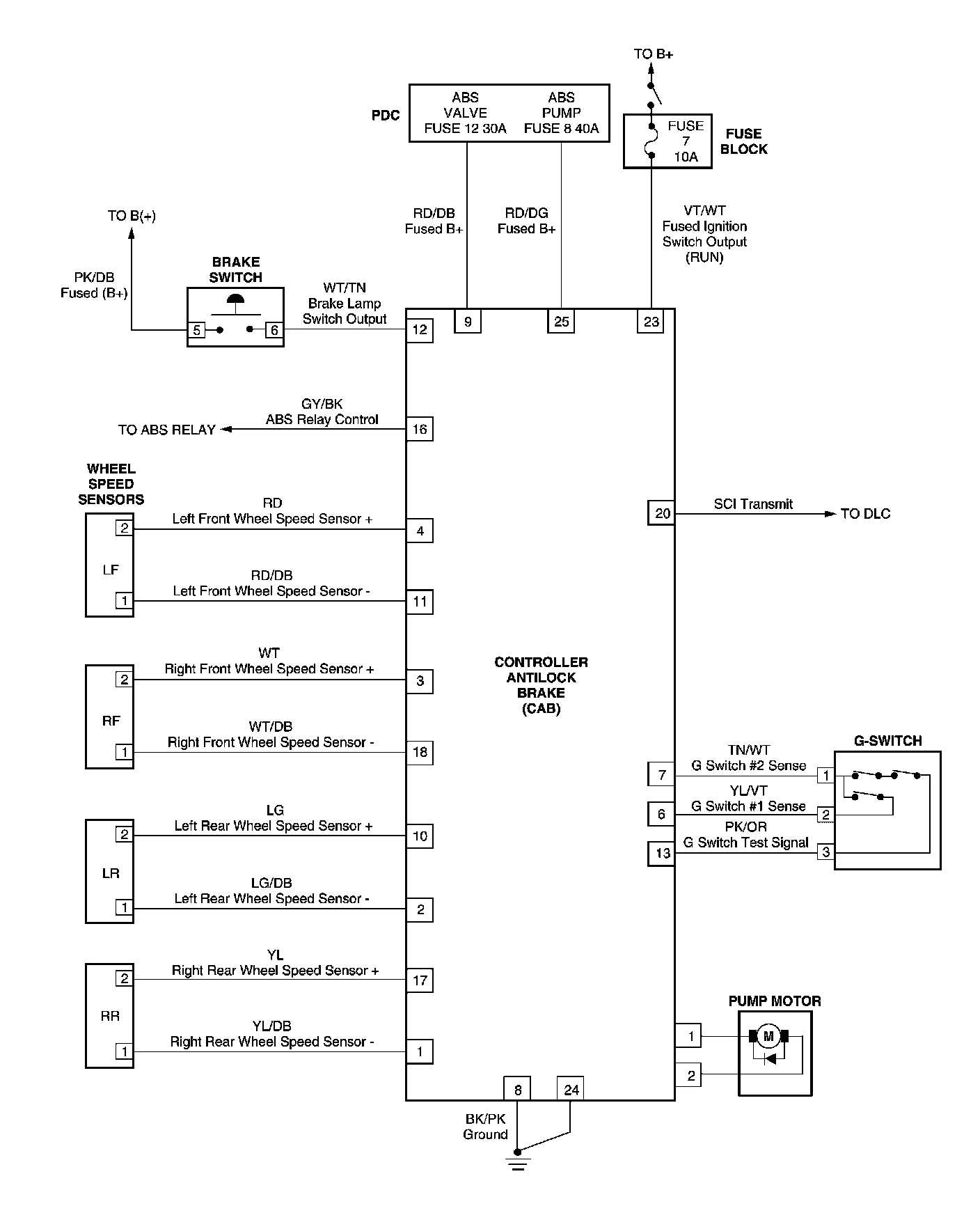

System Schematic
