Air Cleaner Housing: Service and Repair

AIR CLEANER HOUSING

REMOVAL
1. Disconnect air intake duct at front of element cover.
2. Pry up spring clips from housing cover (spring clips retain cover to housing).

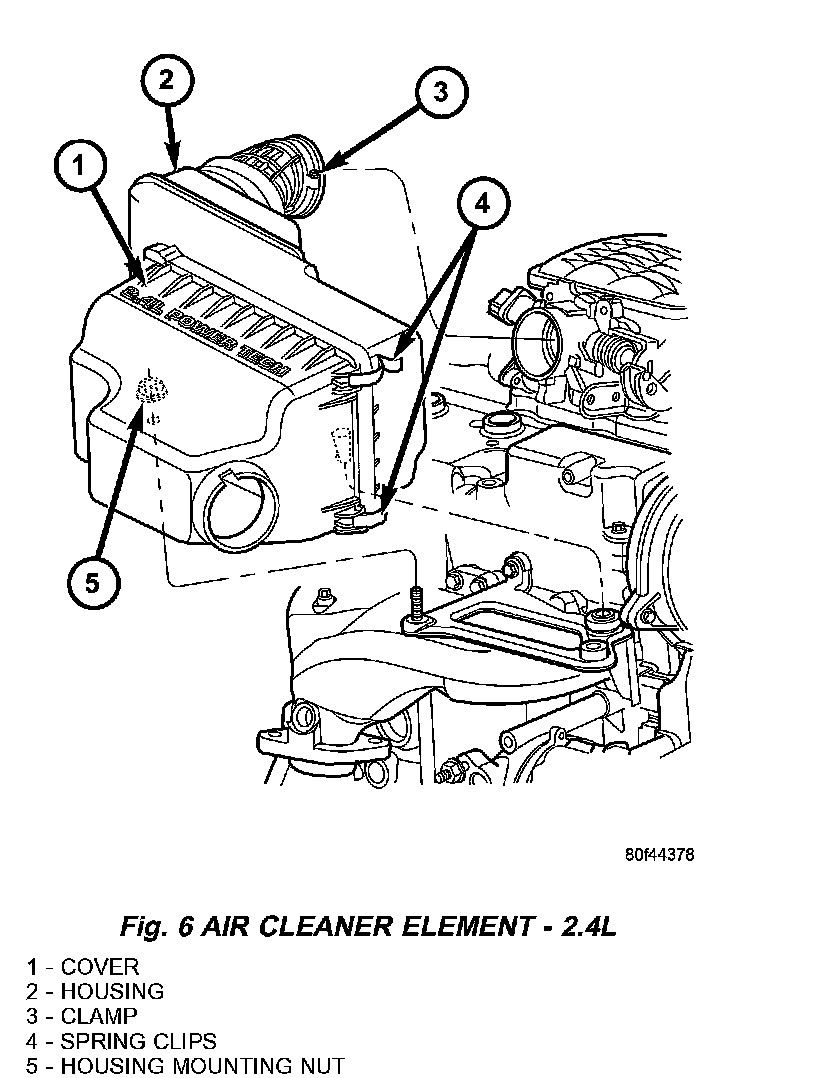

3. Release housing cover from locating tabs located on housing, and remove cover. (Fig. 6)
4. Remove air cleaner element (filter) from housing.
5. Remove vent hose.
6. Remove the housing mounting nut.
7. Remove the air cleaner housing.

INSTALLATION
1. Install the air cleaner housing mounting bracket.
2. Install the air cleaner housing and mounting nut. Tighten nut to 4.5 Nm ( 40 inch lbs.).
3. Install vent hose.
4. Install air cleaner element into the housing.
5. Position the housing cover into the locating tabs on the housing and install the cover.
6. Pry up the spring clips and lock the cover in place.
7. Install the air intake duct. (Fig. 6)
8. Install the air outlet duct.
