Leak Detection Pump: Locations

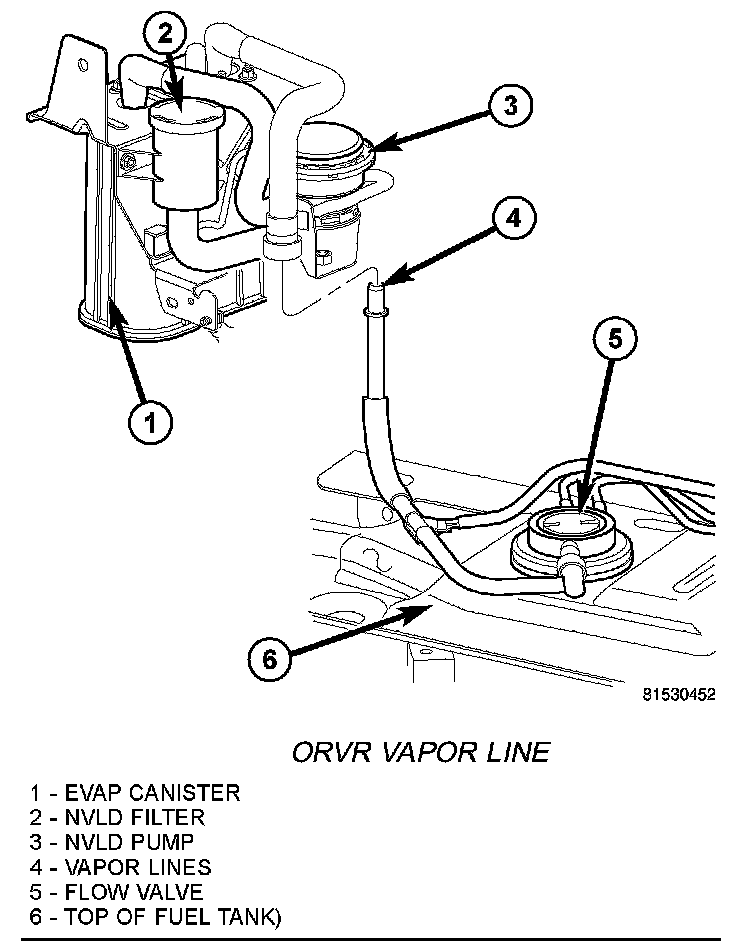

ORVR Vapor Line:




The Natural Vacuum Leak Detection (NVLD) pump (3) is located behind the right-rear wheel and system.
