Front Axle Lock Indicator Remains Flashing

Symptom:
FRONT AXLE LOCK INDICATOR REMAINS FLASHING

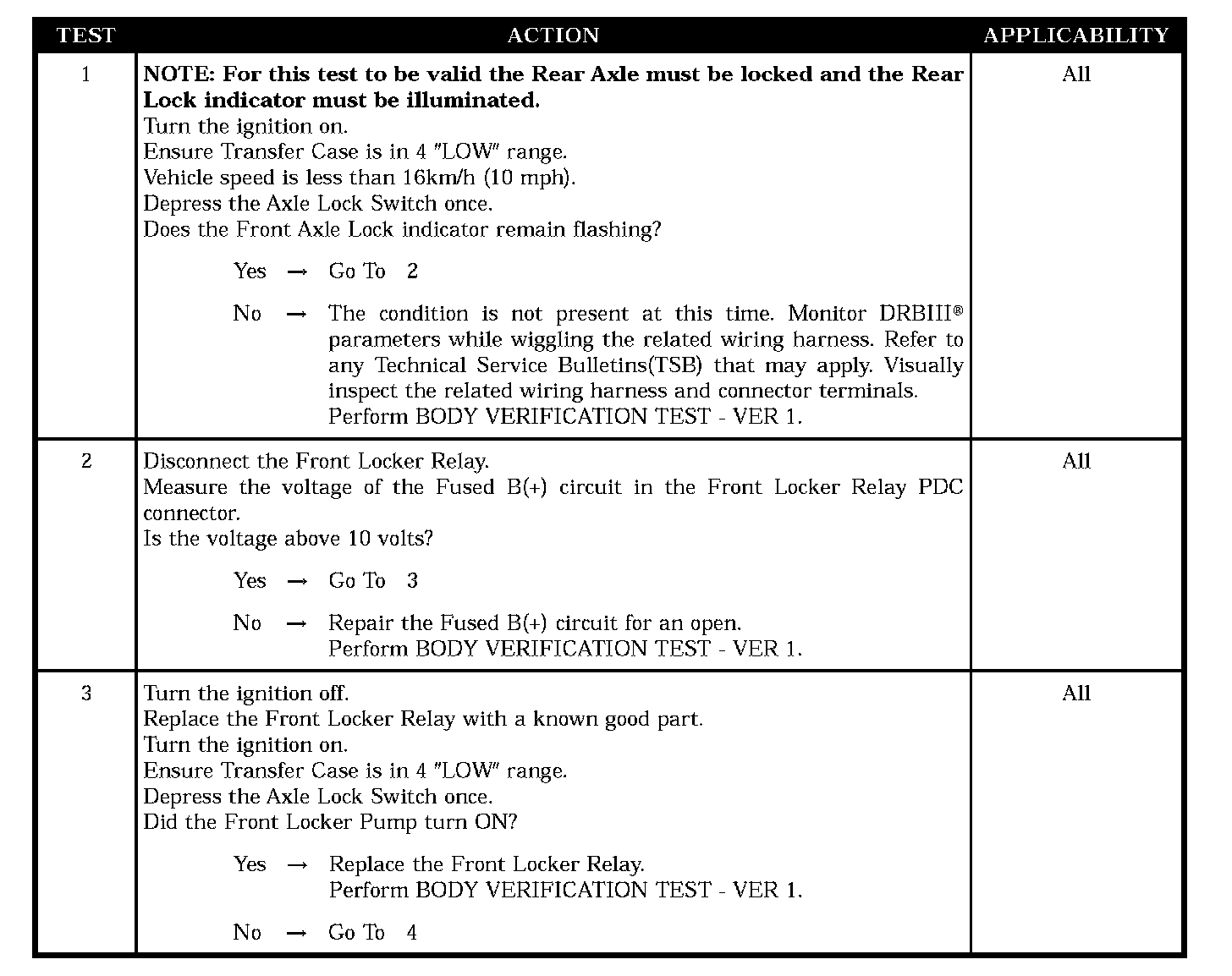

Test 1-3:

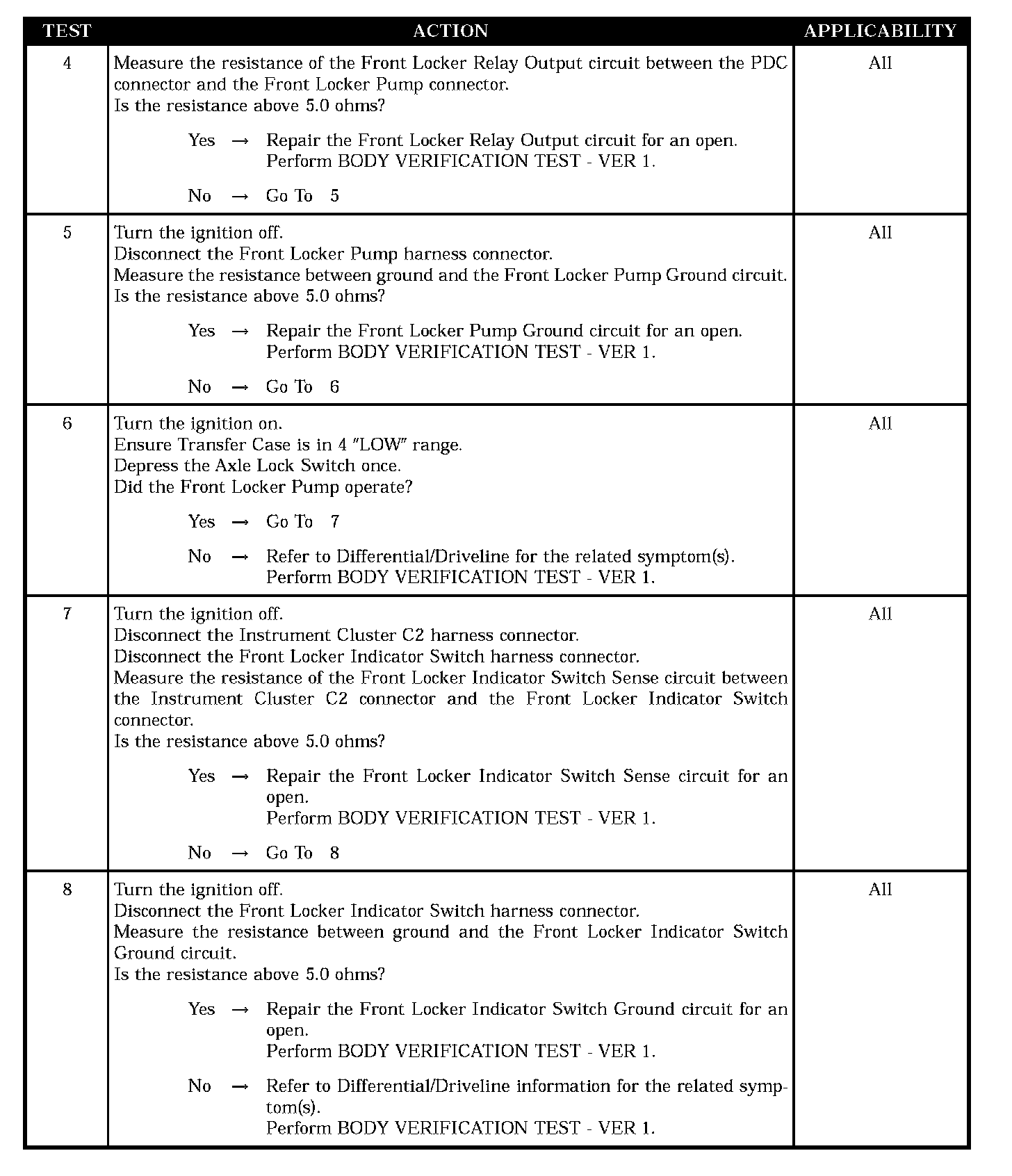

Test 4-8:

POSSIBLE CAUSES
- CHECKING OPERATION
- INTERMITTENT CONDITION
- FUSED B(+) CIRCUIT OPEN TO THE FRONT LOCKER RELAY
- FRONT LOCKER RELAY
- FRONT LOCKER RELAY OUTPUT CIRCUIT OPEN
- FRONT LOCKER PUMP GROUND CIRCUIT OPEN
- FRONT LOCKER PUMP
- FRONT LOCKER INDICATOR SWITCH SENSE CIRCUIT OPEN
- FRONT LOCKER INDICTOR SWITCH GROUND CIRCUIT OPEN
- MECHANICAL FAULT EXISTS
