Fog/Driving Lamp

Left Fog Lamp (Except Export):

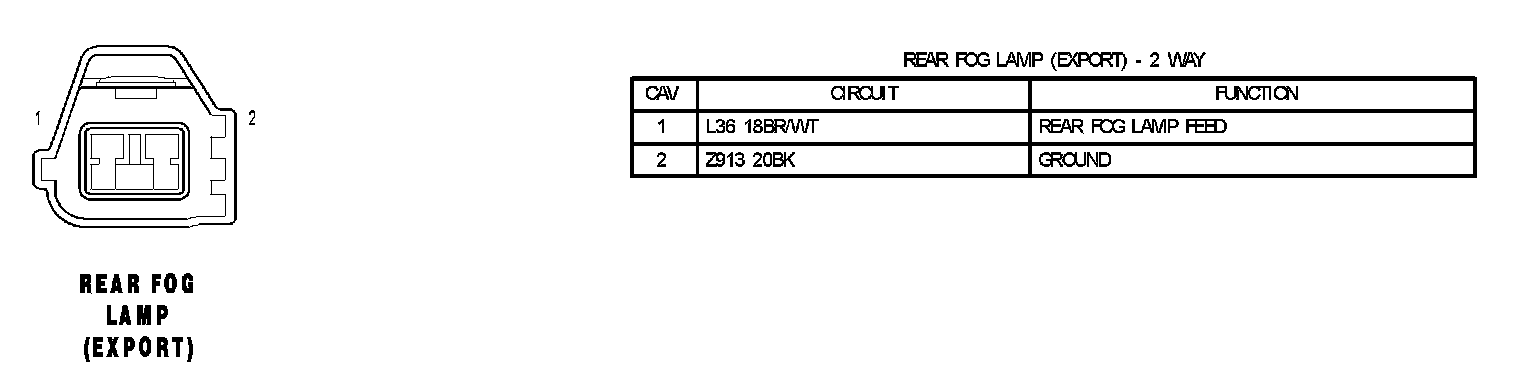

Rear Fog Lamp (Export):

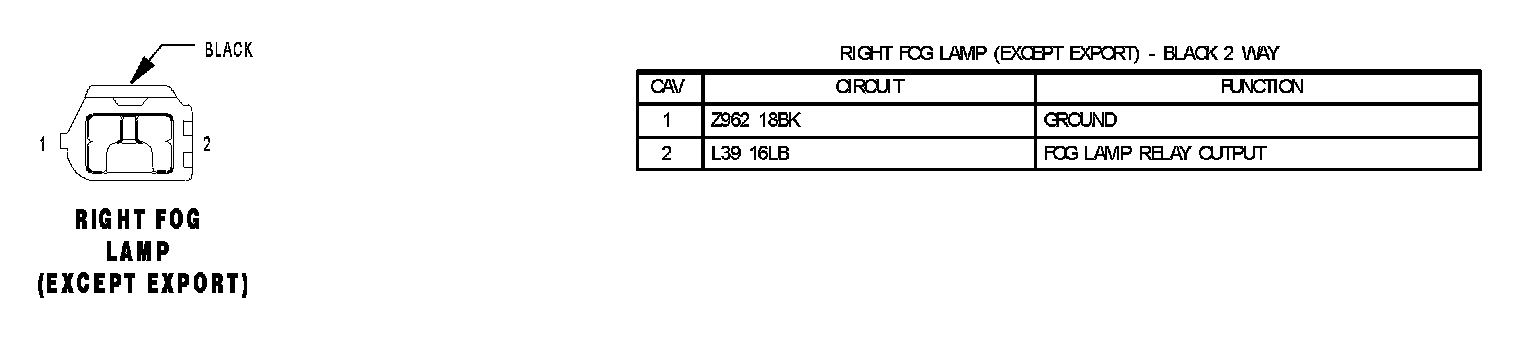

Right Fog Lamp (Except Export):
