Fuel Injector

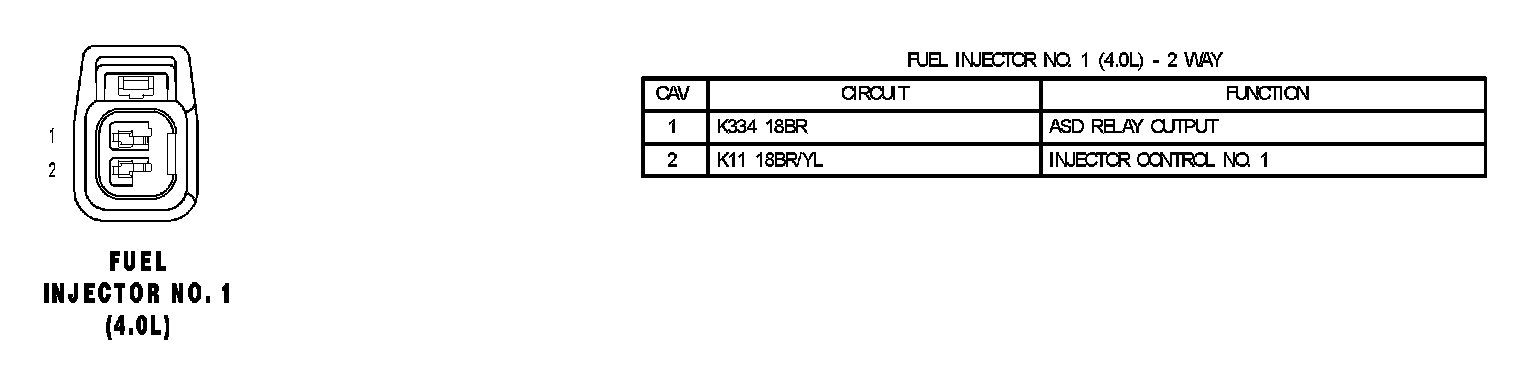

Fuel Injector No. 1 (4.0L):

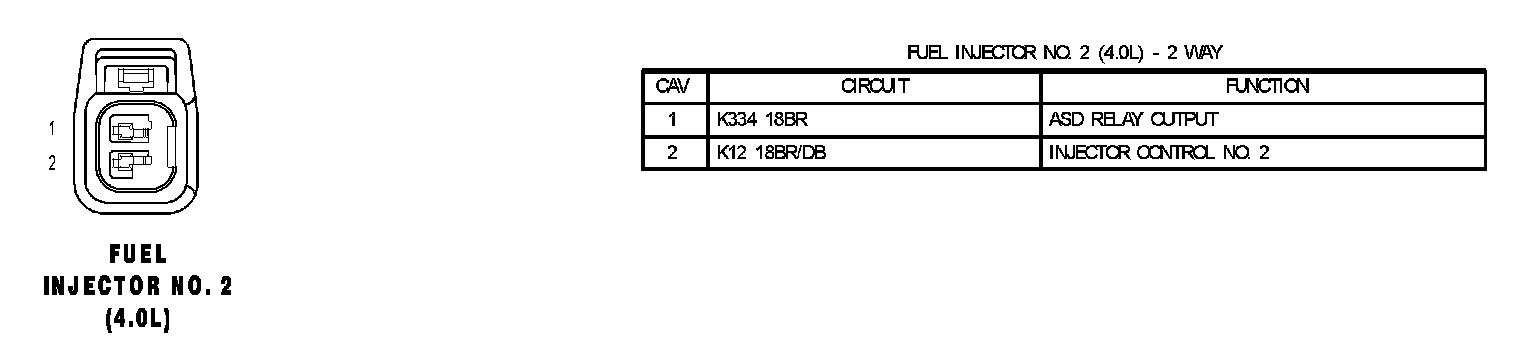

Fuel Injector No. 2 (4.0L):

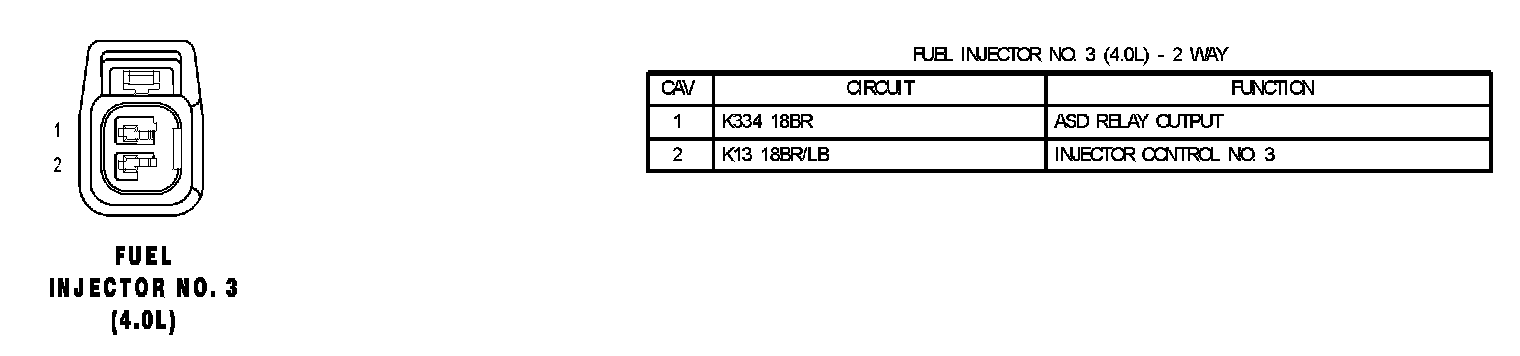

Fuel Injector No. 3 (4.0L):
Fuel Injector No. 4 (4.0L):

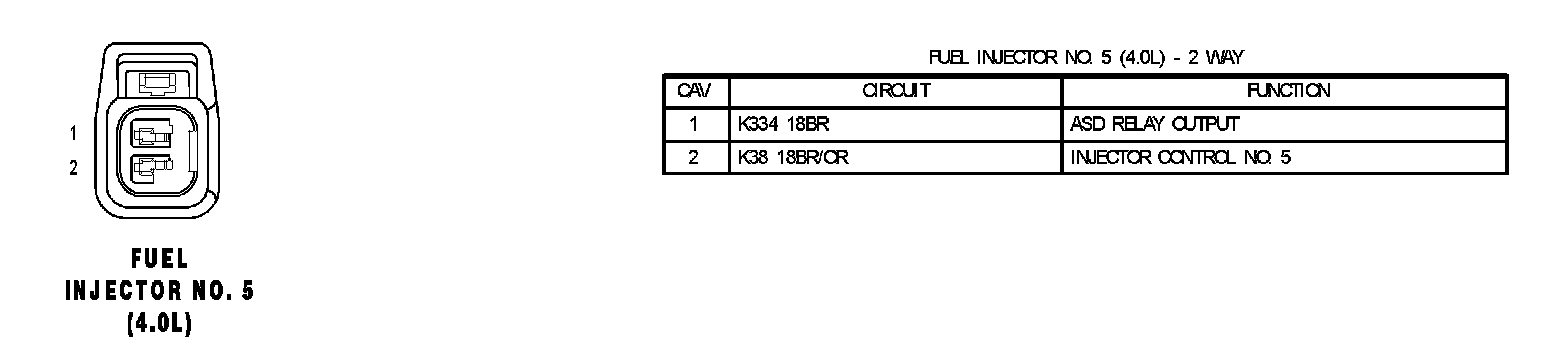

Fuel Injector No. 5 (4.0L):

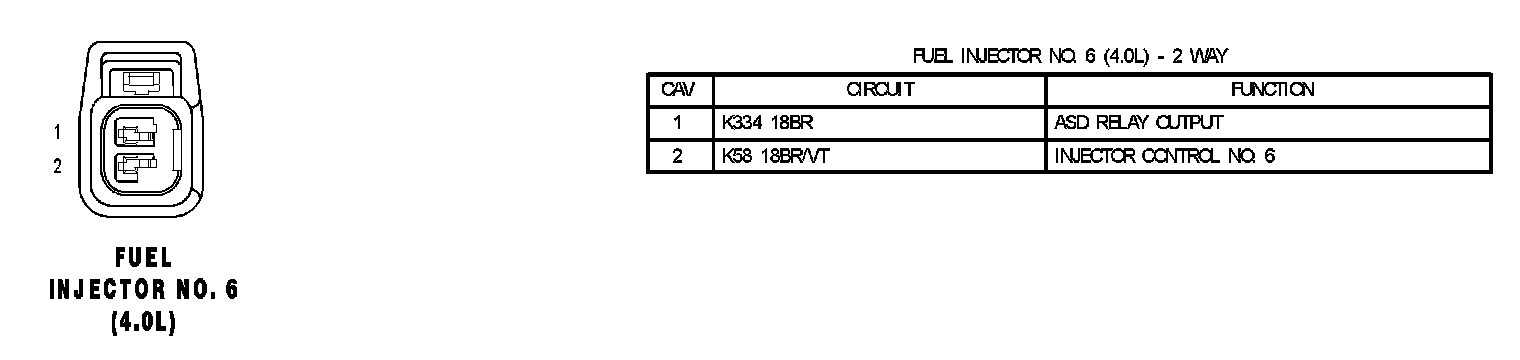

Fuel Injector No. 6 (4.0L):
