Turn Signal Lamp

Left Front Park/Turn Signal Lamp:

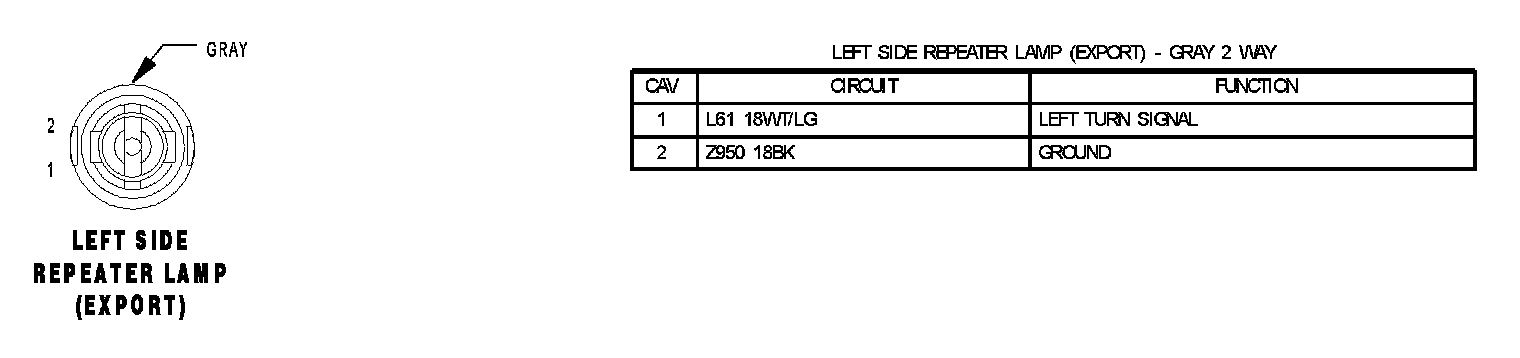

Left Side Repeater Lamp (Export):

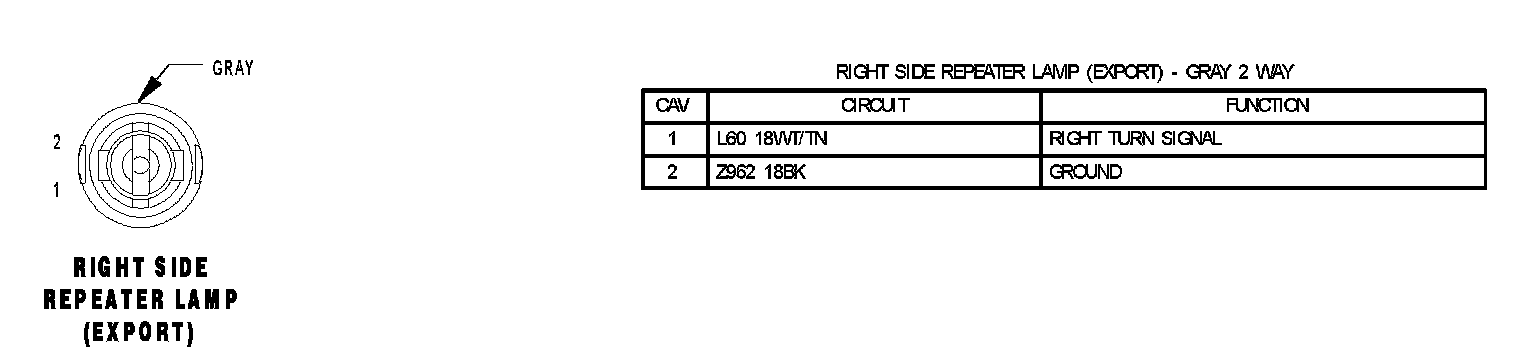

Right Side Repeater Lamp (Export):
