Component Locations

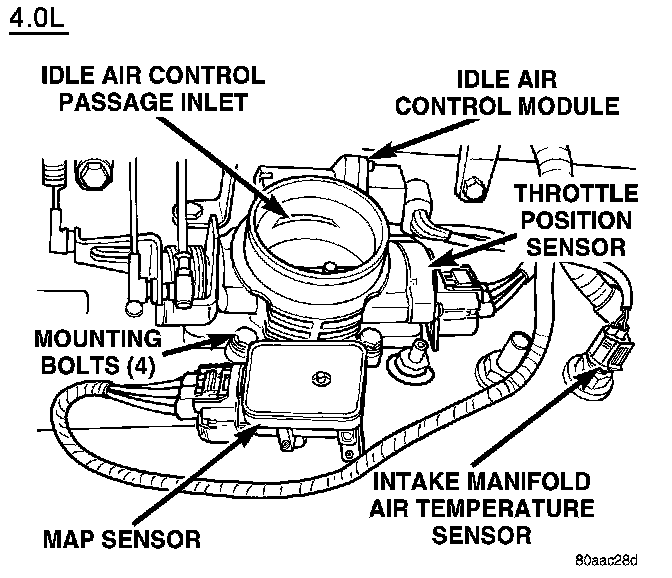

IAT Sensor - 4.0L:




4.0L:






The intake manifold air temperature (IAT) sensor is installed into intake manifold plenum near throttle body.
