Checking Park/Neutral Switch Operation

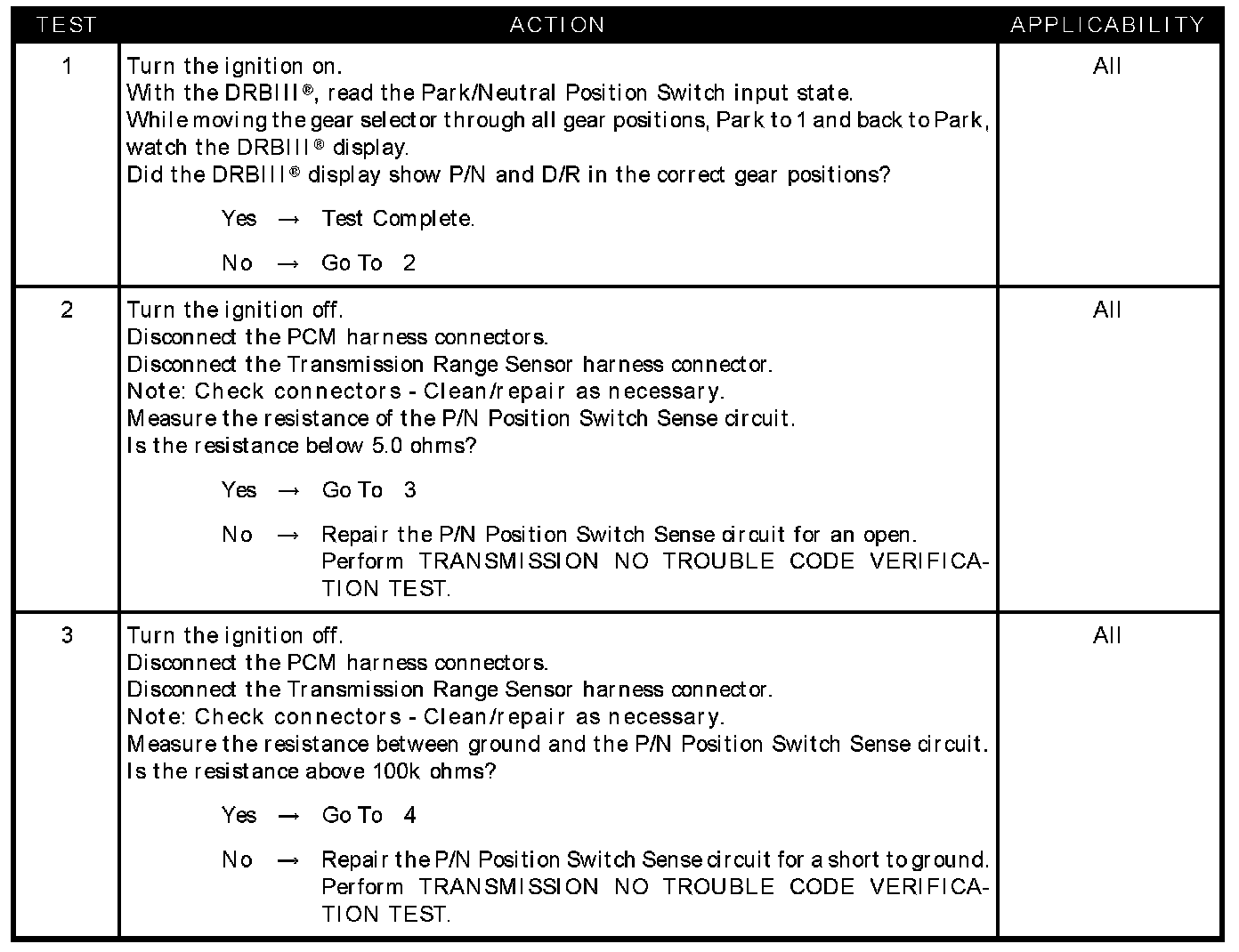

Test 1 - 3:

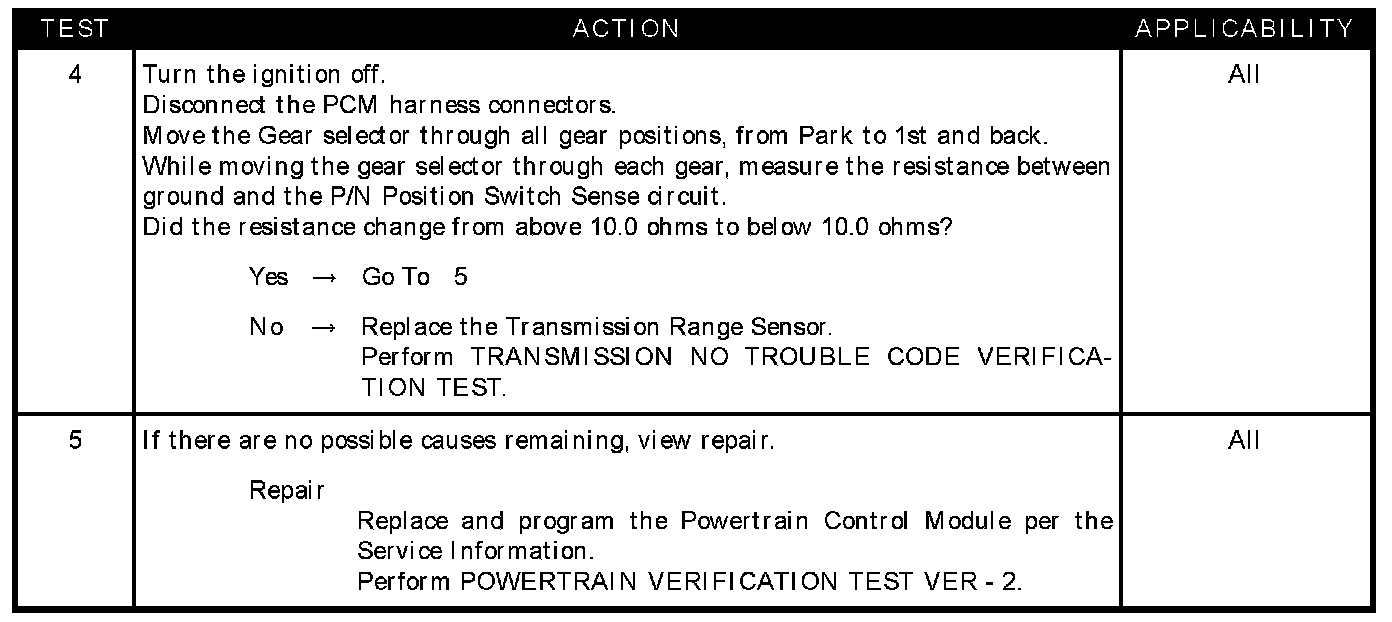

Test 4 - 5:

SYMPTOM
CHECKING PARK/NEUTRAL SWITCH OPERATION

POSSIBLE CAUSES
- P/N position switch sense circuit open
- P/N position switch sense circuit shorted to ground
- Transmission range sensor
- PCM - P/N position switch
