Cellular Phone: Service and Repair

MODULE-HANDS FREE

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove the right side cowl panel trim.

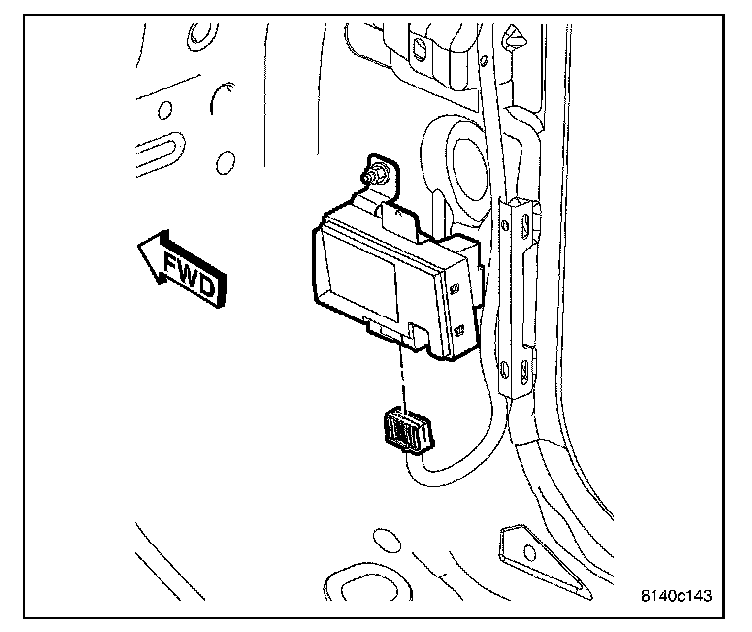

3. Disconnect the electrical harness connector.

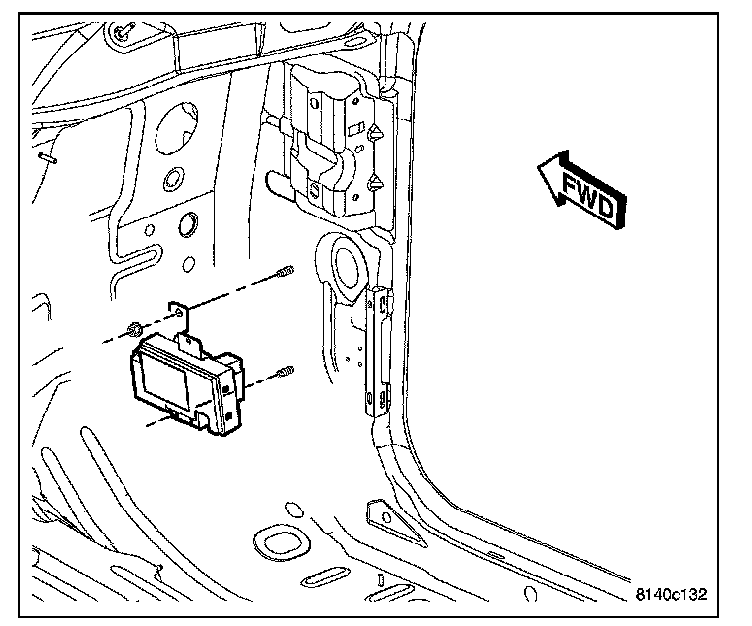

4. Remove the mounting bracket fasteners.
5. Remove the hands free module fasteners from the mounting bracket and remove module.

INSTALLATION




1. Position hands free module to the mounting bracket.
2. Install and tighten mounting fasteners.
3. Position mounting bracket and module to side cowl panel.
4. Install and tighten mounting fasteners.

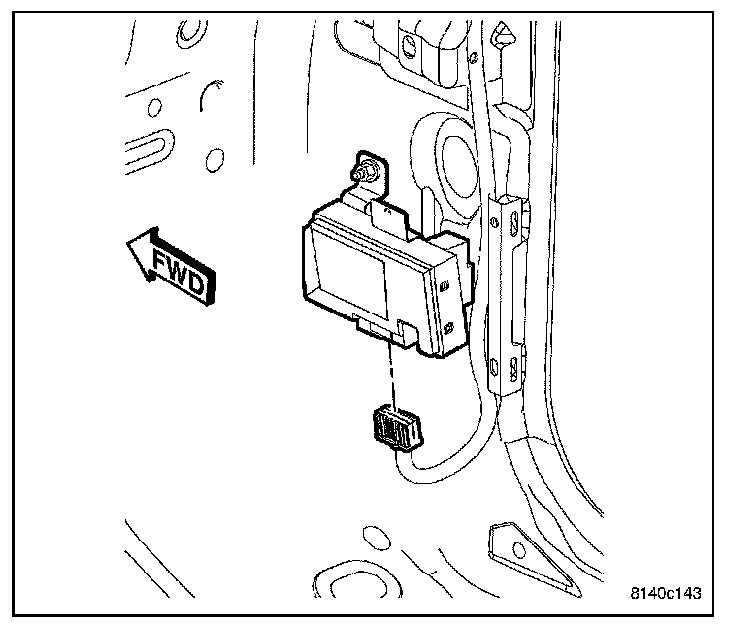

5. Connect wire harness connector.
6. Install side cowl panel trim.
7. Connect battery negative cable.
