Removal and Installation

LIFTGATE

REMOVAL






WARNING: Do not disconnect the support rod cylinders with the liftgate closed. The support rod pistons are operated by high pressure gas. This pressure could cause damage and/or personal injury if they are removed while the pistons are compressed.

1. Open and support the liftgate.
2. Using a trim stick C-4755 or equivalent, remove the upper rear headliner trim.

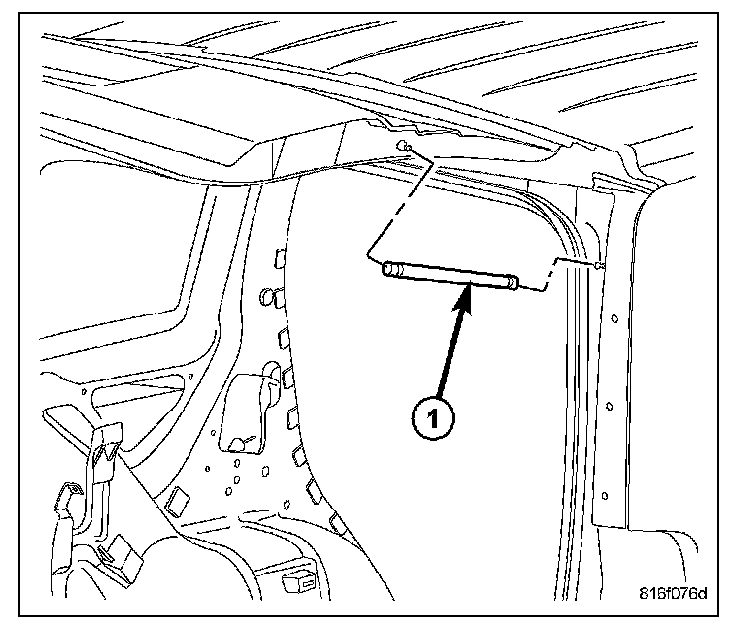

3. Remove the support struts (1) from the liftgate.




4. Disconnect the wire harnesses and the washer hose.
5. Using a grease pencil or equivalent, mark the hinge location.
6. Remove the liftgate to body fasteners (2 and 3) and remove liftgate from vehicle.

INSTALLATION






NOTE: A suitable body sealant should be used when removing or moving the hinges.

1. Position the liftgate onto the vehicle and install the six body bolts (1).
2. Tighten the bolts to 28 N.m (21 ft.lbs).




3. Install the support struts (1).




4. Check and adjust the liftgate if necessary.
5. Position the upper rear header trim and seat fully.
