Cruise Control Vacuum Reservoir: Service and Repair

RESERVOIR-VACUUM

REMOVAL

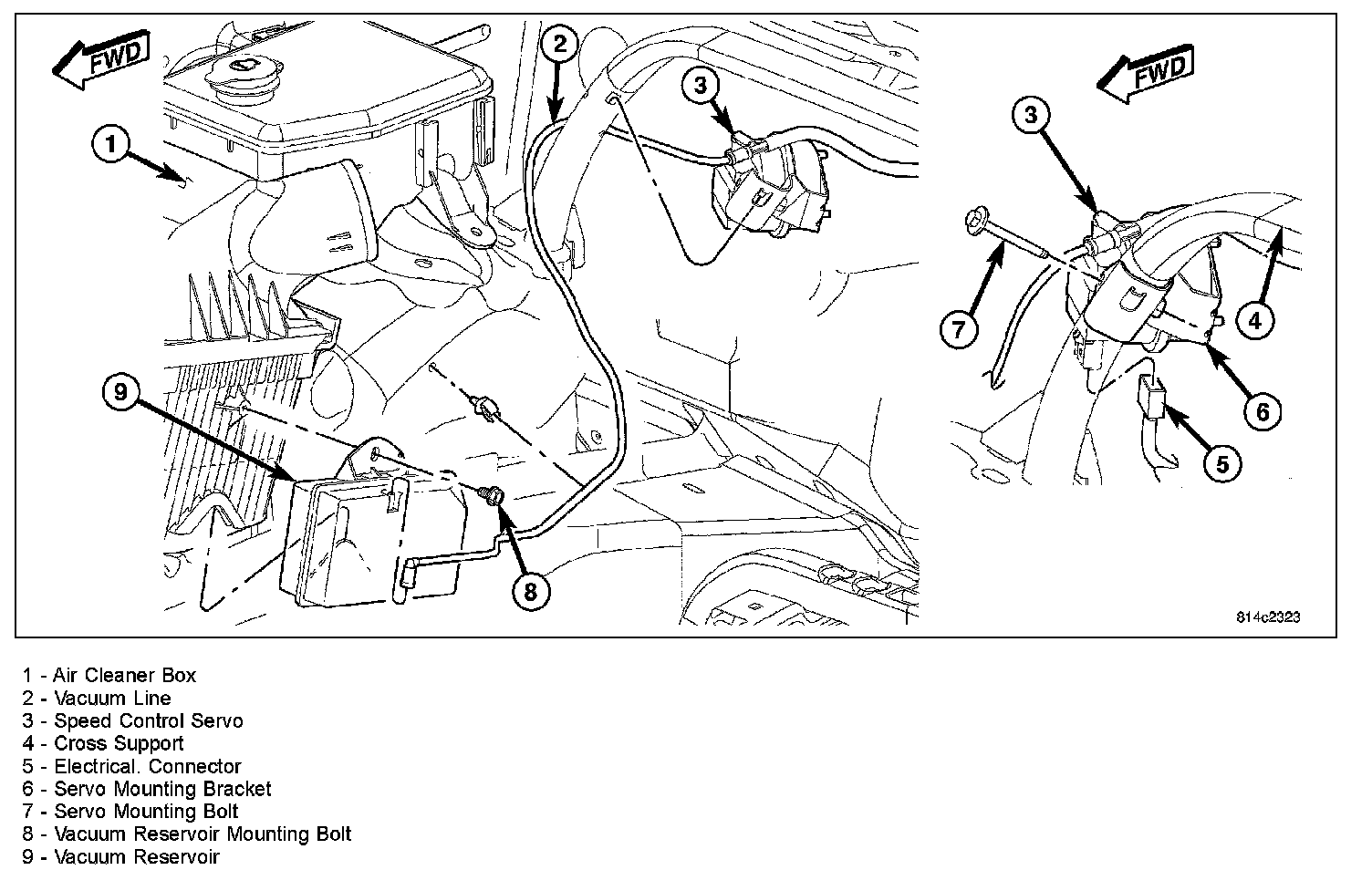

The vacuum reservoir (9) is attached to the side of the air cleaner filter housing (1).

1. Disconnect vacuum line (2) at reservoir.
2. Remove reservoir mounting bolt (8).
3. Remove reservoir (9).

INSTALLATION

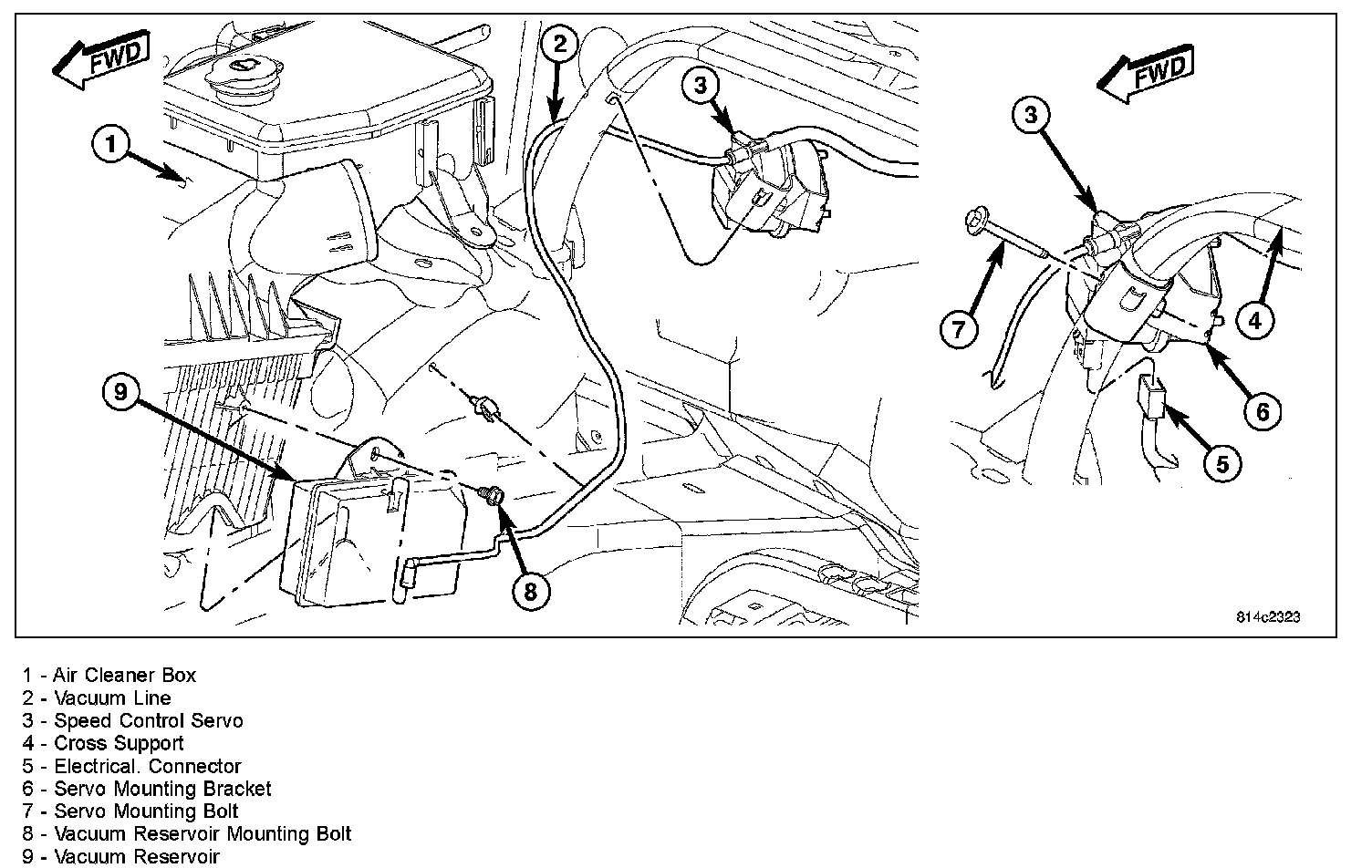

1. Position reservoir (9) to air filter housing.
2. Install and tighten mounting bolt (8).
3. Connect vacuum line (2) to reservoir fitting.
