Cylinder Head Assembly: Specifications

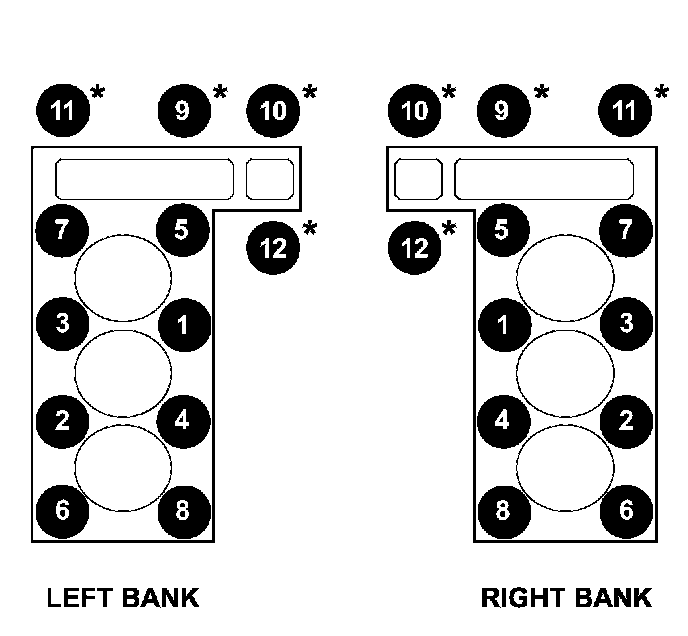

Cylinder Head Bolts





Step 1: Bolts 1-8 27 Nm (20 ft. lbs.)
Step 2: Verify that bolts 1-8, all reached 27 Nm (20 ft. lbs.) by repeating step 1 without loosening the bolts
Step 3: Bolts 1-8 90 degrees
Step 4: Bolts 1-8 90 degrees, again
Bolts 9-12 26 Nm (19 ft. lbs.)





If the threads are necked down the bolts should be replaced


CYLINDER HEAD
Gasket Thickness (Compressed) 0.7 mm (0.0276 inch)
Cylinder Head Warpage (Flatness) 0.0508 mm (0.002 inch)

Camshaft
Non - Oiled Sprocket Bolt 122 Nm (90 ft. lbs.)





Bearing Cap Bolts 11 Nm (100 inch lbs.)





Intake Manifold Bolts 12 Nm (105 inch lbs.)

Exhaust Manifold Bolts 25 Nm (18 ft. lbs.)
Starting at the center arm and working outward
