Front Floor Console Duct

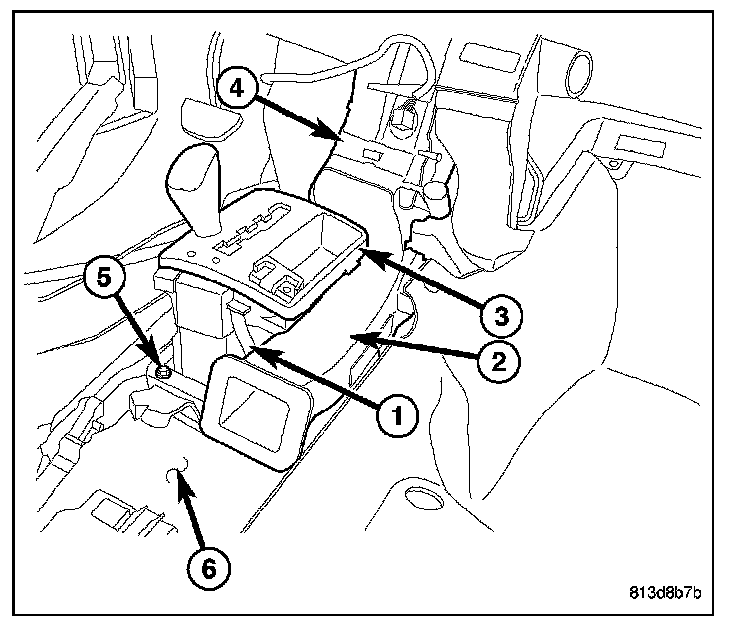

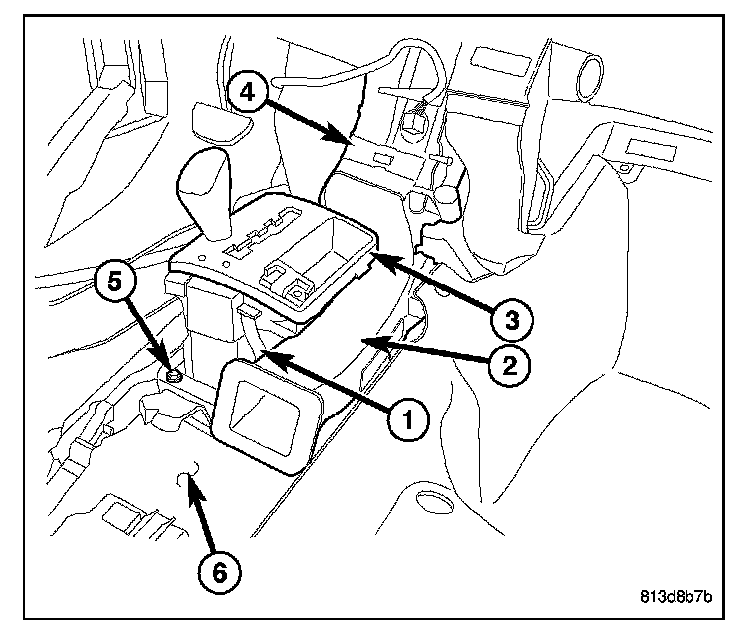

DUCT-FLOOR CONSOLENOTE: LHD model shown in illustration with instrument panel removed for clarity. RHD model similar.
REMOVAL
1. Remove the floor console from the passenger compartment.
2. Disengage the retainer (1) that secures the front console duct (2) to the gear selector (3).
3. Disconnect the front console duct from the air distribution housing (4) and remove the console duct.
INSTALLATION
1. Position the floor console duct (2) into the vehicle.
2. Connect the front console duct to the air distribution housing (4) and engage the retainer (1) to the gear selector (3).
3. Install the floor console.
