Bulb

COURTESY LAMP

BULB

WARNING: TO AVOID PERSONAL INJURY OR DEATH, ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, AIRBAG, OCCUPANT CLASSIFICATION SYSTEM, SEAT BELT TENSIONER, IMPACT SENSOR, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT.

REMOVAL




1. Disconnect and isolate the battery negative cable.

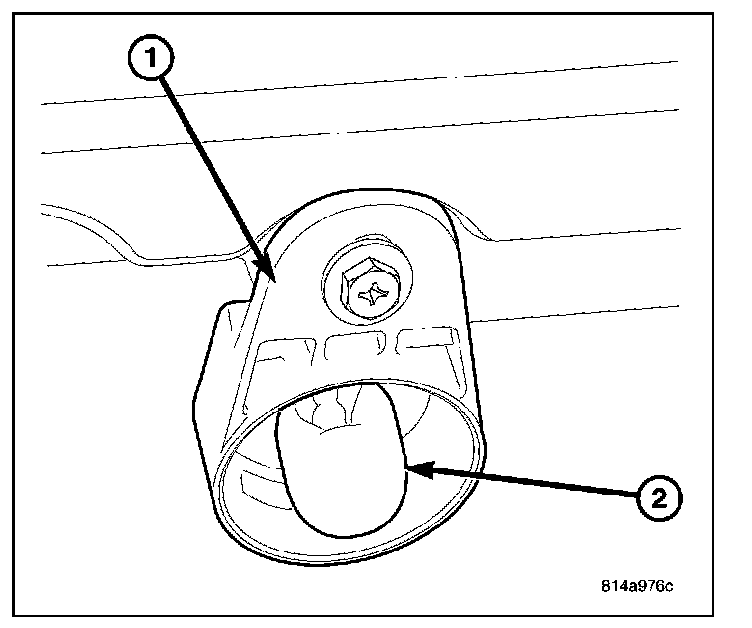

2. Support the courtesy lamp housing (1) with one hand while grasping the flange on the outer circumference of the lens (3) with the other hand, then pull the lens straight down to unsnap it from the housing.




3. Pull the base of the bulb (2) straight out of the socket in the courtesy lamp housing (1).

INSTALLATION

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket and/or the lamp wiring.




1. Align the base of the bulb (2) with the socket in the courtesy lamp housing (1).
2. Push the bulb straight into the socket until the base is firmly seated.




3. Align the courtesy lamp lens (3) with the lamp housing (1).
4. Support the courtesy lamp housing with one hand while firmly and evenly pushing the lens into the housing with the other hand, until the lens snaps into place.
5. Reconnect the battery negative cable.
