Steering Column Cover: Service and Repair

COVER-STEERING COLUMN OPENING

REMOVAL




1. Disconnect and isolate battery negative cable.

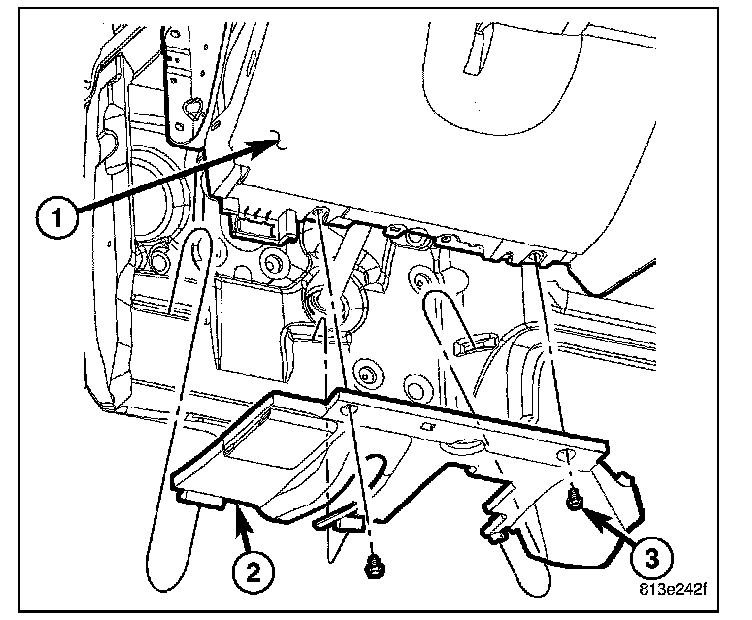

2. Remove the bolts (3) and remove the drivers side hush panel (2).

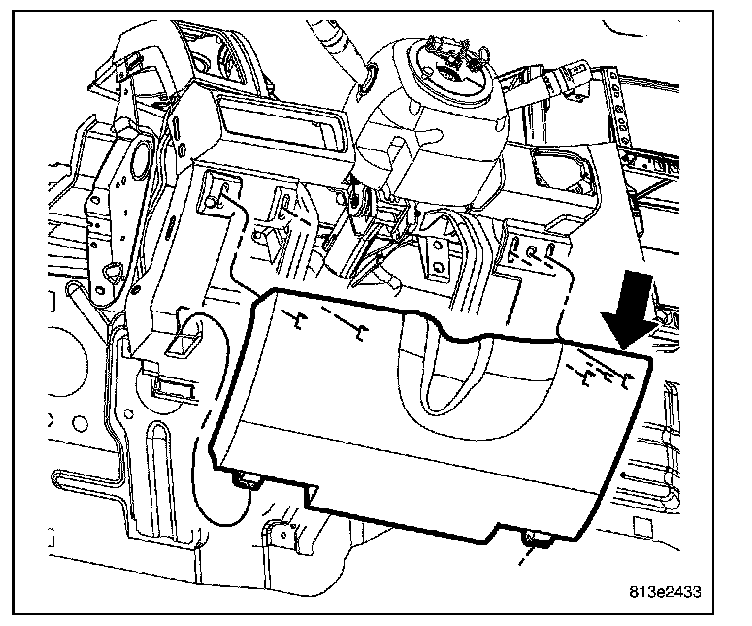

3. Using a trim stick C-4755 or equivalent, separate the upper clips. and rotate the cover down and release the lower hinges at the bottom and remove the opening cover.

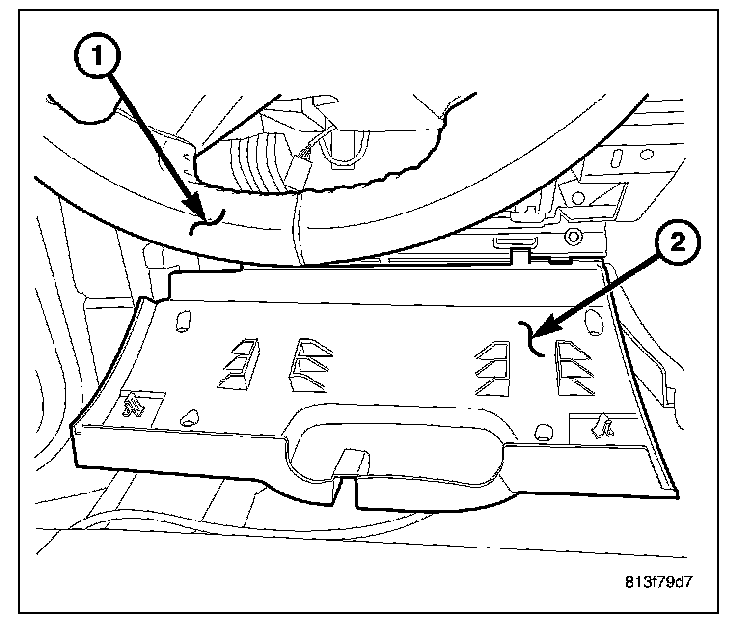

4. Rotate cover down to carpet and grasp part at its lower edge and pull up and rearward to snap off the lower hinge pins.

INSTALLATION

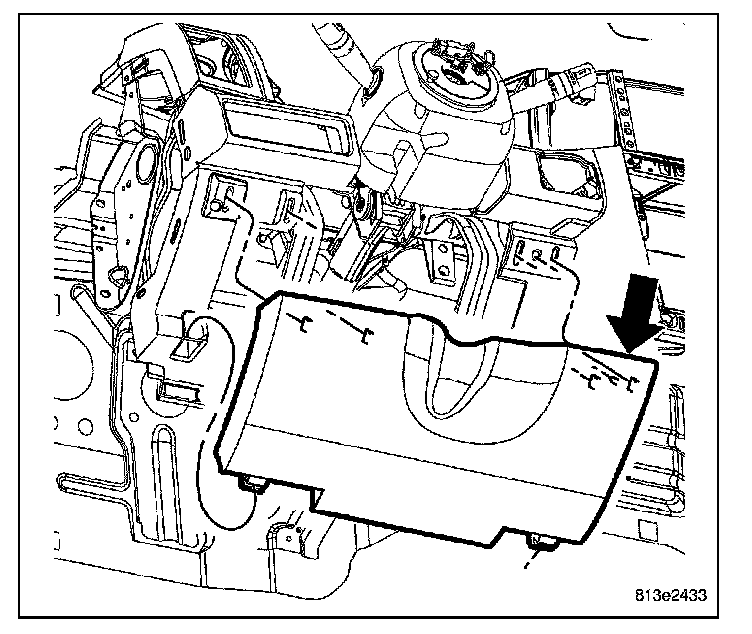

1. Snap the lower steering column opening cover hinges over the pivots and rotate up.




2. Seat the upper fastener clips fully.

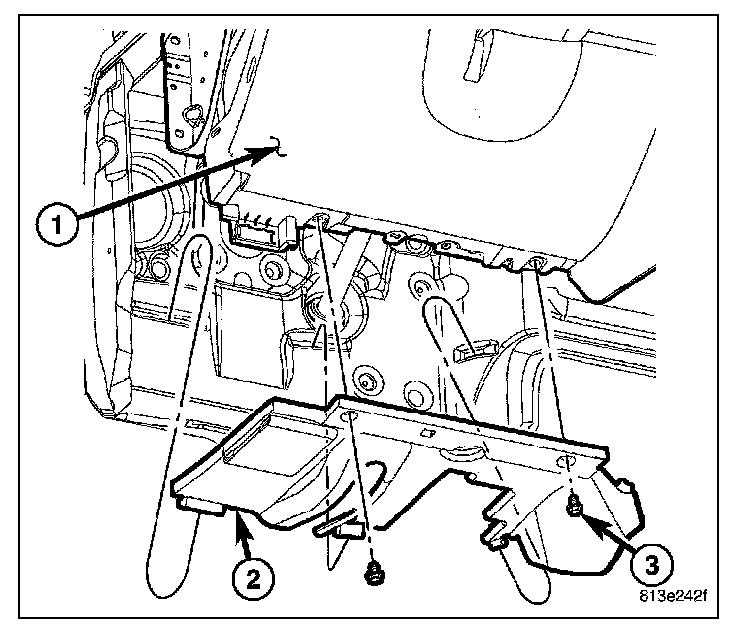

3. Install the tabs at the front of the hush panel (2) into the slots as shown.
4. Install the screws (3).
