Front Suspension

STABILIZER LINK

REMOVAL





1. Raise and support the vehicle.
2. Remove the tire and wheel assembly

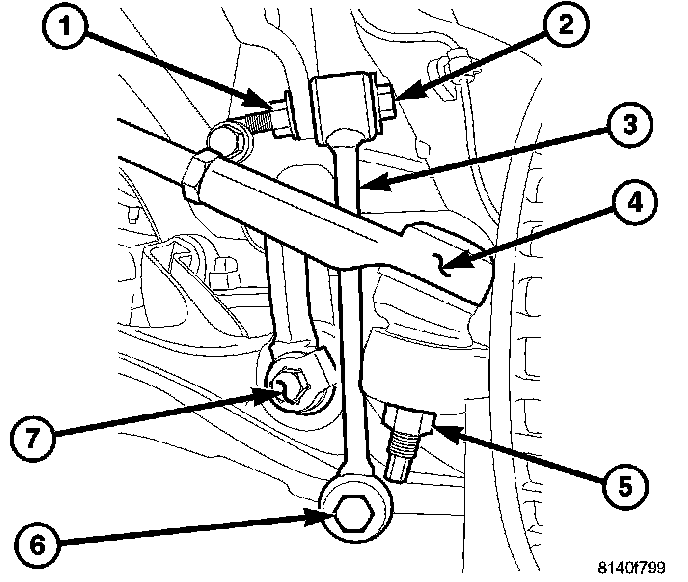

3. Remove the upper link bolt/nut (1&2).
4. Remove the lower link bolt (6).
5. Remove the stabilizer link (3).

INSTALLATION





1. Install the stabilizer link (3) to the vehicle.
2. Install the lower link bolt (6) and tighten to 115 Nm (85 ft. lbs.).
3. Install the upper link bolt/nut (1&2) and tighten to 108 Nm (80 ft. lbs.).
4. Install the tire and wheel assembly
5. Lower the vehicle.
