B165D

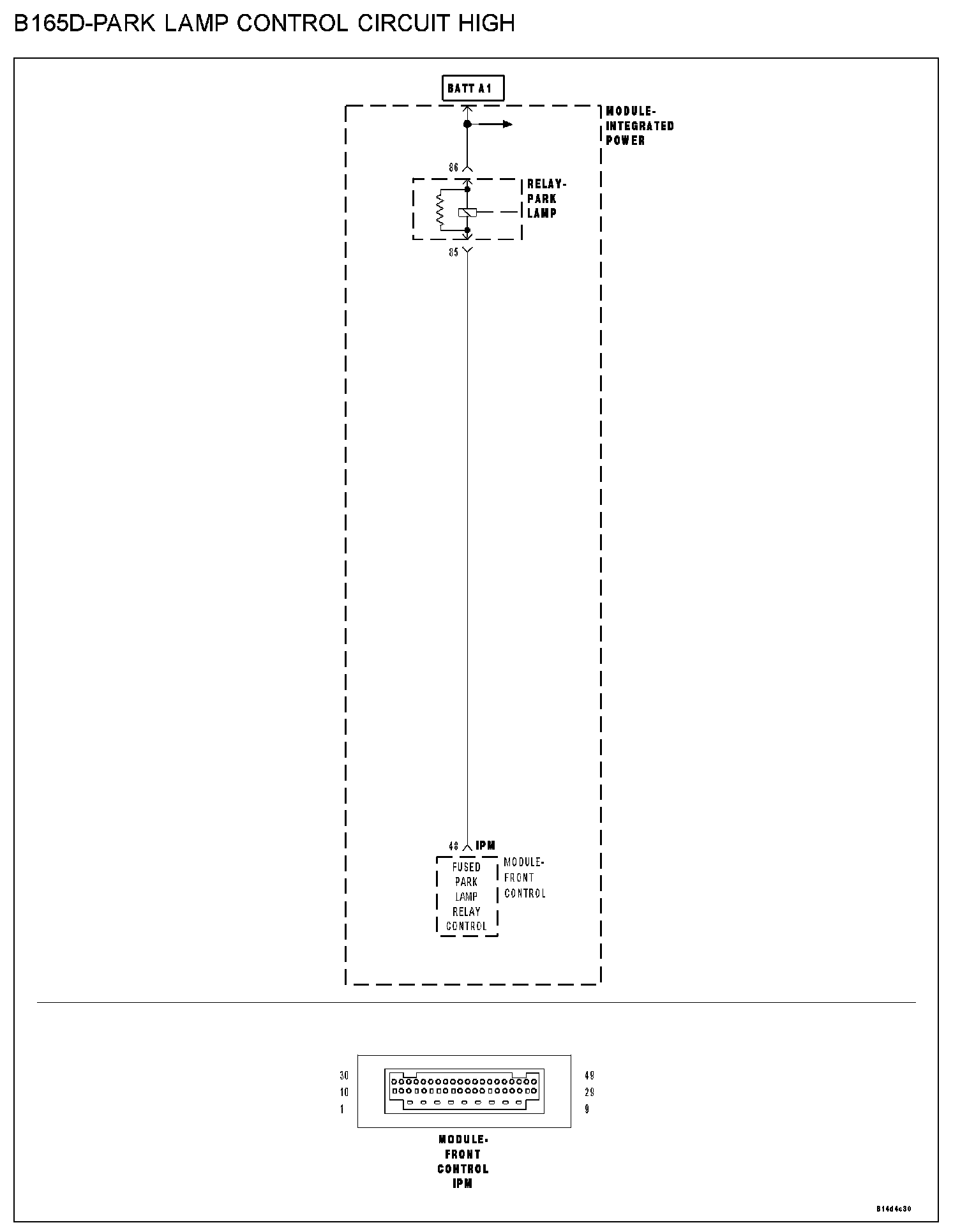

B165D-PARK LAMP CONTROL CIRCUIT HIGHB165D-Park Lamp Control Circuit High:
WHEN MONITORED
With the Park Lamps activated.
SET CONDITION
When the FCM detects a HIGH condition.
POSSIBLE CAUSES
- Front control module
DIAGNOSTIC TEST
1. INTEGRATED POWER MODULE
Turn the ignition off.
Replace the Park Lamp relay with and known good relay.
With the Scan Tool, clear all IPM DTC's.
Turn the Park Lamps ON then OFF.
With the Scan Tool, read the DTC's.
Q: Does the Scan Tool read: B165D-PARK LAMP CONTROL CIRCUIT HIGH?
YES: Replace the Integrated Power Module.
Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Test complete.
Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
