B1D0C(DDM), B1D15(PDM) - MIRROR VERTICAL POSITION SENSOR INPUT CIRCUIT LOW


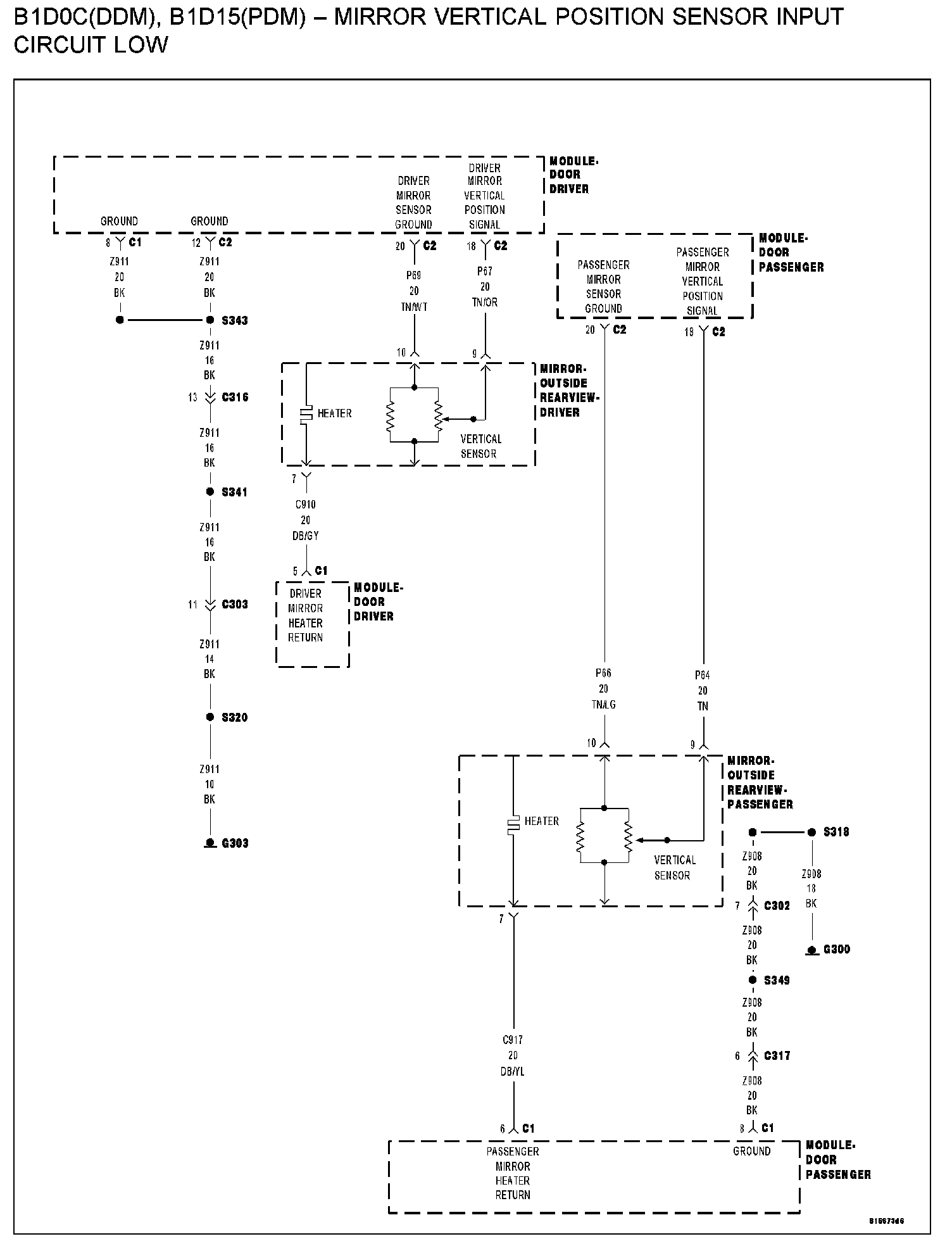

B1D0C(DDM), B1D15(PDM) - Mirror Vertical Position Sensor Input Circuit Low:





WHEN MONITORED
Continuously

SET CONDITION
The (P67) Driver Mirror Vertical Position Signal circuit supplies input to the Driver Door Module. DTC B1D0C will set if the input value is less than the known good (stored) value for more than 60 ms. The (P64) Passenger Mirror Vertical Position Signal circuit supplies input to the Passenger Door Module. DTC B1D15 will set if the input value is less than the known good (stored) value for more than 60 ms.

POSSIBLE CAUSES
- FOR THE DRIVER MEMORY MIRROR SYSTEM:
- (P67) driver mirror vertical position signal circuit shorted to ground
- (P67) driver mirror vertical position signal circuit shorted to (Z911) ground circuit
- (P67) driver mirror vertical position signal circuit shorted to (P69) driver mirror sensor ground circuit
- (P67) driver mirror vertical position signal circuit shorted to (C910) driver mirror heater ground circuit
- Driver outside rearview mirror shorted
- Driver door module

- FOR THE PASSENGER MEMORY MIRROR SYSTEM:
- (P64) passenger mirror vertical position signal circuit shorted to ground
- (P64) passenger mirror vertical position signal circuit shorted to (P66) passenger mirror sensor ground circuit
- (P64) passenger mirror vertical position signal circuit shorted to (C917) passenger mirror heater ground circuit
- Passenger outside rearview mirror shorted
- Passenger door module

NOTE: This procedure addresses the Driver Memory Mirror system's circuits and components and the Passenger
Memory Mirror system's circuits and components. Select only that which applies to the system you are diagnosing.

DIAGNOSTIC TEST

1. TEST FOR INTERMITTENT CONDITION
Turn the ignition on.
With the scan tool, record and erase DTCs.
Operate the Mirror Switch in all directions several times.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTCs.

Q: Does the scan tool display: B1D0C or B1D15 MIRROR VERTICAL POSITION SENSOR INPUT CIRCUIT LOW?

YES: Go To 2
NO: The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

2. TEST FOR A SHORTED OUTSIDE REARVIEW MIRROR




For the Driver Memory Mirror System, proceed as follows:
- Turn the ignition off.

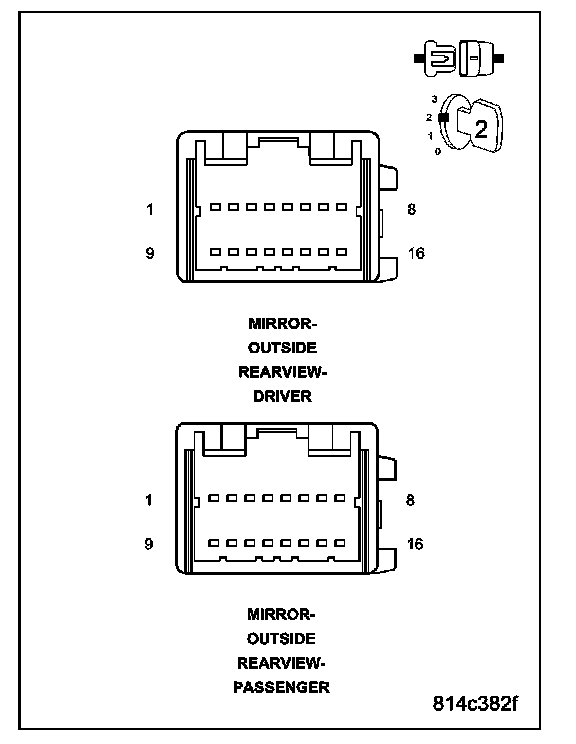

- Disconnect the Driver Outside Rearview Mirror connector.
- Turn the ignition on.
- With the scan tool, erase DTCs.
- perate the Mirror Switch in all directions several times.
- Cycle the ignition from on to off 3 times.
- Turn the ignition on.
- With the scan tool, read DTCs.

For the Passenger Memory Mirror System, proceed as follows:
- Turn the ignition off.
- Disconnect the Passenger Outside Rearview Mirror connector.
- Turn the ignition on.
- With the scan tool, erase DTCs.
- Operate the Mirror Switch in all directions several times.
- Cycle the ignition from on to off 3 times.
- Turn the ignition on.
- With the scan tool, read DTCs.

Q: Does the scan tool display: B1D0C or B1D15 MIRROR VERTICAL POSITION SENSOR INPUT CIRCUIT LOW?

YES: Go To 3
NO: Replace the Outside Rearview Mirror.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

3. CHECK THE (P67) DRIVER MIRROR VERTICAL POSITION SIGNAL CIRCUIT OR THE (P64) PASSENGER MIRROR VERTICAL POSITION SIGNAL CIRCUIT FOR A SHORT TO GROUND




For the Driver Memory Mirror System, proceed as follows:
- Turn the ignition off.
- Disconnect the Driver Door Module C2 connector.

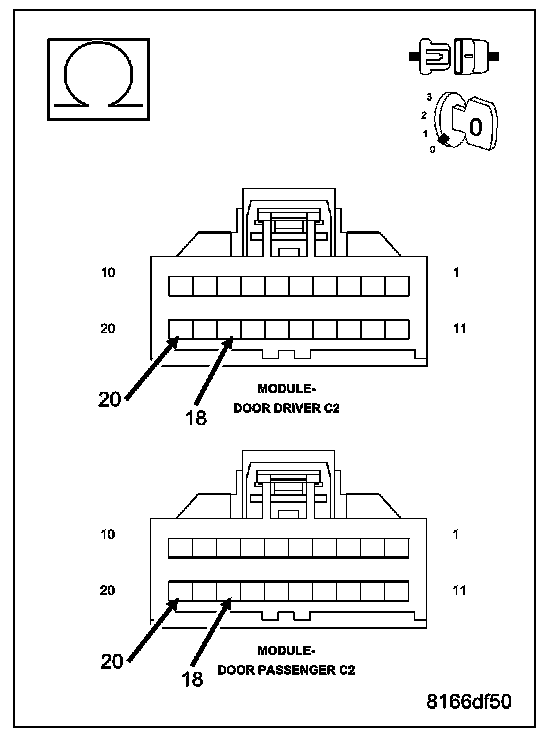

- Measure the resistance between ground and the (P67) Driver Mirror Vertical Position Signal circuit in the Driver Door Module C2 connector.

For the Passenger Memory Mirror System, proceed as follows:
- Turn the ignition off.
- Disconnect the Passenger Door Module C2 connector.
- Measure the resistance between ground and the (P64) Passenger Mirror Vertical Position Signal circuit in the Passenger Door Module C2 connector.

Q: Is the resistance below 10000.0 ohms?

Yes, Driver Mirror
Repair the (P67) Driver Mirror Vertical Position Signal circuit for a short to ground.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

Yes, Passenger Mirror
Repair the (P64) Passenger Mirror Vertical Position Signal circuit for a short to ground.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

NO: Go To 4

4. CHECK THE (P67) DRIVER MIRROR VERTICAL POSITION SIGNAL CIRCUIT FOR A SHORT TO THE (Z911) GROUND CIRCUIT




For the Driver Memory Mirror System, proceed as follows:

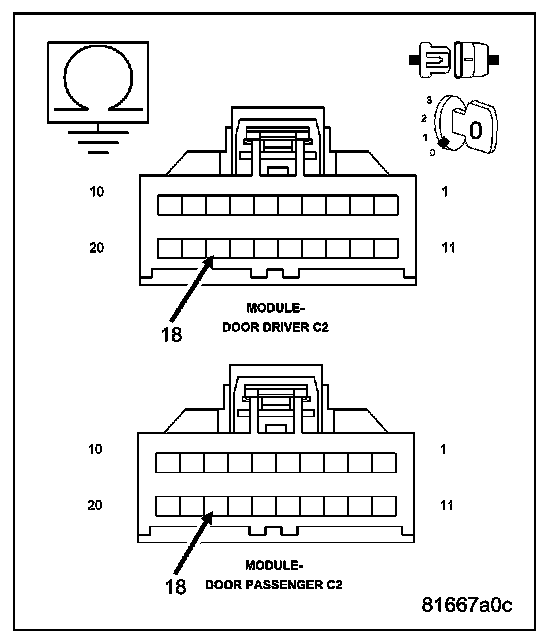

- Measure the resistance between the (P67) Driver Mirror Vertical Position Signal circuit and the (Z911) Ground circuit in the Driver Door Module C2 connector.

For the Passenger Memory Mirror System, Go To 5

Q: Is the resistance below 10000.0 ohms?

YES: Repair the (P67) Driver Mirror Vertical Position Signal circuit for a short to the (Z911) Ground circuit.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 5

5. CHECK THE (P67) DRIVER MIRROR VERTICAL POSITION SIGNAL CIRCUIT FOR A SHORT TO THE (P69) DRIVER MIRROR SENSOR GROUND CIRCUIT OR THE (P64) PASSENGER MIRROR VERTICAL POSITION SIGNAL CIRCUIT FOR A SHORT TO THE (P66) PASSENGER MIRROR SENSOR GROUND CIRCUIT




For the Driver Memory Mirror System, proceed as follows:

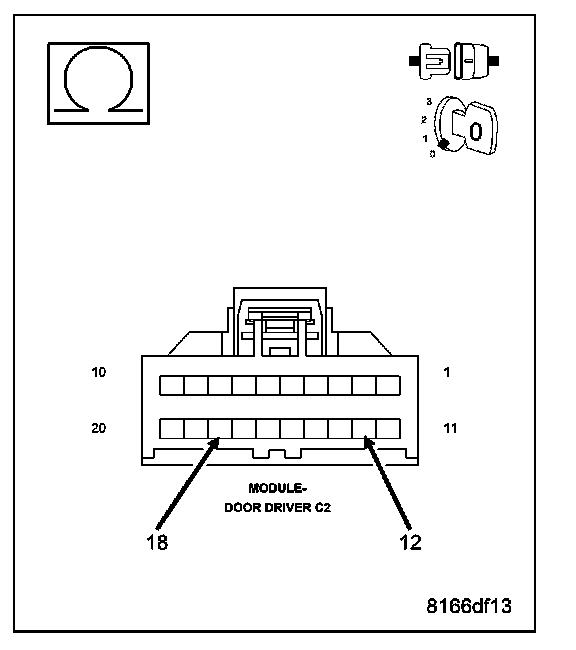

- Measure the resistance between the (P67) Driver Mirror Vertical Position Signal circuit and the (P69) Driver Mirror Sensor Ground circuit in the Driver Door Module C2 connector.

For the Passenger Memory Mirror System, proceed as follows:
- Measure the resistance between the (P64) Passenger Mirror Vertical Position Signal circuit and the (P66) Passenger Mirror Sensor Ground circuit in the Passenger Door Module C2 connector.

Q: Is the resistance below 10000.0 ohms?

Yes, Driver Mirror
Repair the (P67) Driver Mirror Vertical Position Signal circuit for a short to the (P69) Driver Mirror Sensor Ground circuit.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

Yes, Passenger Mirror
Repair the (P64) Passenger Mirror Vertical Position Signal circuit for a short to the (P66) Passenger Mirror Sensor Ground circuit.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
NO: Go To 6

6. CHECK THE (P67) DRIVER MIRROR VERTICAL POSITION SIGNAL CIRCUIT FOR A SHORT TO THE (C910) DRIVER MIRROR HEATER GROUND CIRCUIT OR THE (P64) PASSENGER MIRROR VERTICAL POSITION SIGNAL CIRCUIT FOR A SHORT TO THE (C917) PASSENGER MIRROR HEATER GROUND CIRCUIT




For the Driver Memory Mirror System, proceed as follows:
- Measure the resistance between the (P67) Driver Mirror Vertical Position Signal circuit and the (C910) Driver Mirror Heater Ground circuit in the Driver Door Module C2 connector.

For the Passenger Memory Mirror System, proceed as follows:
- Measure the resistance between the (P64) Passenger Mirror Vertical Position Signal circuit and the (C917) Passenger Mirror Heater Ground circuit in the Passenger Door Module C2 connector.

Q: Is the resistance below 10000.0 ohms?

Yes, Driver Mirror
Repair the (P67) Driver Mirror Vertical Position Signal circuit for a short to the (C910) Driver Mirror Heater Ground circuit.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

Yes, Passenger Mirror
Repair the (P64) Passenger Mirror Vertical Position Signal circuit for a short to the (C917) Passenger Mirror Heater Ground circuit.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No, Driver Mirror
Replace the Driver Door Module.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test

No, Passenger Mirror
Replace the Passenger Door Module.
Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
