Air Bag
Air Bag

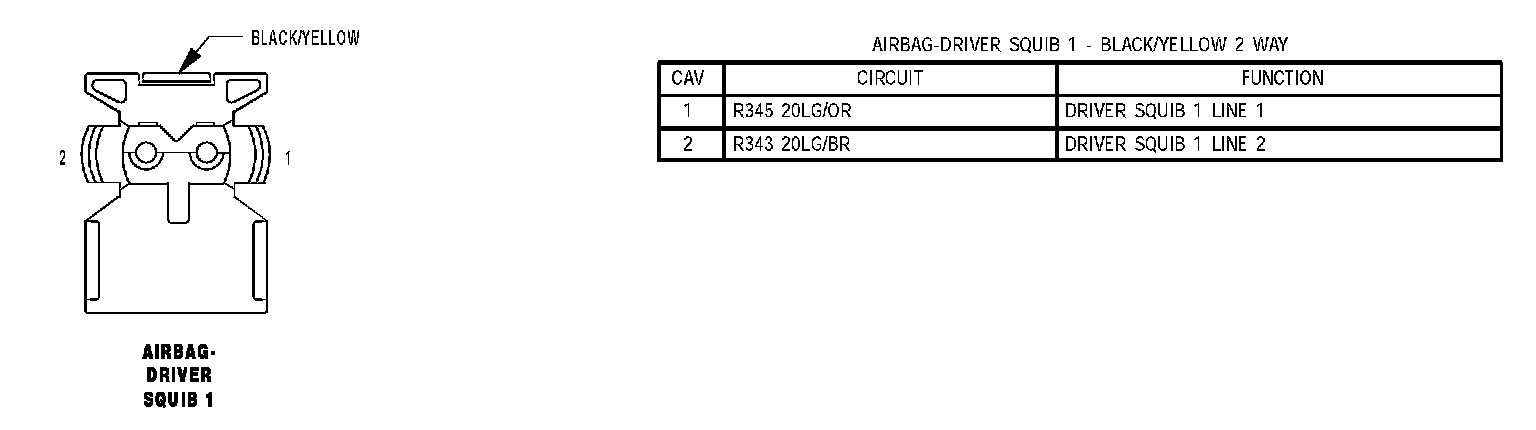

Airbag Driver Squib 1:

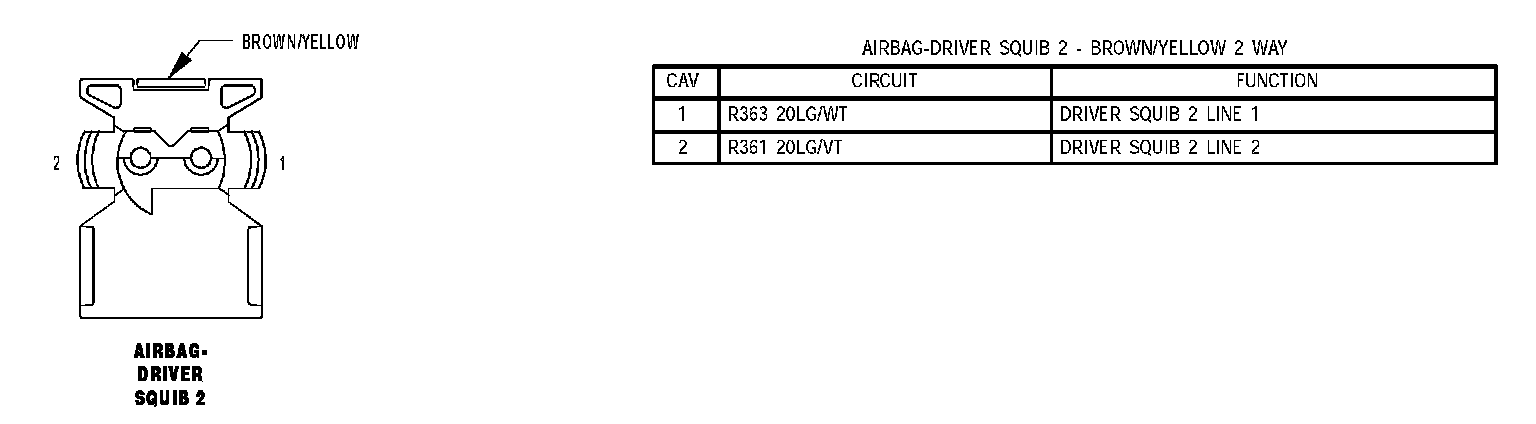

Airbag Driver Squib 2:

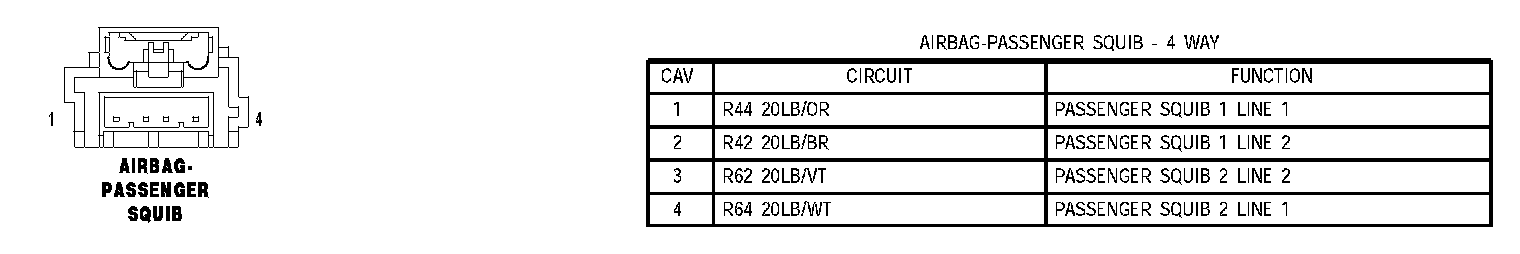

Airbag Passenger Squib:

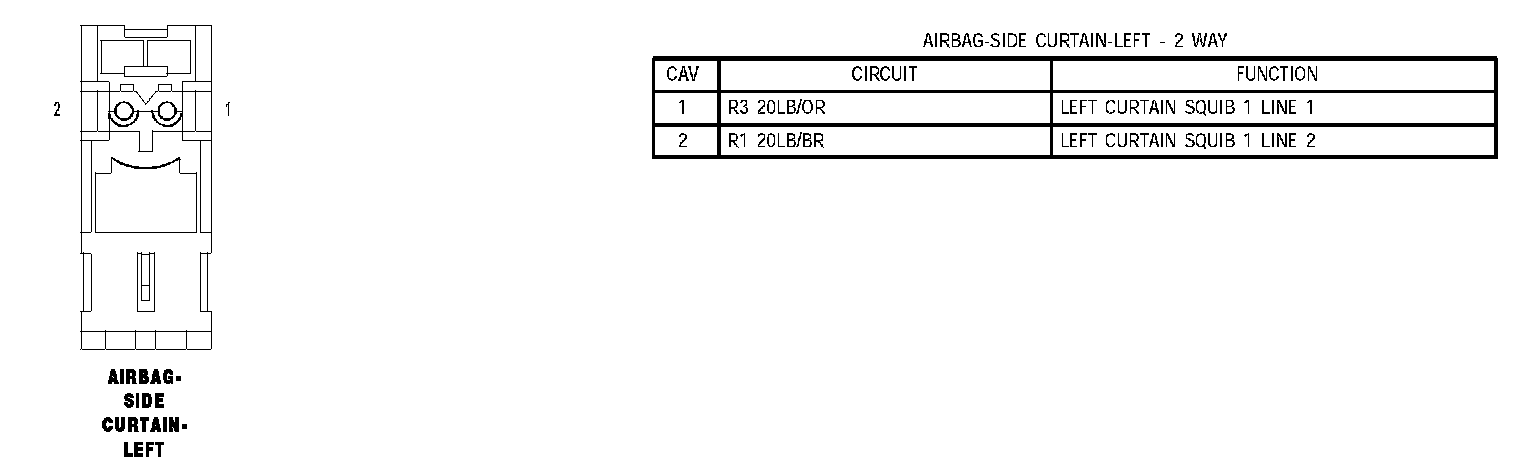

Airbag Side Curtain Left:

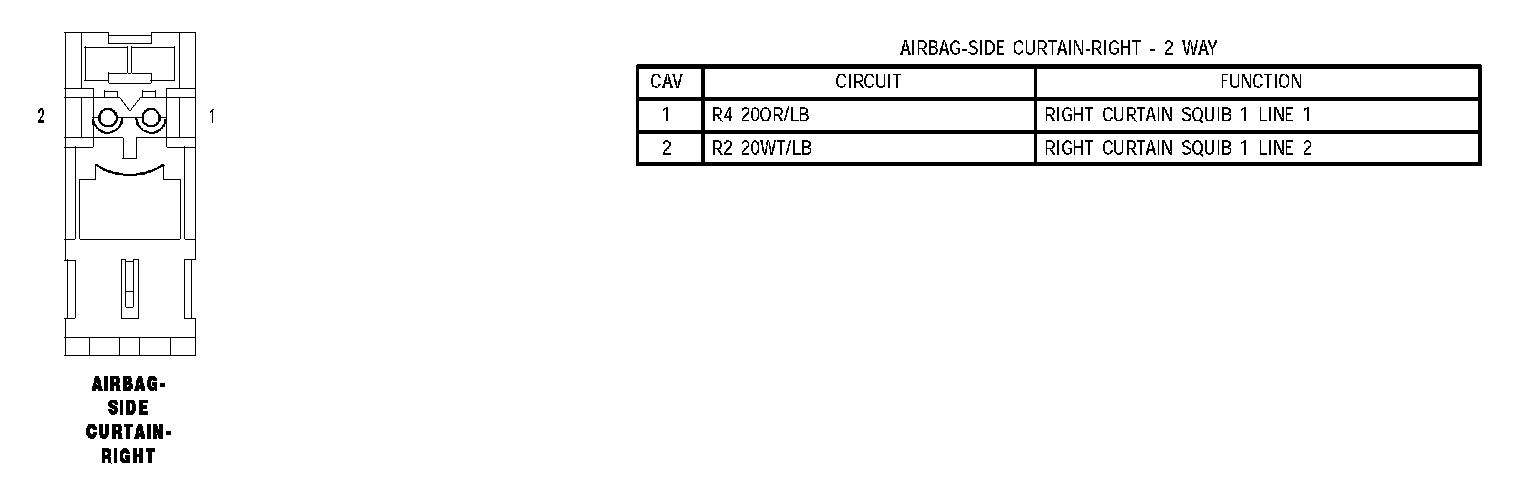

Airbag Side Curtain Right:
