Compressor HVAC: Service and Repair
A/C COMPRESSORNOTE: If an internal failure of the A/C compressor has occurred, the receiver/drier must be replaced.
REMOVAL
WARNING: REFER TO THE APPLICABLE WARNINGS AND CAUTIONS FOR THIS SYSTEM BEFORE PERFORMING THE FOLLOWING OPERATION. FAILURE TO FOLLOW THE WARNINGS AND CAUTIONS COULD RESULT IN POSSIBLE PERSONAL INJURY OR DEATH.
NOTE: The A/C compressor may be removed and repositioned without disconnecting the refrigerant lines or discharging the refrigerant system. Discharging is not necessary if servicing the compressor clutch, clutch field coil, engine, engine cylinder head or the generator.
1. Recover the refrigerant from the refrigerant system.
2. Disconnect and isolate the negative battery cable.
3. Remove the resonator from the air cleaner housing and engine.
4. Remove the accessory drive belt.

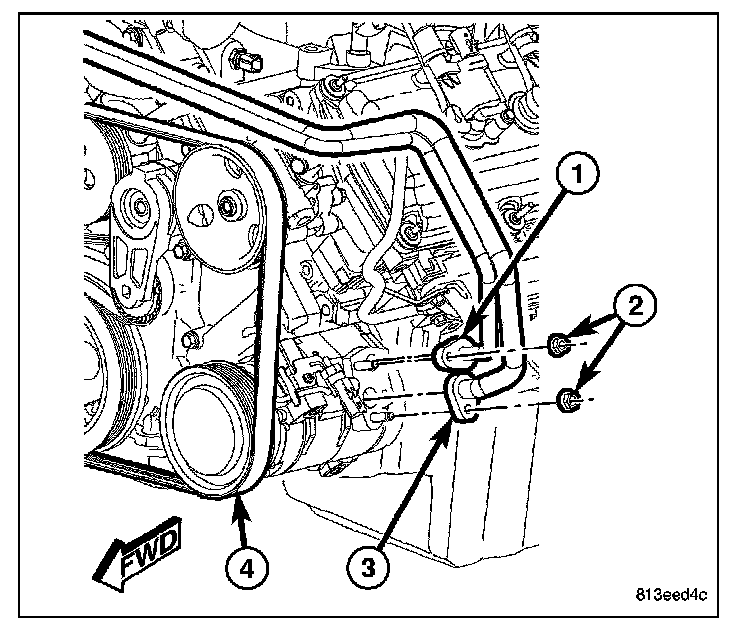

5. Remove the nuts (2) that secure the A/C discharge line (1) and A/C suction line (3) to the A/C compressor (4).
6. Disconnect the refrigerant lines from the A/C compressor and remove and discard the dual plane seals.
7. Install plugs in, or tape over all of the opened refrigerant line fittings and the compressor ports.

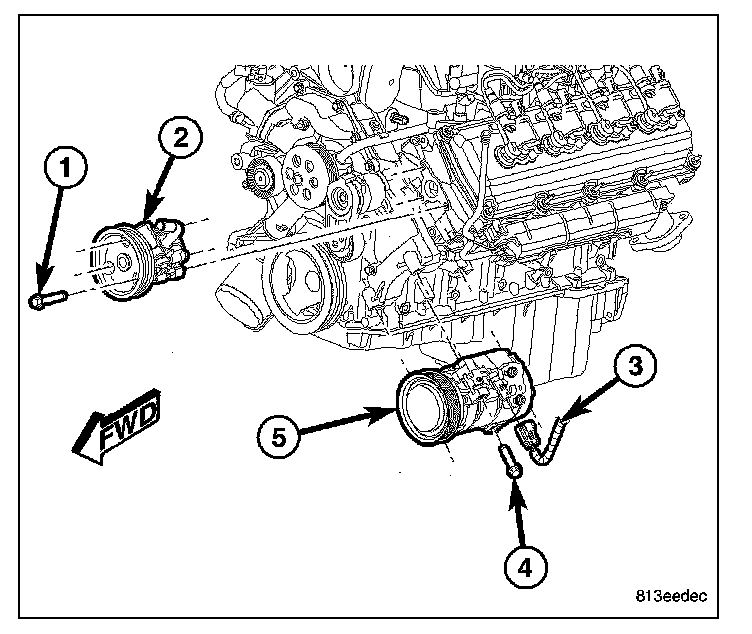

8. Remove the three bolts (1) that secure the power steering pump (2) to the engine and position the pump out of the way.
9. Disconnect the wire harness connector (3) from the A/C compressor (5).
10. Support the A/C compressor and remove the bolts (4) that secure the compressor to the engine. 11. Remove the A/C compressor from the engine compartment.
INSTALLATION
NOTE: Be certain to check the refrigerant oil level if the A/C compressor is being replaced. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

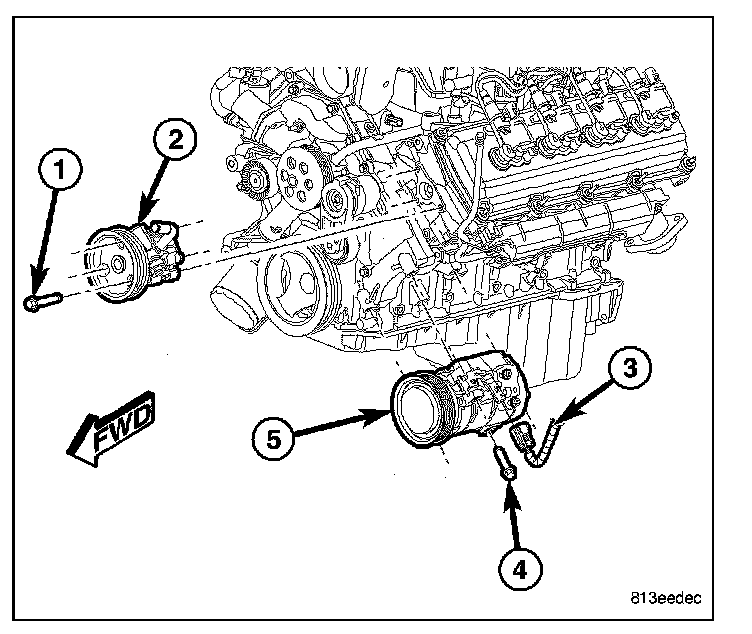

1. Position the A/C compressor (5) into the engine compartment.
2. Install the bolts (4) that secure the A/C compressor to the engine. Tighten the bolts to 55 N.m (41 ft. lbs.).
3. Connect the wire harness connector (3) to the A/C compressor.
4. Position the power steering pump (2) onto the engine.
5. Install the three bolts (1) that secure the power steering pump to the engine. Tighten the bolts securely.
6. Remove the tape or plugs from the opened refrigerant line fittings and the compressor ports.
7. Lubricate new dual plane seals with clean refrigerant oil and install them onto the refrigerant line fittings. Use only the specified seals as they are made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

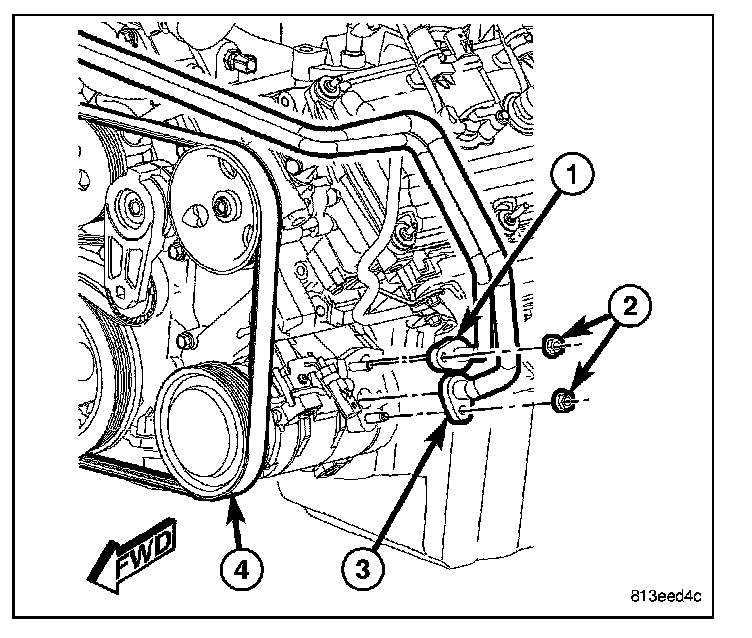

8. Install the A/C suction line (3) and the A/C discharge line (1) onto the A/C compressor (4).
9. Install the nuts (2) that secure the refrigerant lines to the A/C compressor. Tighten the nuts to 20 N.m (15 ft. lbs.).
10. Install the accessory drive belt.
11. Replace the receiver/drier if the A/C compressor is being replaced due to an internal failure.
12. Install the resonator onto the engine and the air cleaner housing.
13. Reconnect the negative battery cable.
14. Evacuate the refrigerant system.
15. Charge the refrigerant system.
