HEC Return Hose

HEC RETURN HOSE

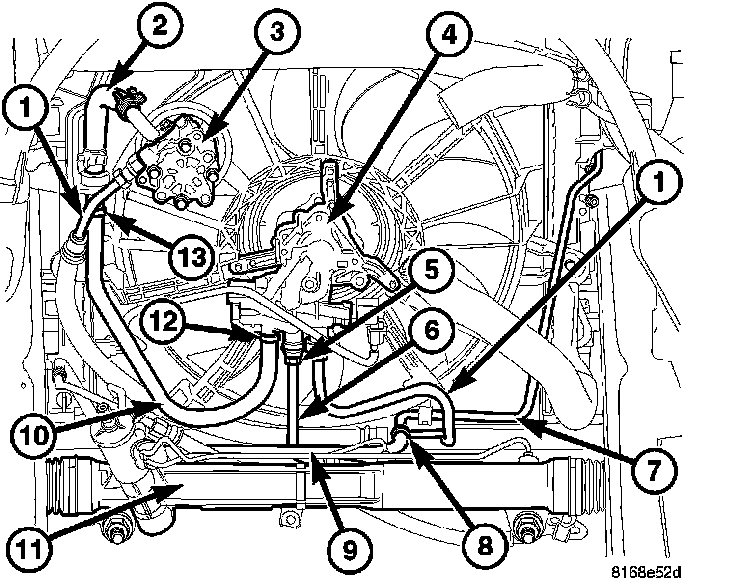

REMOVAL





1. Siphon the power steering fluid from the reservoir.
2. Remove and discard the clamp (13) at the power steering reservoir.
3. Raise and support the vehicle.
4. Remove the front splash shield.
5. Remove and discard the clamp (12) at the hec fan (4).
6. Remove the hose (10).

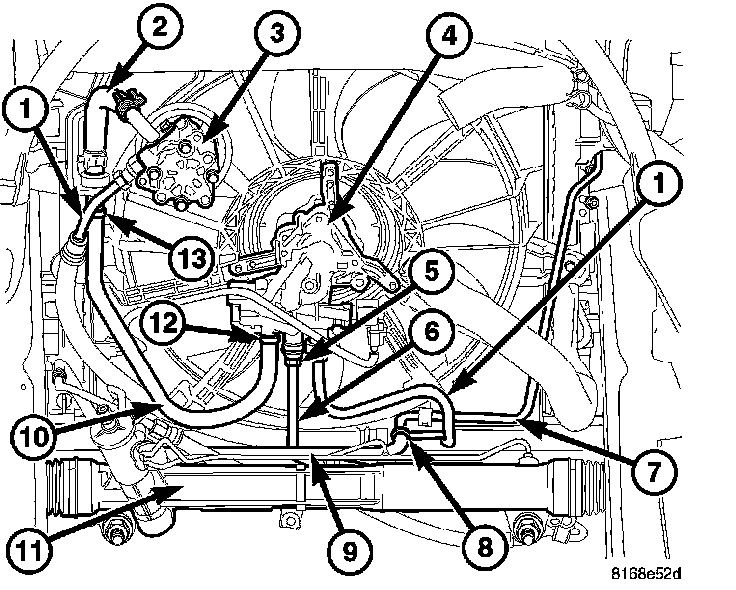

INSTALLATION





1. Install the hose (10) to the hec fan (4) and reservoir.
2. Install a new crimp clamp (12) at the hec fan (4).
3. Install the front splash shield.
4. Remove the support and lower the vehicle.
5. Install a new crimp clamp (13) at the power steering reservoir.
6. Refill the power steering fluid and bleed the system,
7. Start engine and check for leaks.
