Skid Plate: Service and Repair
SKID PLATE-FRONTREMOVAL

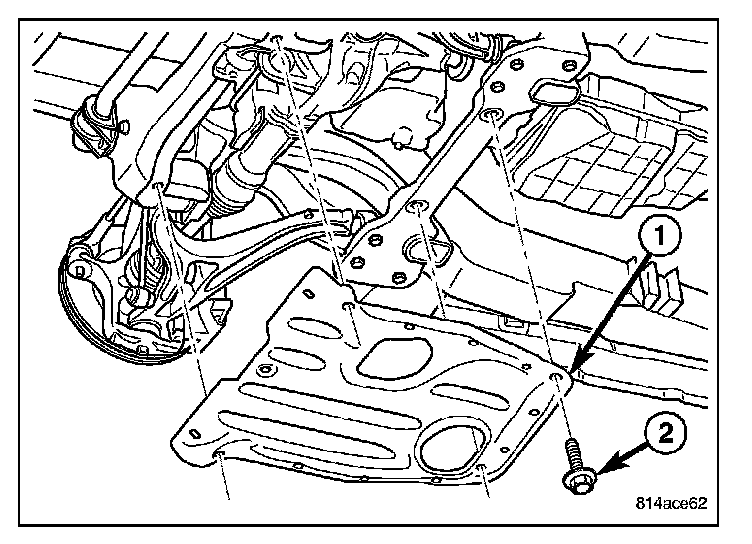

1. Remove the four bolts (2) and remove the skid plate (1).
INSTALLATION
1. Install the skid plate (1) and install the four bolts (2).
2. Tighten the bolts to 28 N.m (21 ft.lbs.).
REMOVAL

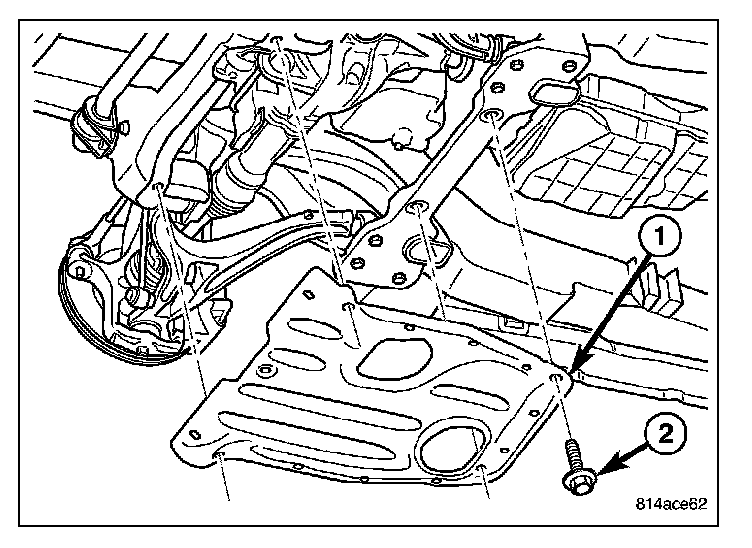

1. Remove the four bolts (2) and remove the skid plate (1).
INSTALLATION
1. Install the skid plate (1) and install the four bolts (2).
2. Tighten the bolts to 28 N.m (21 ft.lbs.).
