Door Lock Relay
Door Lock Relay

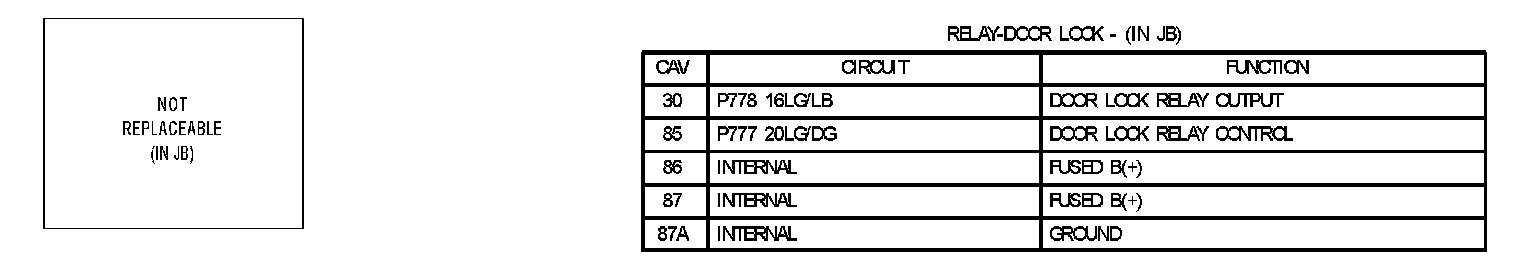

Relay Door Lock - (In JB):

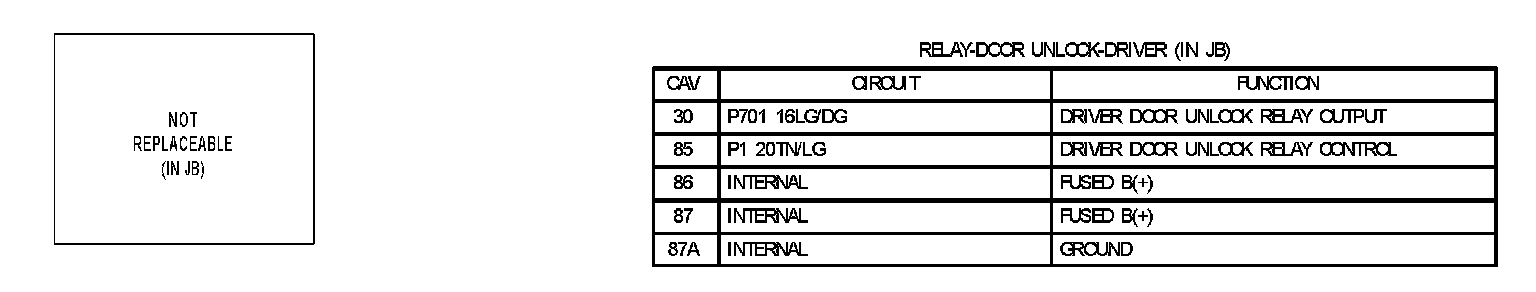

Relay Door Unlock - Driver (In JB):

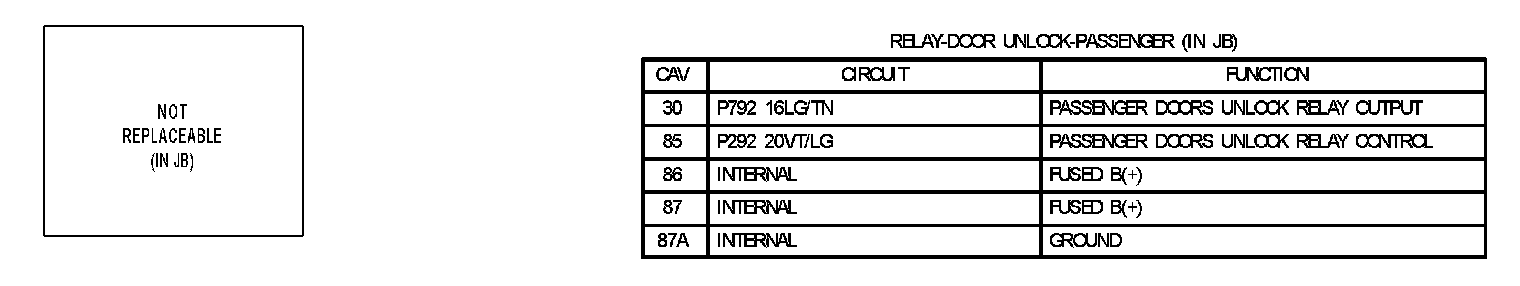

Relay Door Unlock - Passenger (In JB):
