Parking Assist Distance Sensor

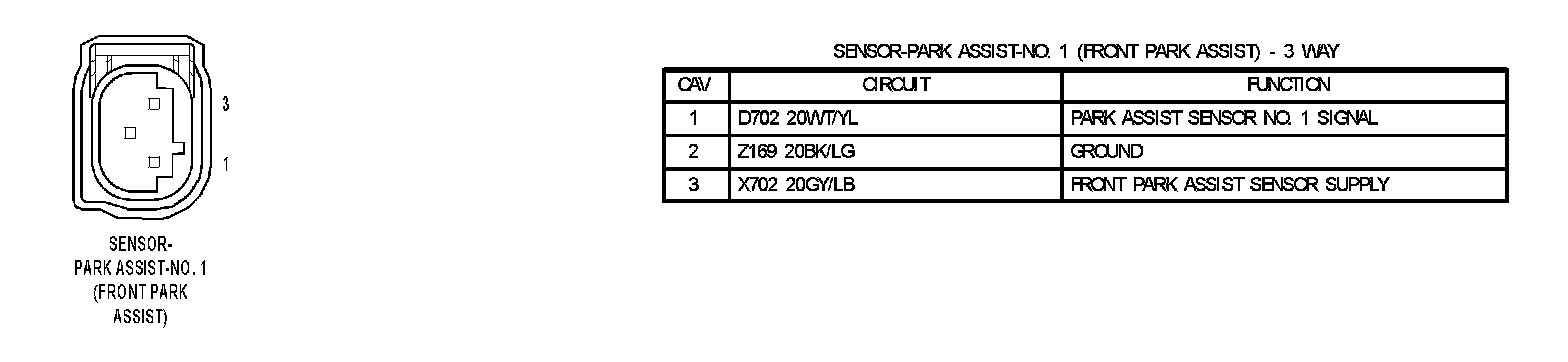

Sensor Park Assist No.1 (Front Park Assist):

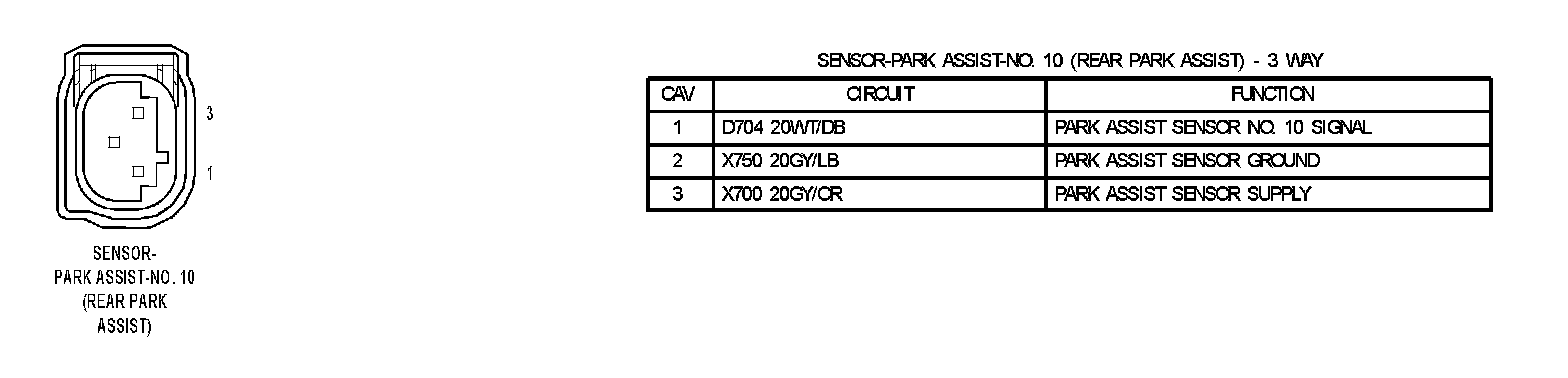

Sensor Park Assist No.10 (Rear Park Assist):

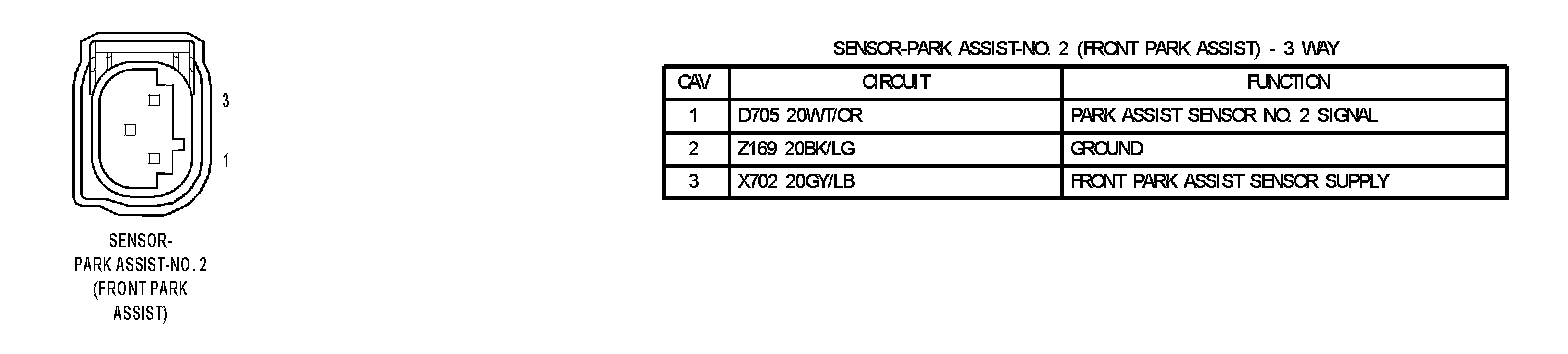

Sensor Park Assist No.2 (Front Park Assist):

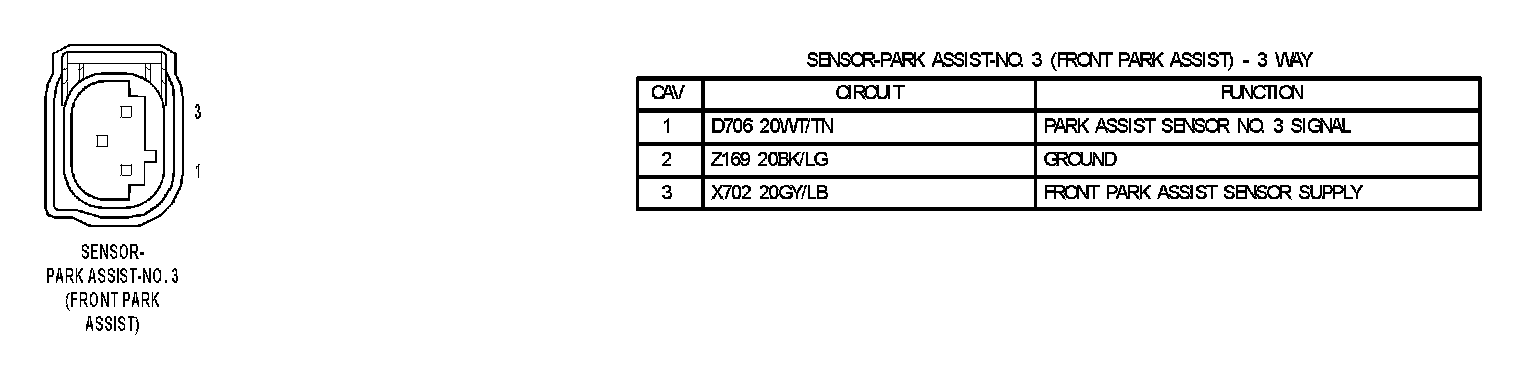

Sensor Park Assist No.3 (Front Park Assist):

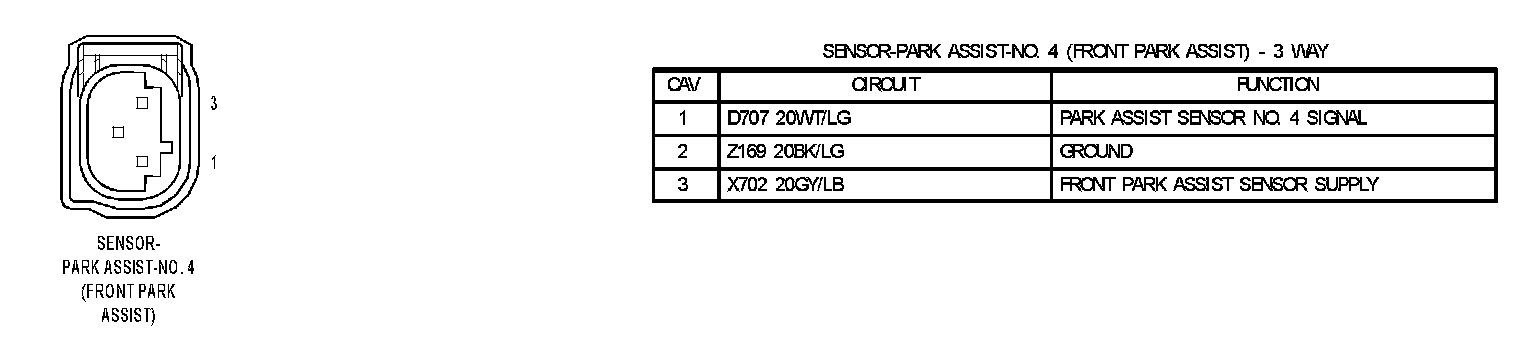

Sensor Park Assist No.4 (Front Park Assist):

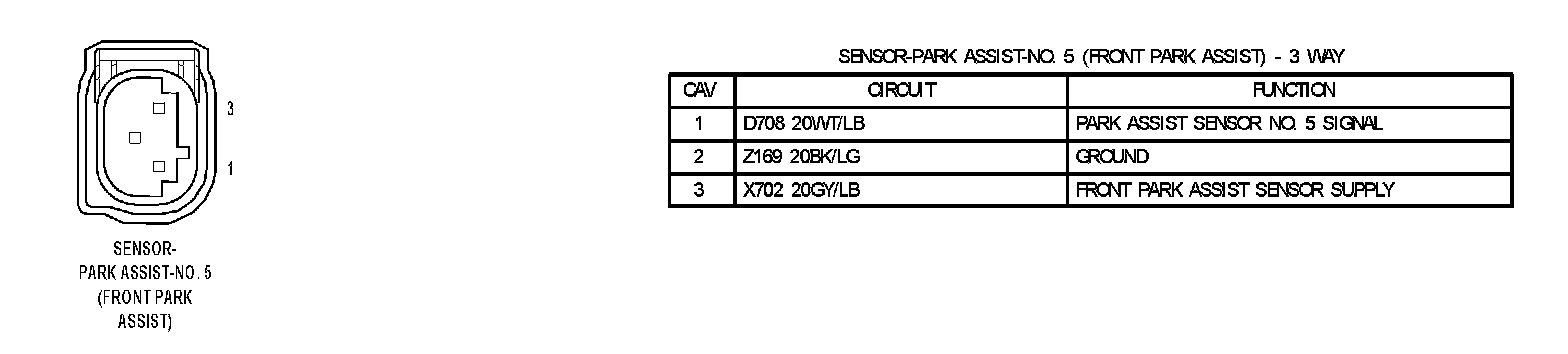

Sesnor Park Assist No.5 (Front Park Assist):

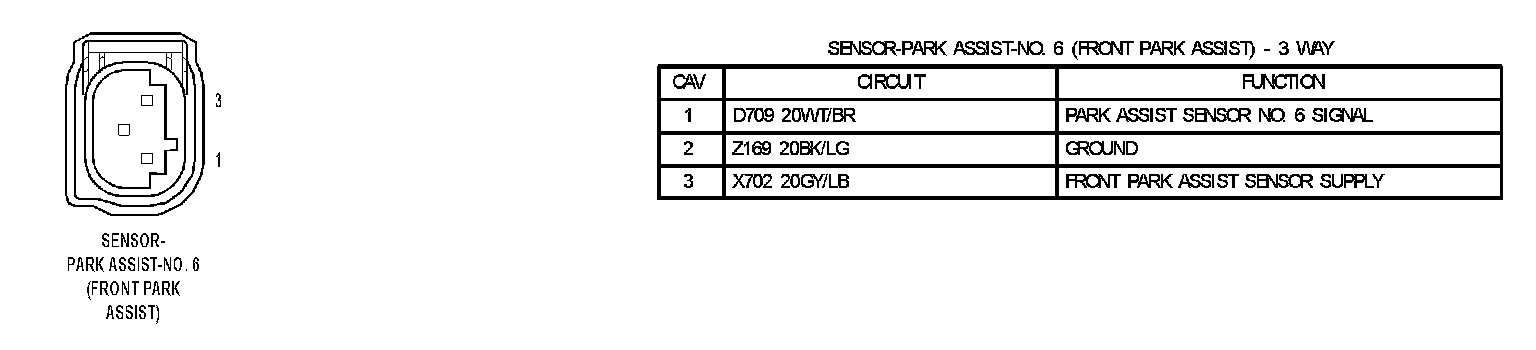

Sensor Park Assist No.6 (Front Park Assist):

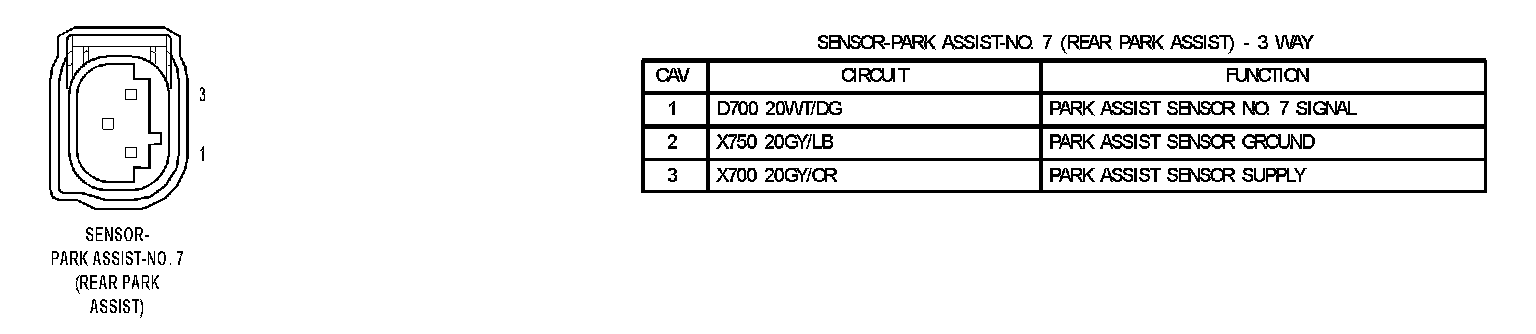

Sensor Park Assist No.7 (Rear Park Assist):

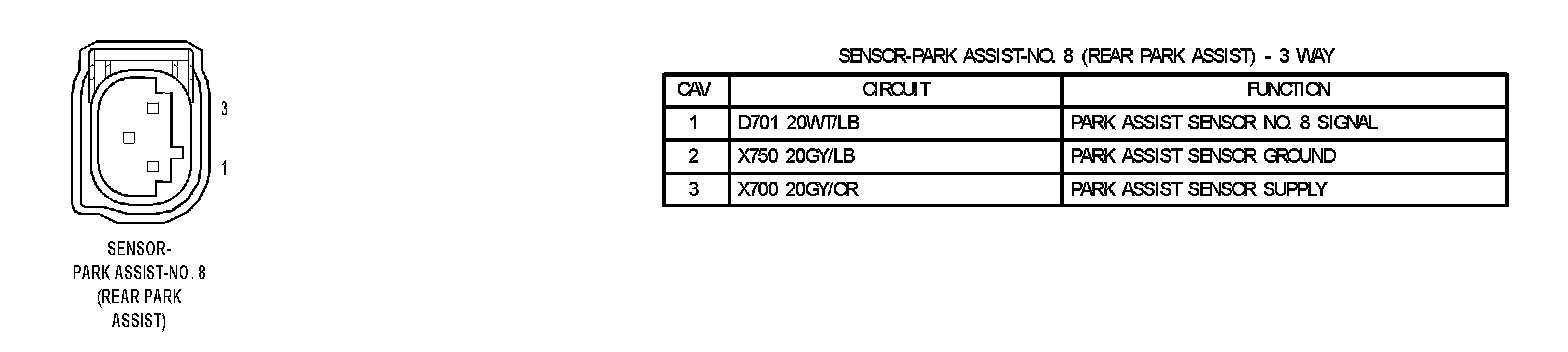

Sensor Park Assist No.8 (Rear Park Assist):

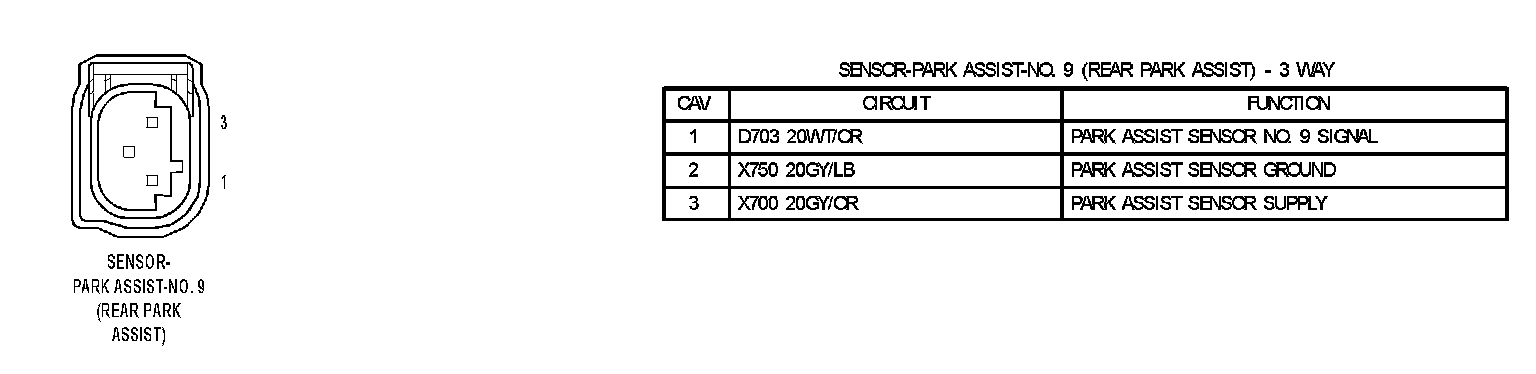

Sensor Park Assist No.9 (Rear Park Assist):
