Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

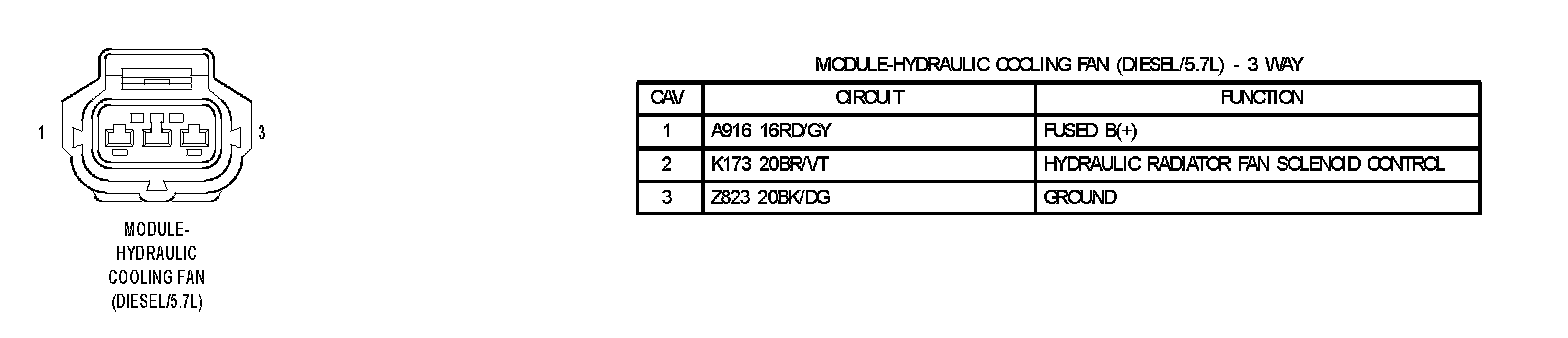

Module Hydraulic Cooling Fan (Diesel/5.7L):
