Trailer Connector
Trailer Connector

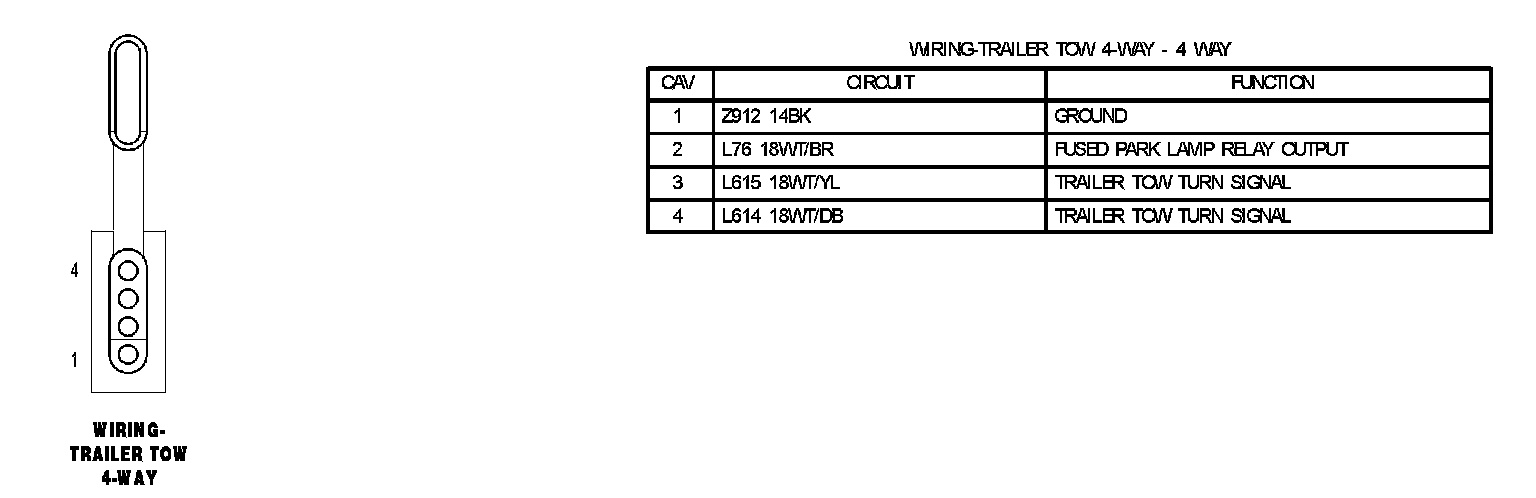

Wiring Trailer Tow 4-way:

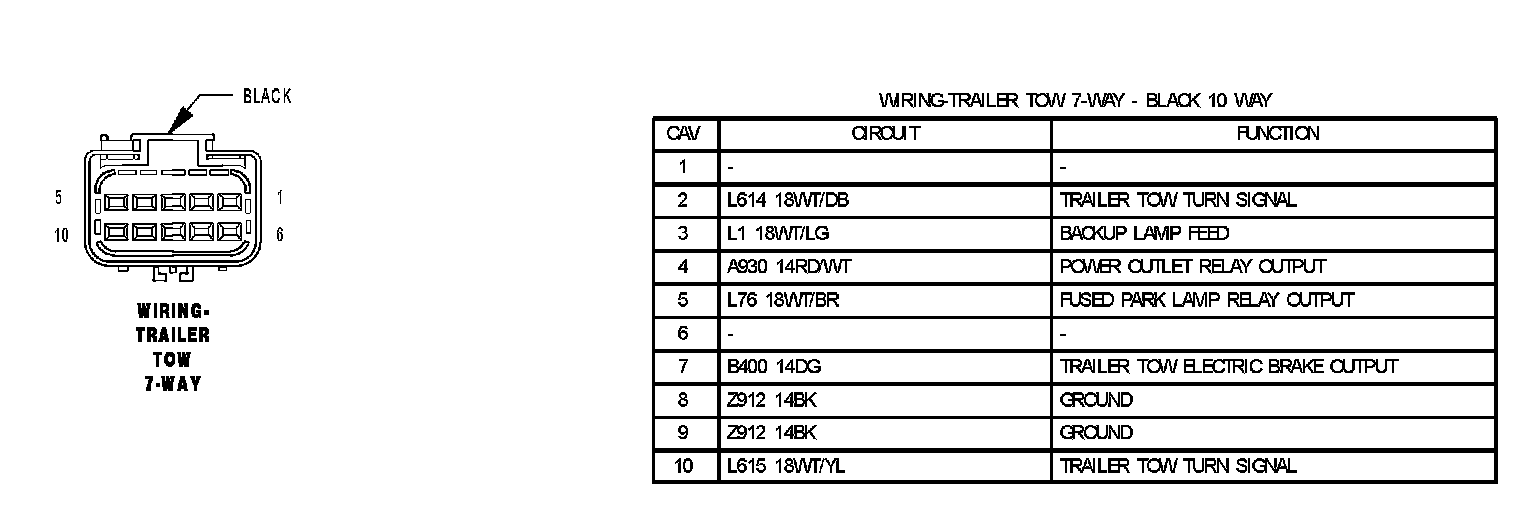

Wiring Trailer Tow 7-way:

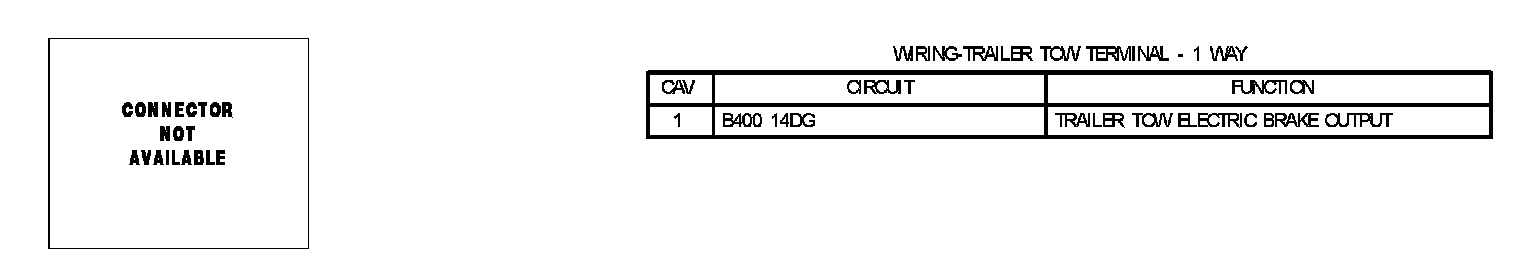

Wiring Trailer Tow Terminal - 1 Way:
