Body Control Systems

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

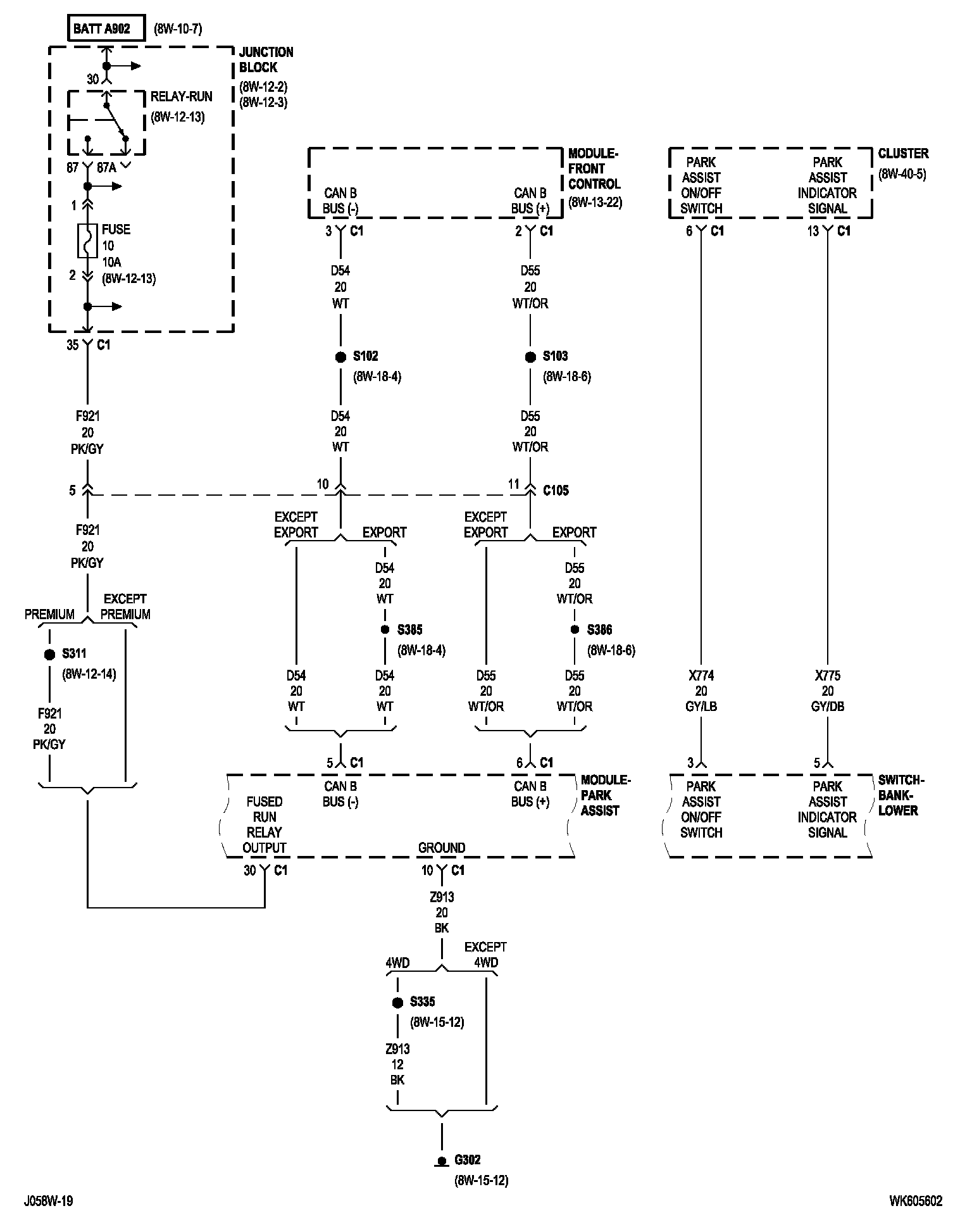

8w-56-2 (Park Assist):

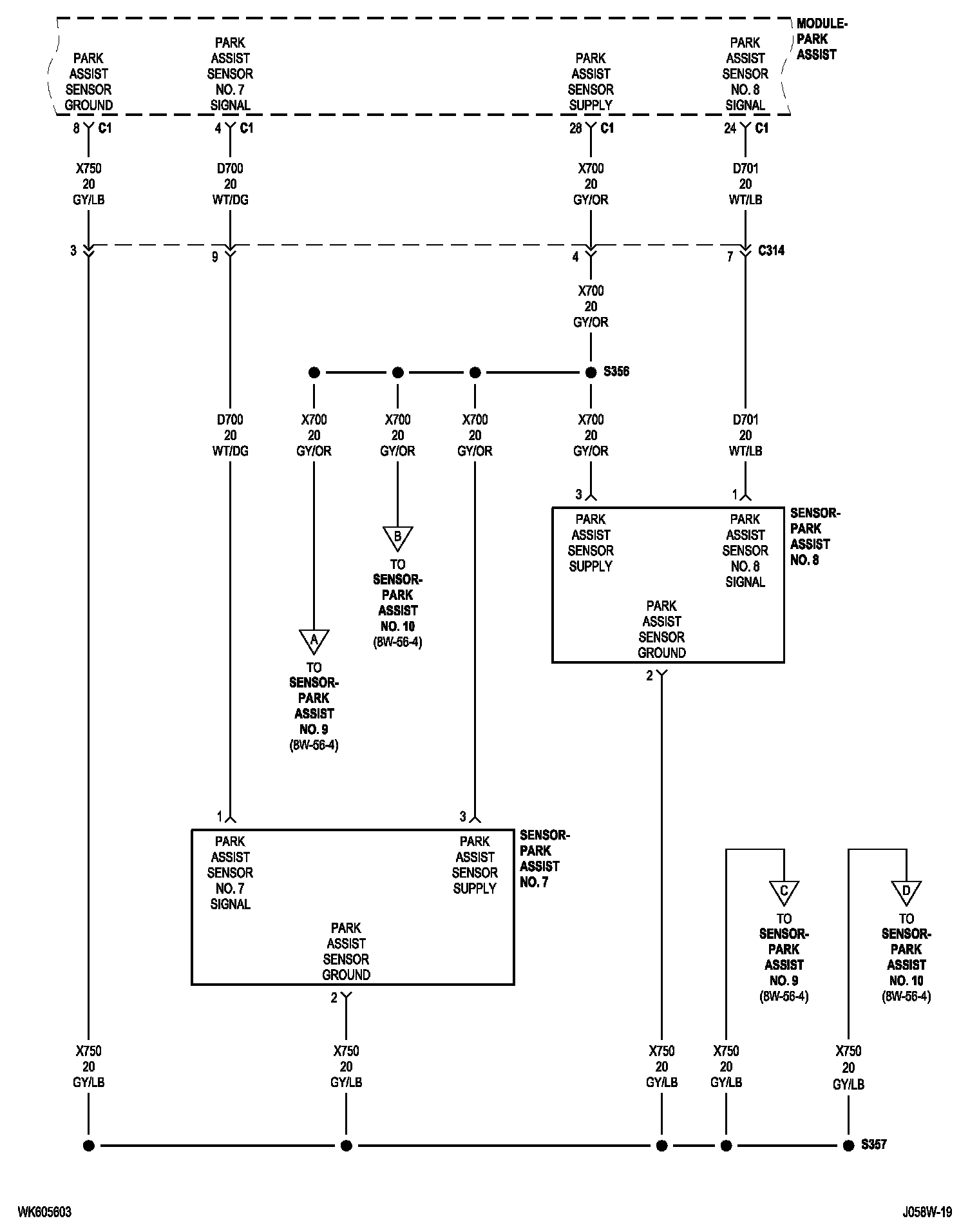

8w-56-3 (Park Assist):

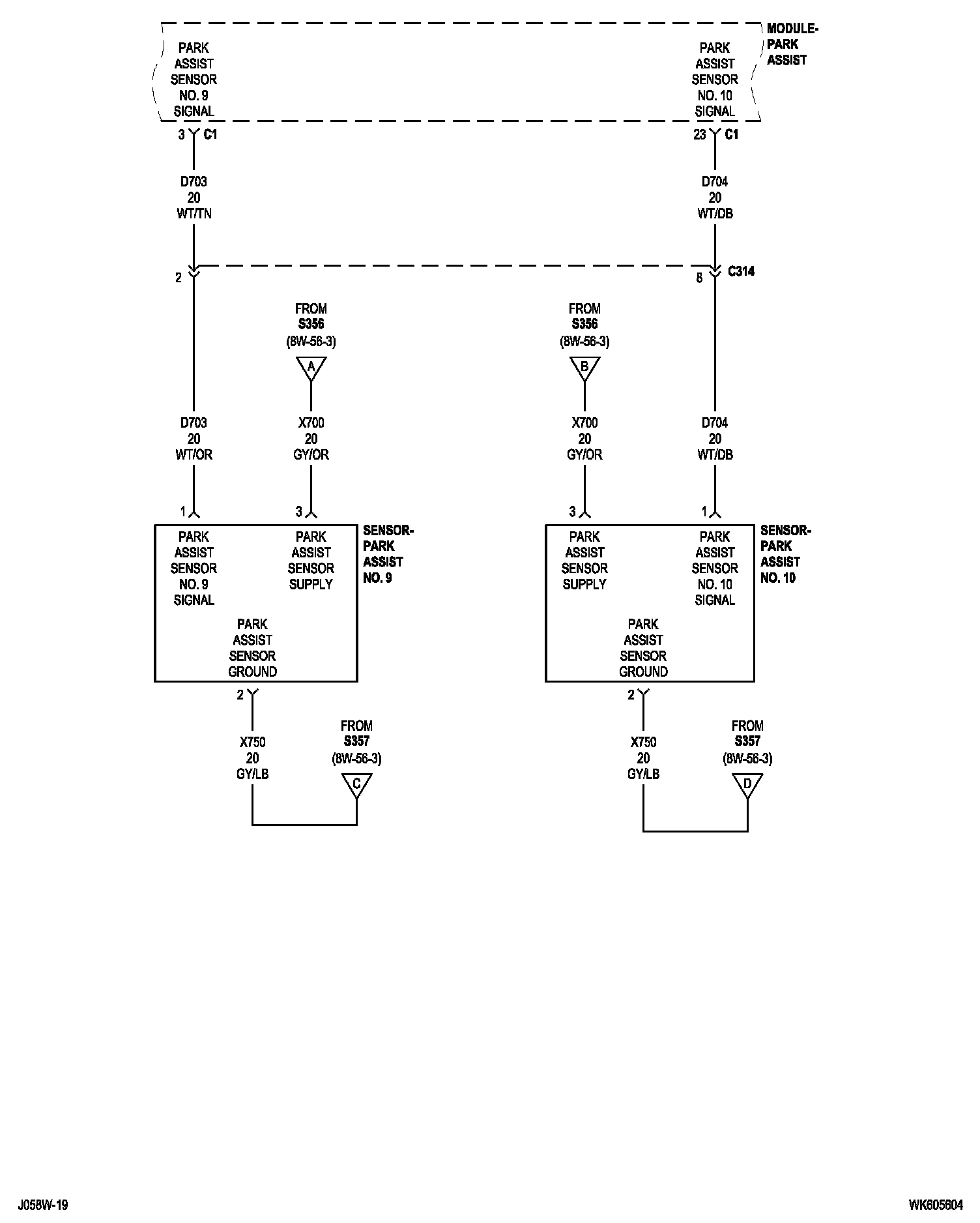

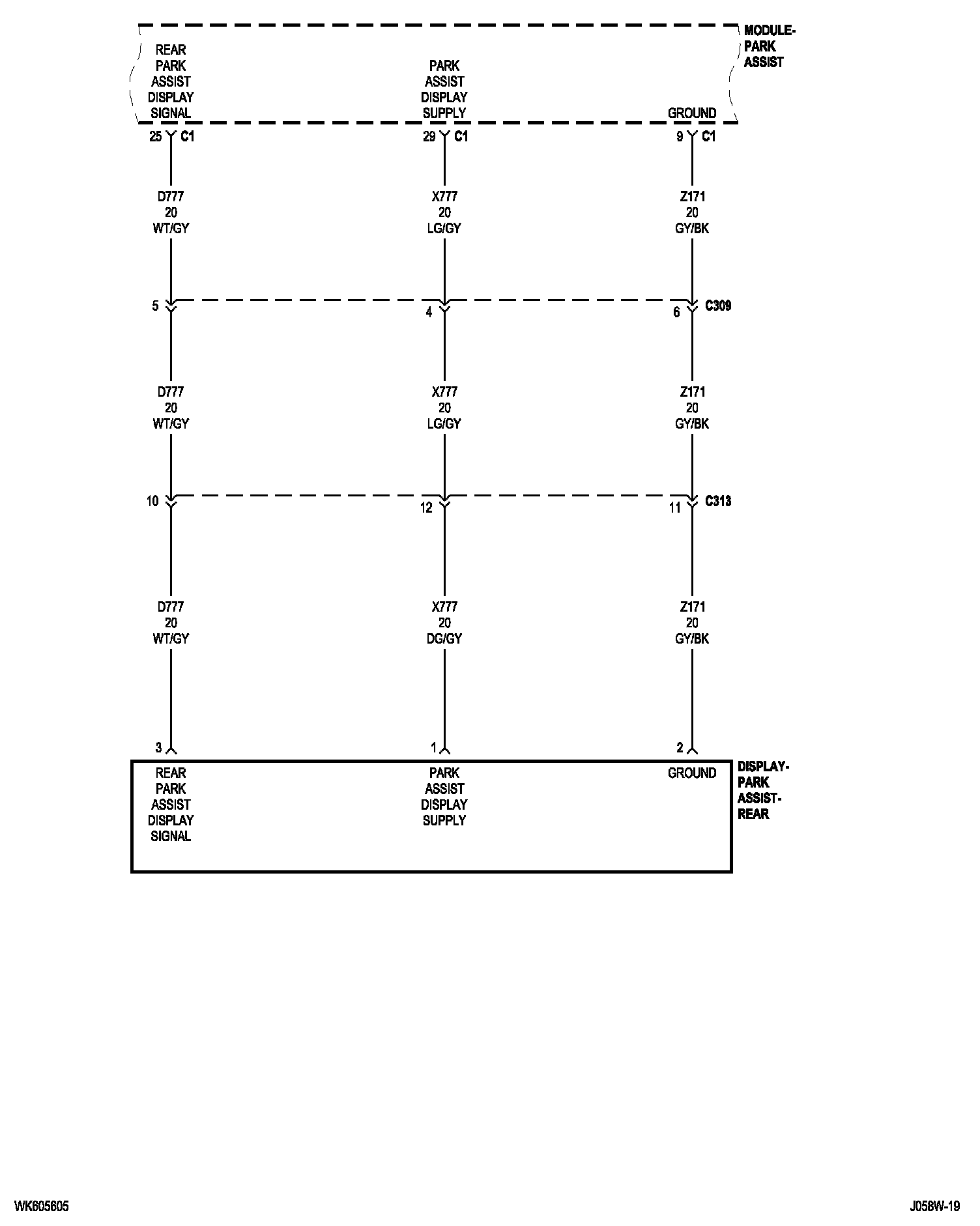

8w-56-4 (Park Assist):

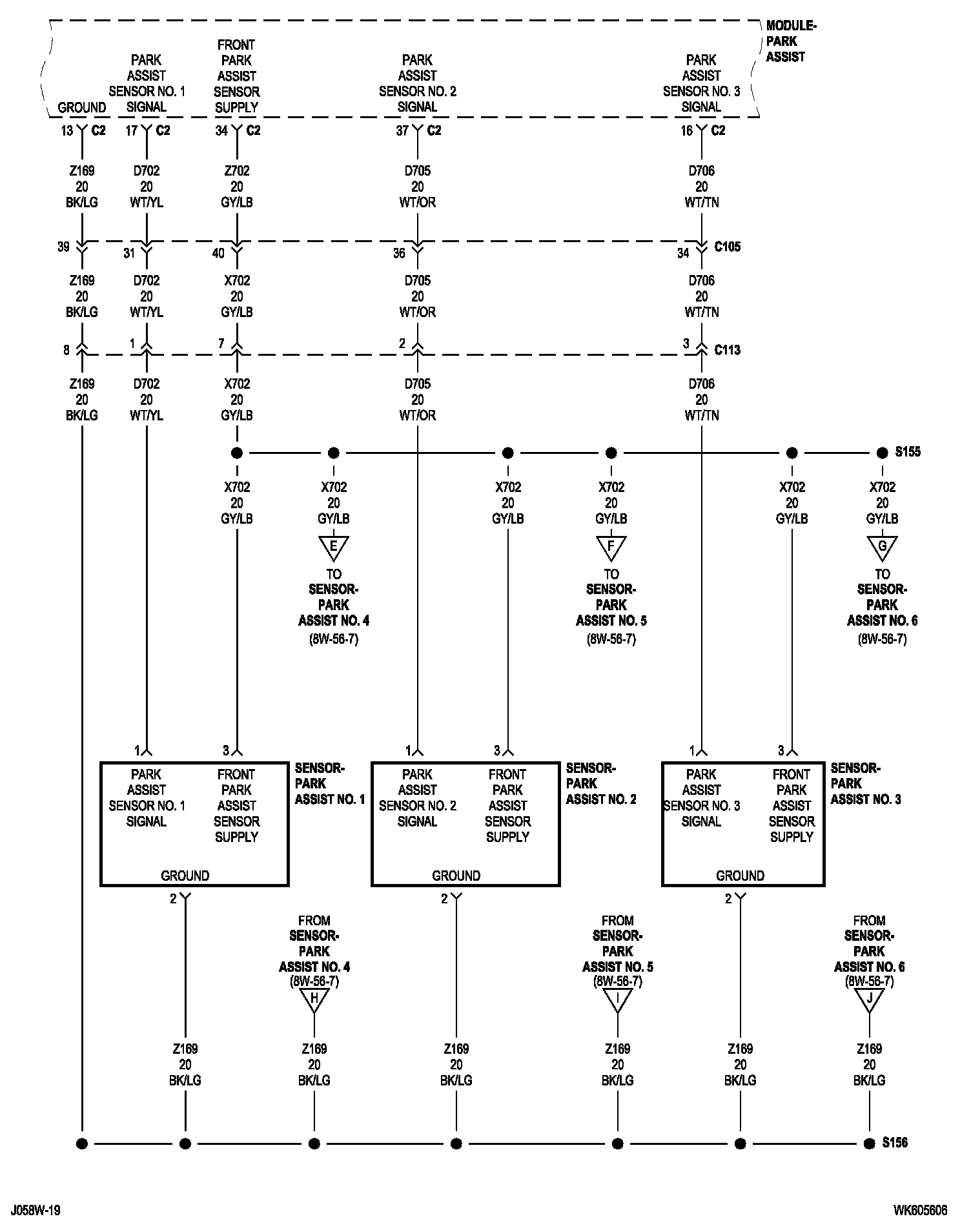

8w-56-5 (Park Assist):

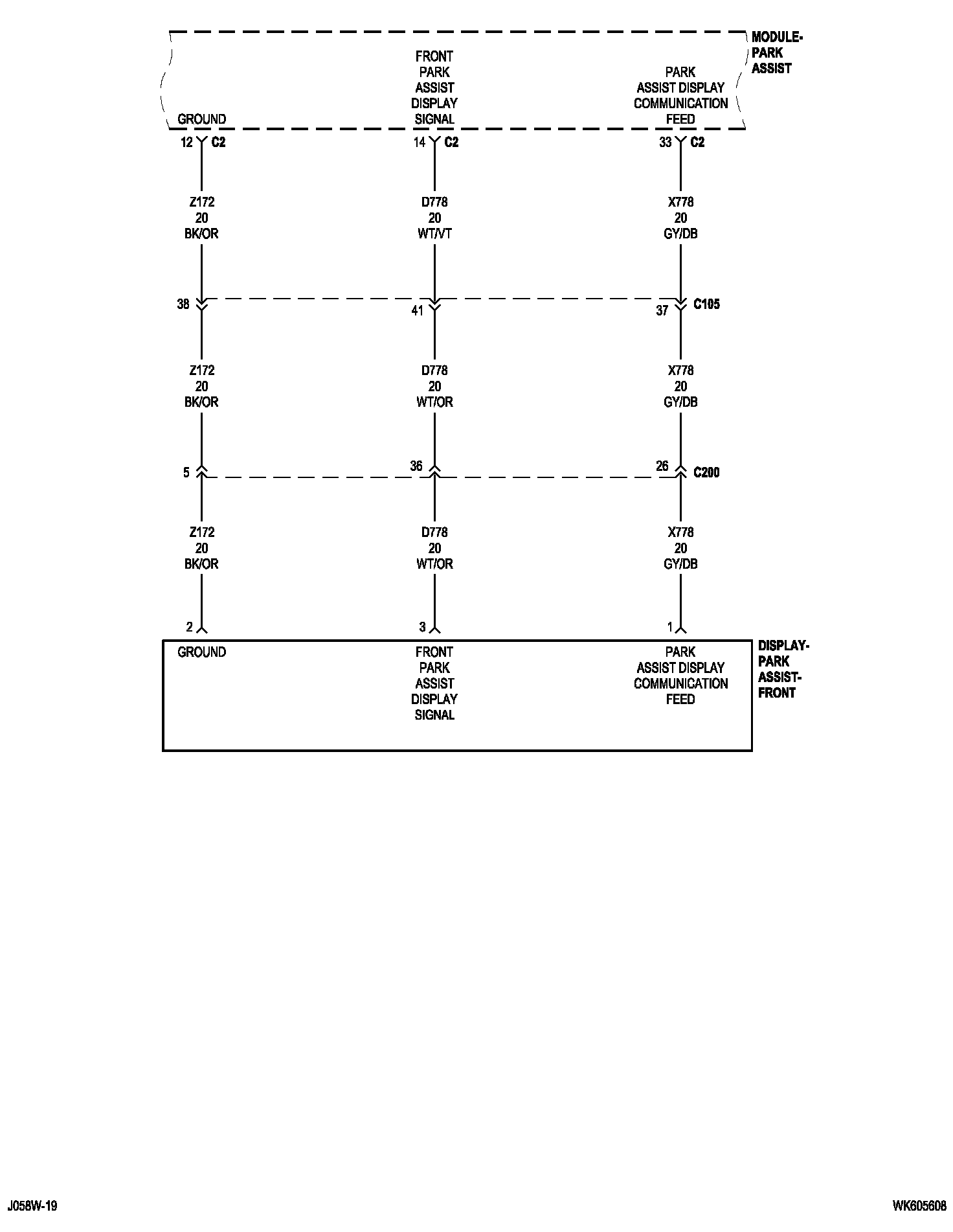

8w-56-6 (Front Park Assist):

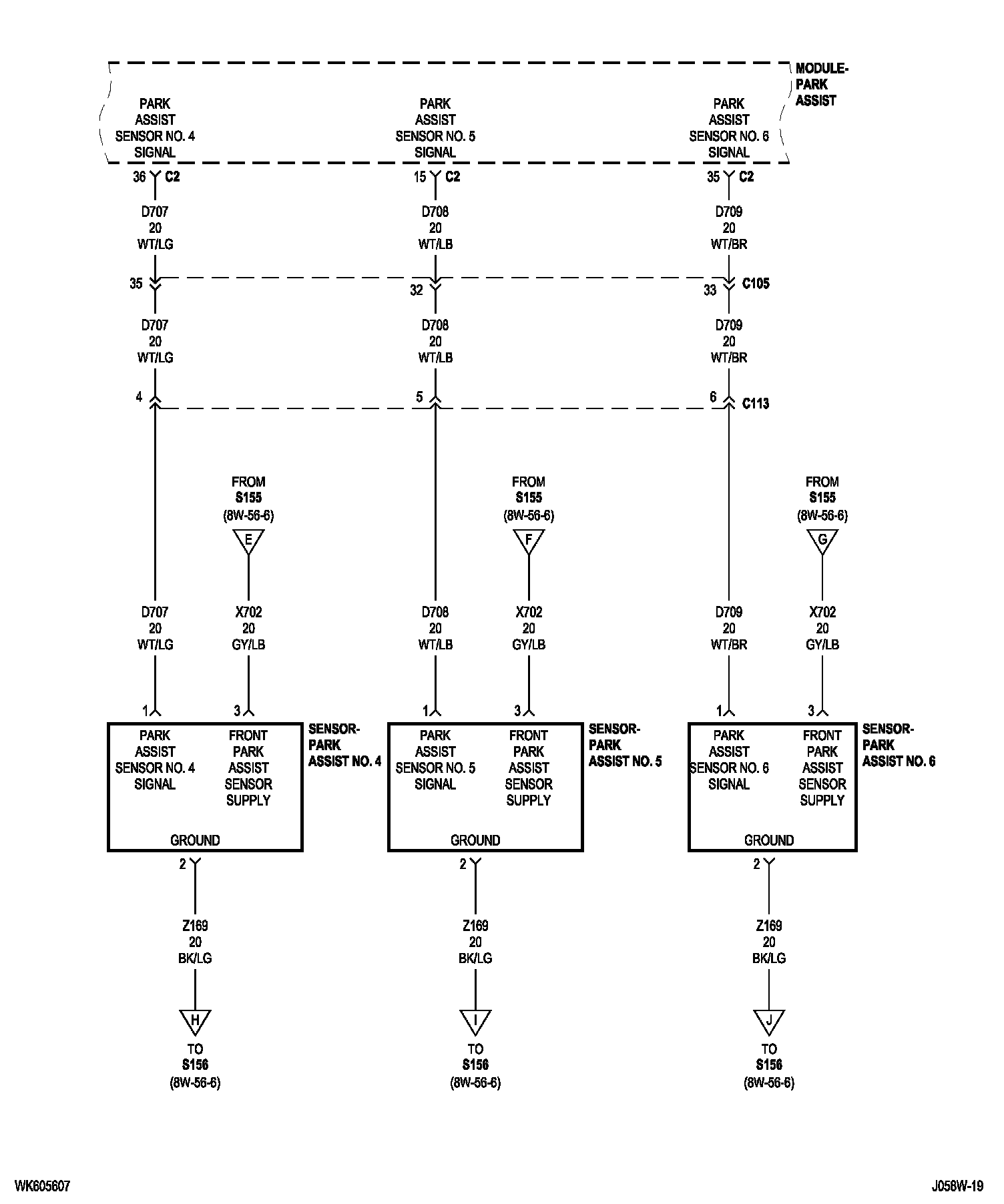

8w-56-7 (Front Park Assist):

8w-56-8 (Front Park Assist):

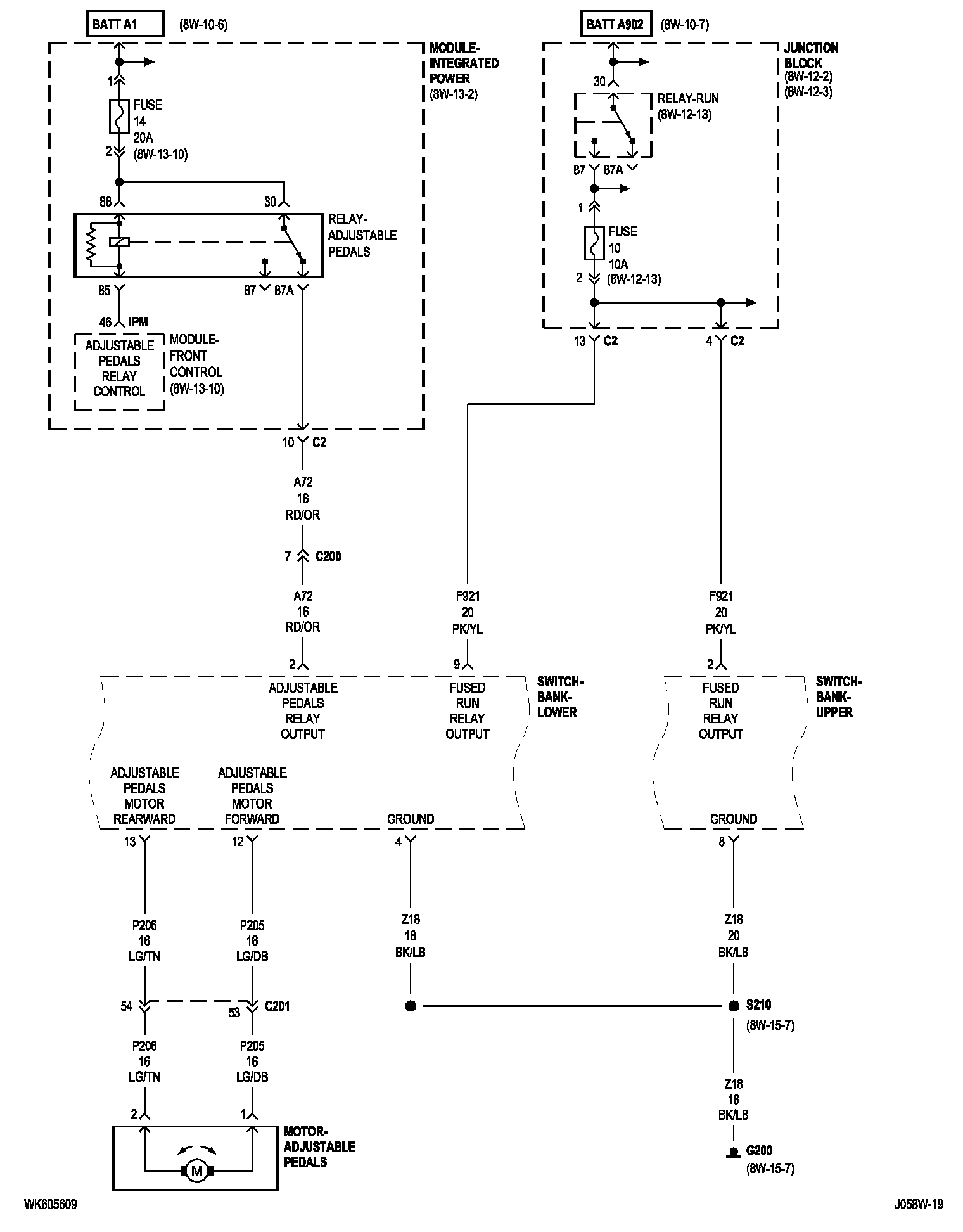

8w-56-8 (Except Memory):

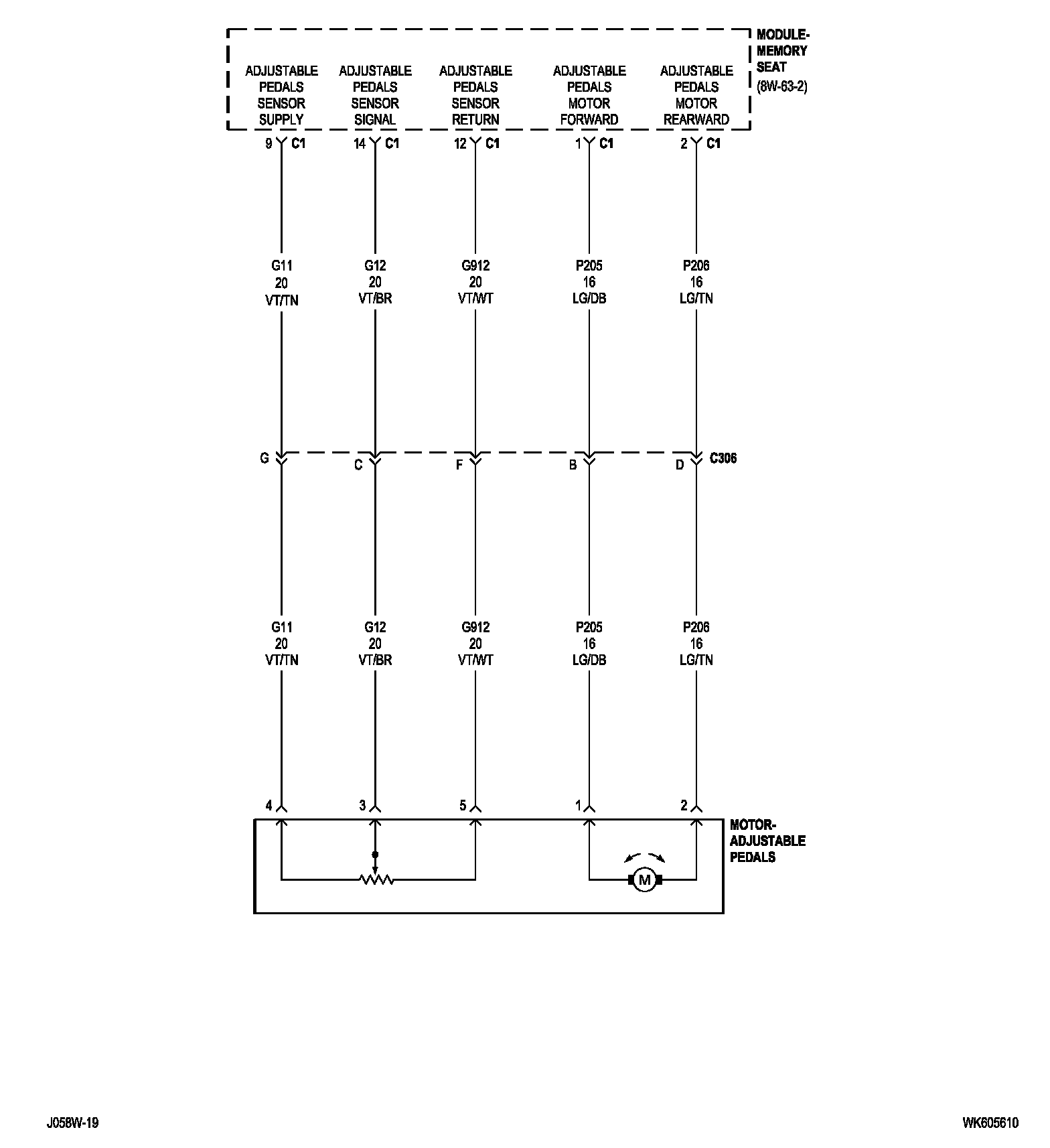

8w-56-10 (Memory):

Other Diagrams: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by Number. Diagrams By Number
