Oil Temperature Sensor/Switch, Engine

Component ID: 490
Component : SENSOR-OIL TEMPERATURE

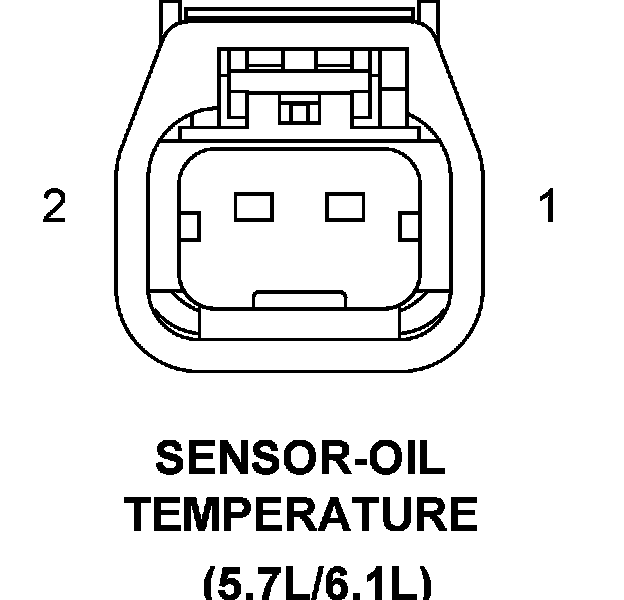

Connector:
Name : SENSOR-OIL TEMPERATURE
Color :
# of pins : 2
Qualifier : (5.7L/6.1L)




Pin Circuit Description
1 G224 20VT/GY ENGINE OIL TEMPERATURE SIGNAL
Pin Circuit Description
1 G224 20BR/GY ENGINE OIL TEMPERATURE SIGNAL
2 K900 20DB/DG SENSOR GROUND

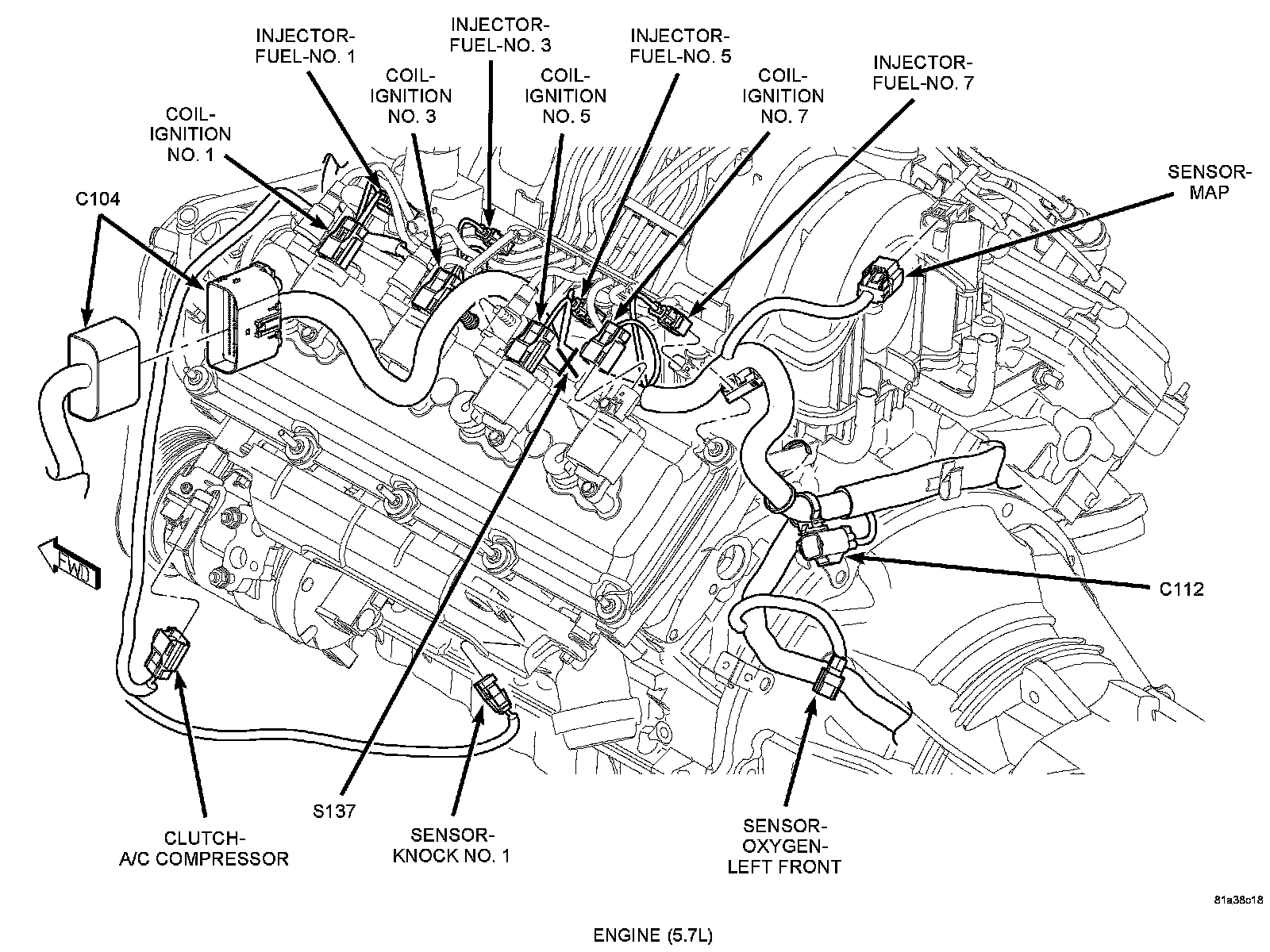

Component Location - 29

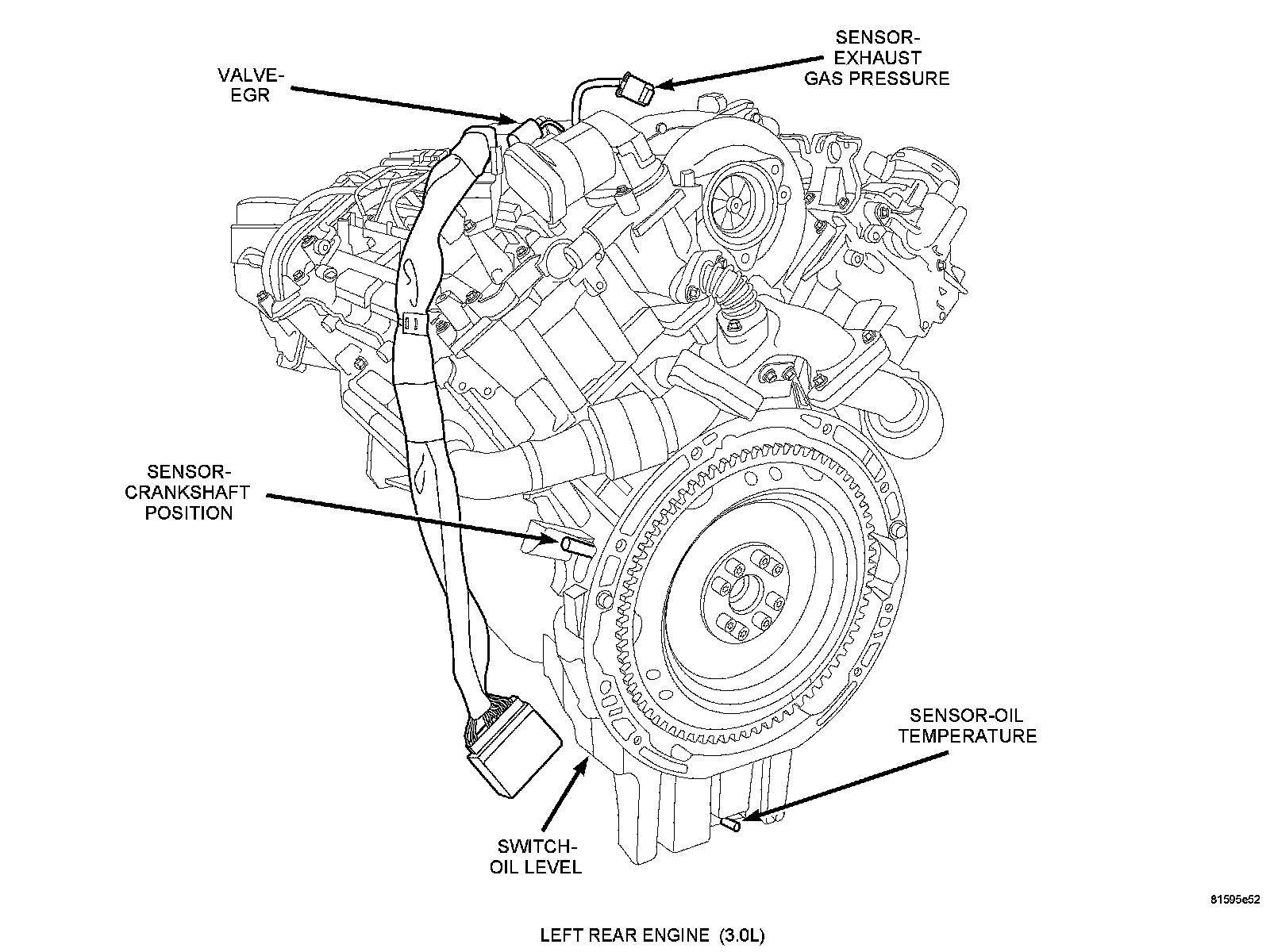

Component Location - 24
