Component Locations
Component ID: 489Component : SENSOR-OIL PRESSURE
Connector:

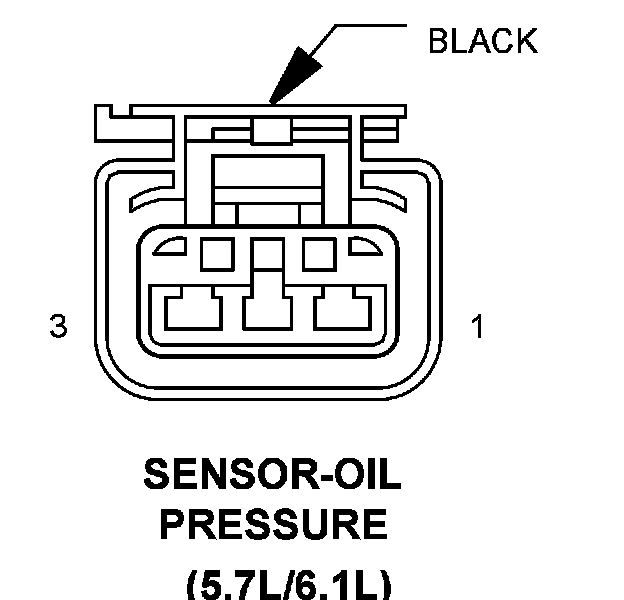

Name : SENSOR-OIL PRESSURE
Color : BLACK
# of pins : 3
Qualifier : (5.7L/6.1L)
Pin Circuit Description
1 F855 20PK/YL 5 VOLT SUPPLY
Pin Circuit Description
1 F855 18PK/YL 5 VOLT SUPPLY
2 G6 20VT/GY ENGINE OIL PRESSURE SIGNAL
3 K900 20DB/DG SENSOR GROUND
Component Location - 24
