C1014

C1014-LEFT FRONT WHEEL SPEED COMPARATIVE PERFORMANCE

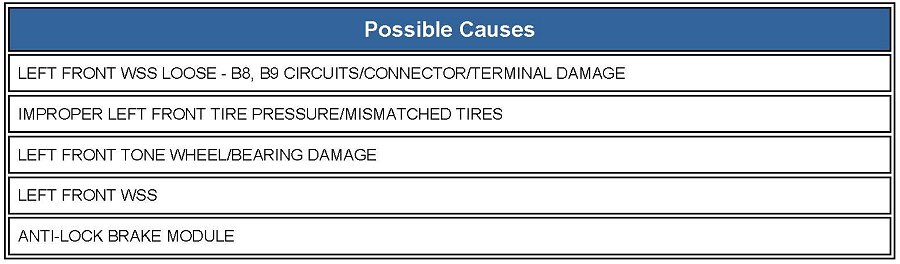

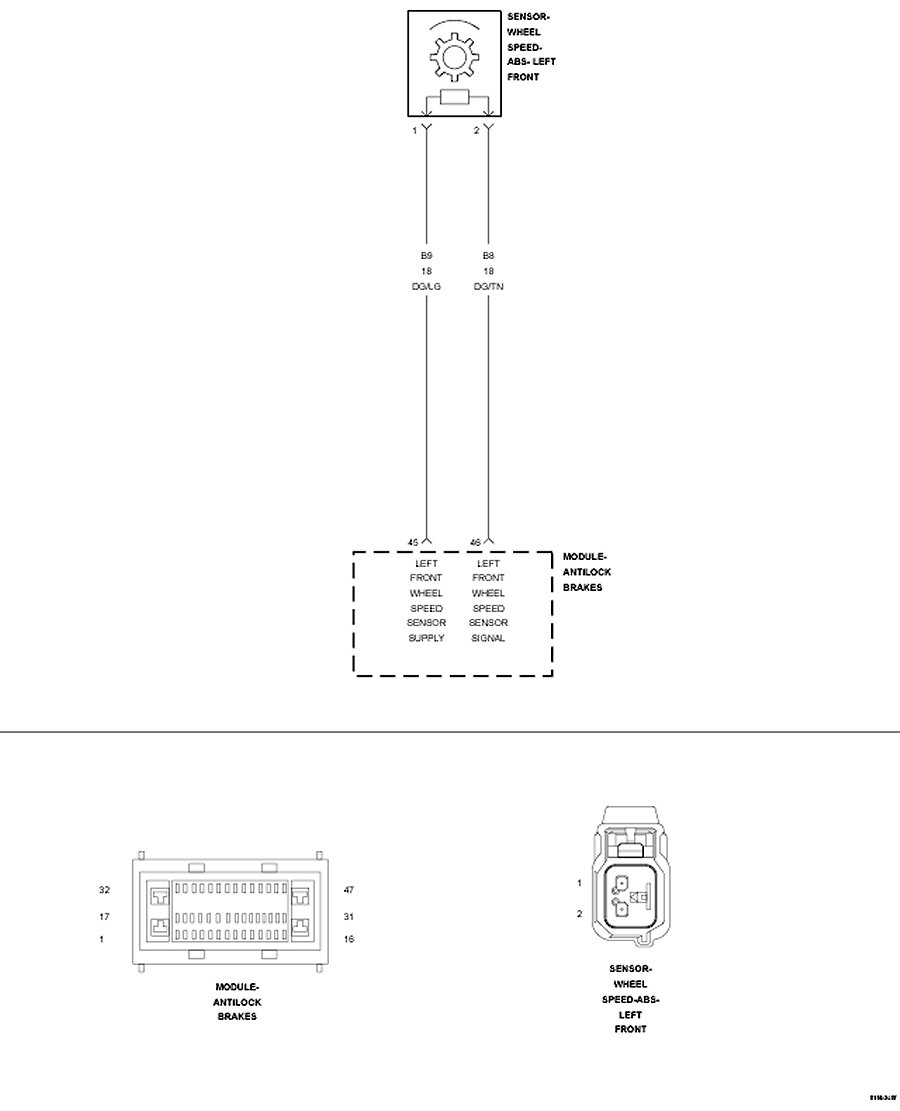

For a complete wiring diagram, refer to Diagrams/Electrical. Electrical Diagrams

- When Monitored:

With the ignition on.

- Set Condition:

When the Left Front Wheel Speed Sensor (WSS) Signal reading is different from the readings received from the other WSS's at a vehicle speed above 40 km/h (25 mph). The Anti-Lock Brake Module compares WSS readings from side-to-side on an axle and front-to-rear.






Diagnostic Test

1. CHECK FOR DTC C1014-LEFT FRONT WHEEL SPEED COMPARATIVE PERFORMANCE

NOTE: This DTC must be active for the results of this test to be valid.

Turn the ignition on.

With the scan tool, record and erase DTCs.

Road test the vehicle over 40 km/h (25 mph).

NOTE: Vehicle must be driven above 40 km/h (25 mph) for set conditions to be met.

With the scan tool, read DTCs.

NOTE: The Anti-Lock Brake Module must sense ALL 4 wheels at 7.5 mph (12 km/h) before it will extinguish the ABS indicators.

Does the scan tool display: C1014-LEFT FRONT WHEEL SPEED COMPARATIVE PERFORMANCE?

Yes

- Go To 3

No

- Go To 2

2. CHECK WHEEL SPEED SENSOR SIGNALS

Turn the ignition on.

With the scan tool, monitor and graph ALL the WSS speeds and compare graph while an assistant drives the vehicle.

NOTE: If graph shows periodic dropouts pay close attention to the tone wheel.

Slowly accelerate as straight as possible from a stop to 40 km/h (25 mph).

Is the Left Front WSS speed showing 0 km/h (0 mph) or not matching other wheel speeds?

Yes

- Go To 3

No

- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Refer to the ABS-INTERMITTENT CONDITION TEST. ABS Intermittent Condition Test

3. CHECK FOR IMPROPER LEFT FRONT TIRE PRESSURE/MISMATCHED TIRES

Turn the ignition off.

Check and adjust the Left Front Tire pressure.

Check and adjust all other tire pressures.

Inspect for mismatched tires on vehicle.

Is the Left Front Tire improperly inflated or mismatched tires on vehicle?

Yes

- Repair as necessary
- Perform ABS VERIFICATION TEST. ABS Verification Test

No

- Go To 4

4. CHECK LEFT FRONT WSS LOOSENESS, INSPECT B8, B9 CIRCUITS/TERMINALS FOR DAMAGE

NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.

Inspect the Anti-Lock Brake Module harness connector, Left Front WSS, and Left Front WSS harness connector.

Inspect the Left Front WSS for looseness, excessive corrosion and not properly fastened.

Inspect the (B8) Left Front WSS Signal and (B9) Left Front WSS Supply circuits between the Left Front WSS and Anti-Lock Brake Module for damage.

Is the Left Front WSS loose or any of the wiring/connectors/terminals damaged?

Yes

- Repair as necessary.
- Perform ABS VERIFICATION TEST. ABS Verification Test

No

- Go To 5

5. CHECK LEFT FRONT TONE WHEEL FOR DAMAGE

Inspect the Left Front Tone Wheel for damage, missing teeth, cracks, or looseness.

NOTE: The Tone Wheel teeth should be perfectly square, not bent, or nicked.

Is the Left Front Tone Wheel damaged?

Yes

- Repair as necessary.
- Perform ABS VERIFICATION TEST. ABS Verification Test

No

- Go To 6

6. LEFT FRONT WHEEL SPEED SENSOR

Replace the Left Front Wheel Speed Sensor.

Perform ABS VERIFICATION TEST. ABS Verification Test

Road test the vehicle over 40 km/h (25 mph).

NOTE: Vehicle must be driven above 40 km/h (25 mph) for set conditions to be meet.

Using the scan tool, read ABS DTCs.

NOTE: The Anti-Lock Brake Module must sense ALL 4 wheels at 7.5 mph (12 km/h) before it will extinguish the ABS indicators.

Did DTC C1011-LEFT FRONT WHEEL SPEED SENSOR SIGNAL ERRATIC PERFORMANCE reset?

Yes

- Replace the Anti-Lock Brake Module.
- Perform ABS VERIFICATION TEST. ABS Verification Test

No
- Test complete.
