Jeep
>>
2006
>>
Grand Cherokee 4WD V8-4.7L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alternator
Alternator

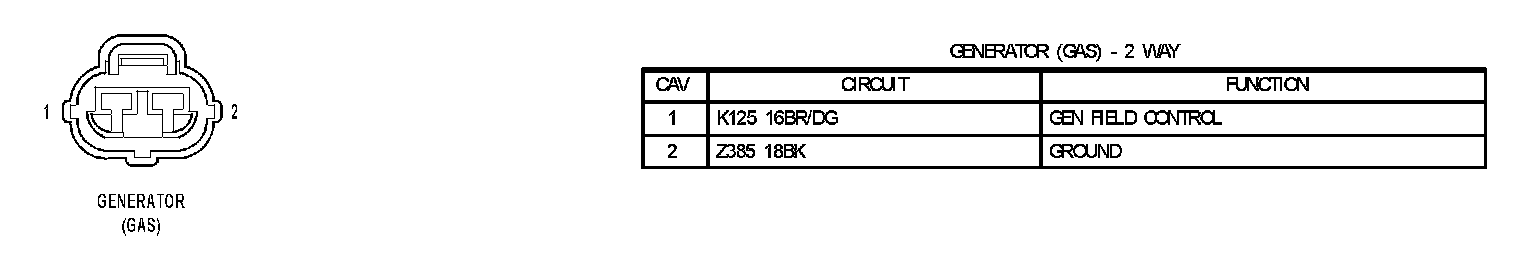

Generator (Gas):

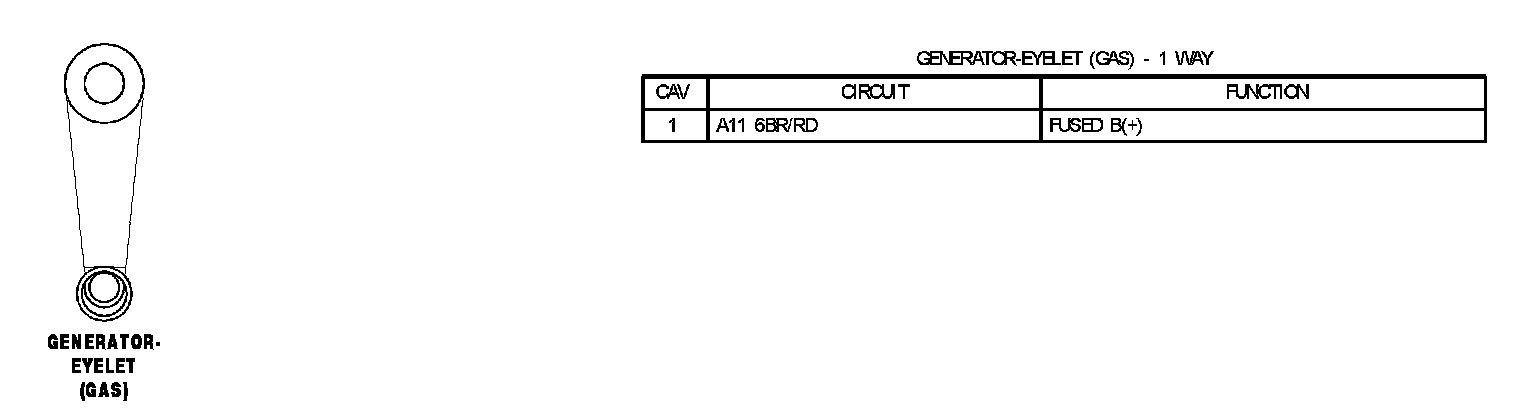

Generator Eyelet (Gas):
