Fuse Block

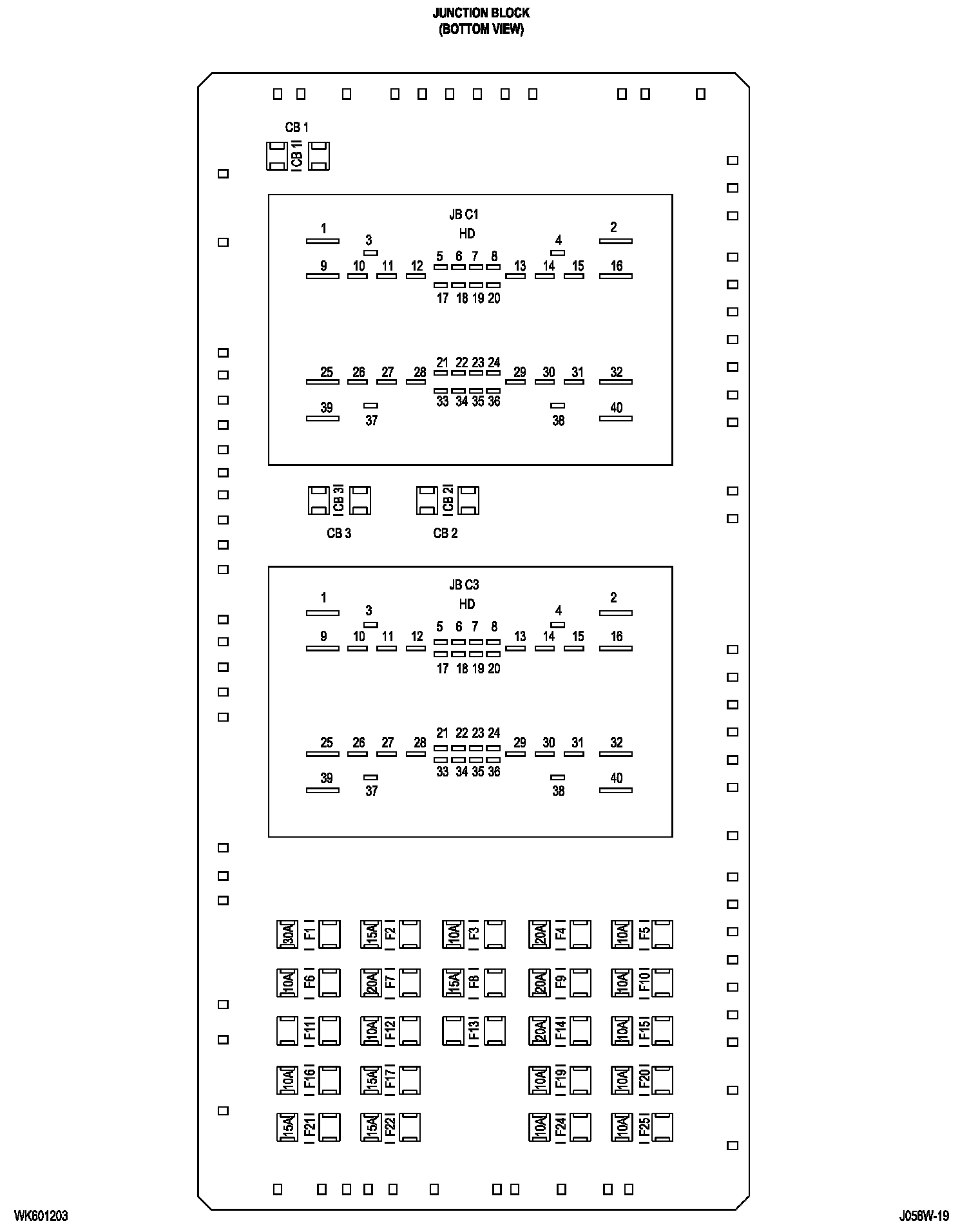

Junction Block (Bottom View):

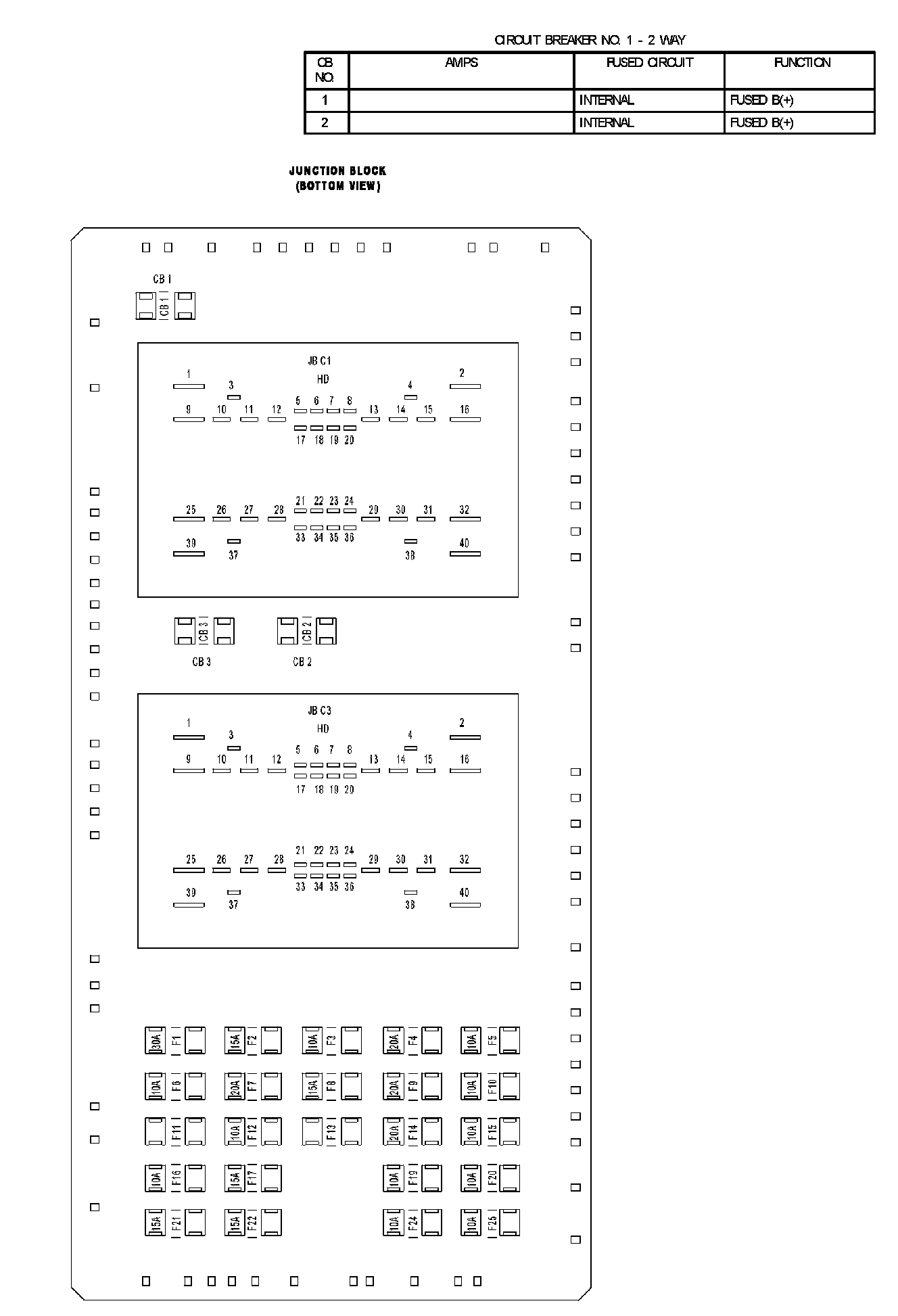

Junction Block (Bottom View):

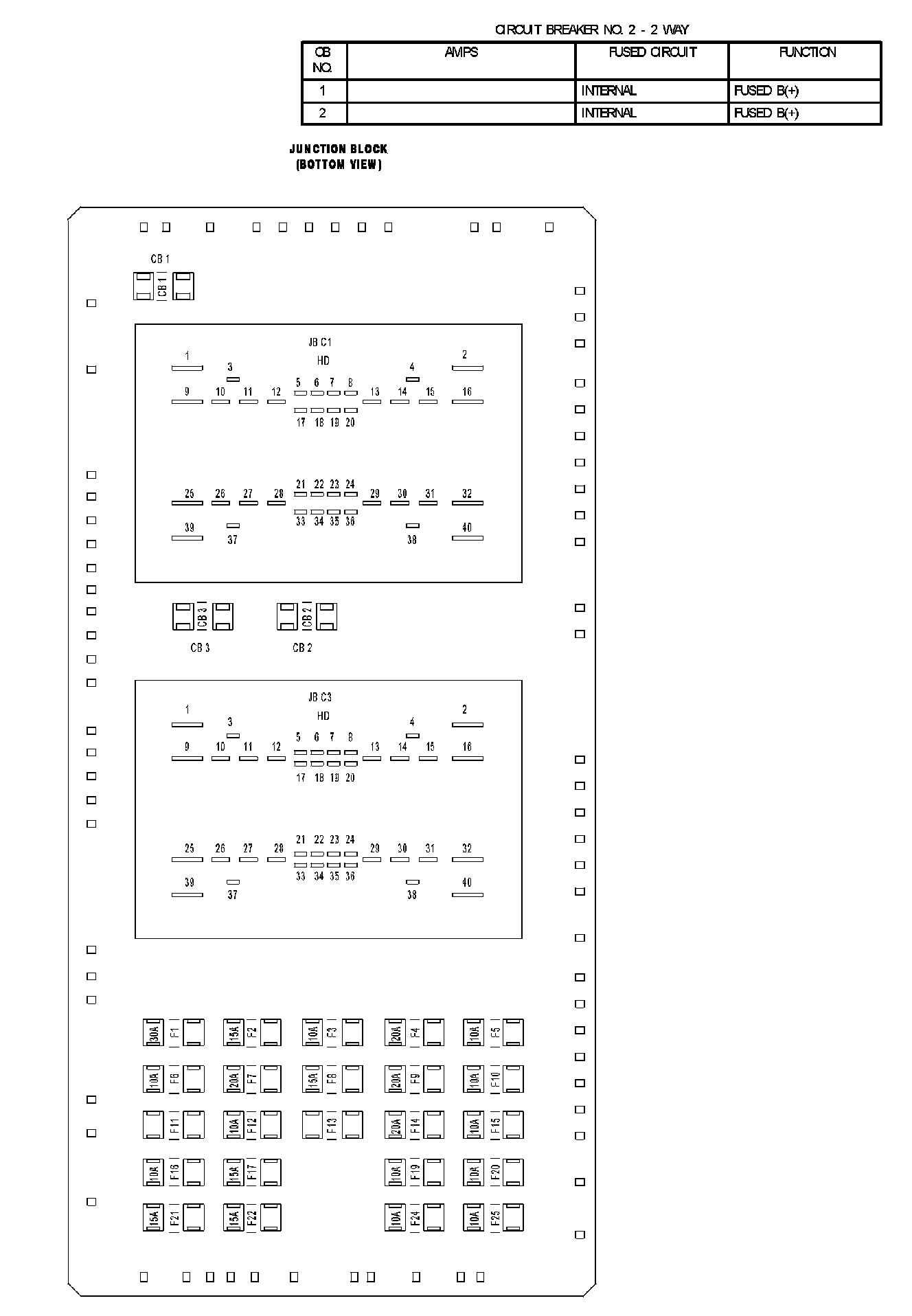

Junction Block (Bottom View):

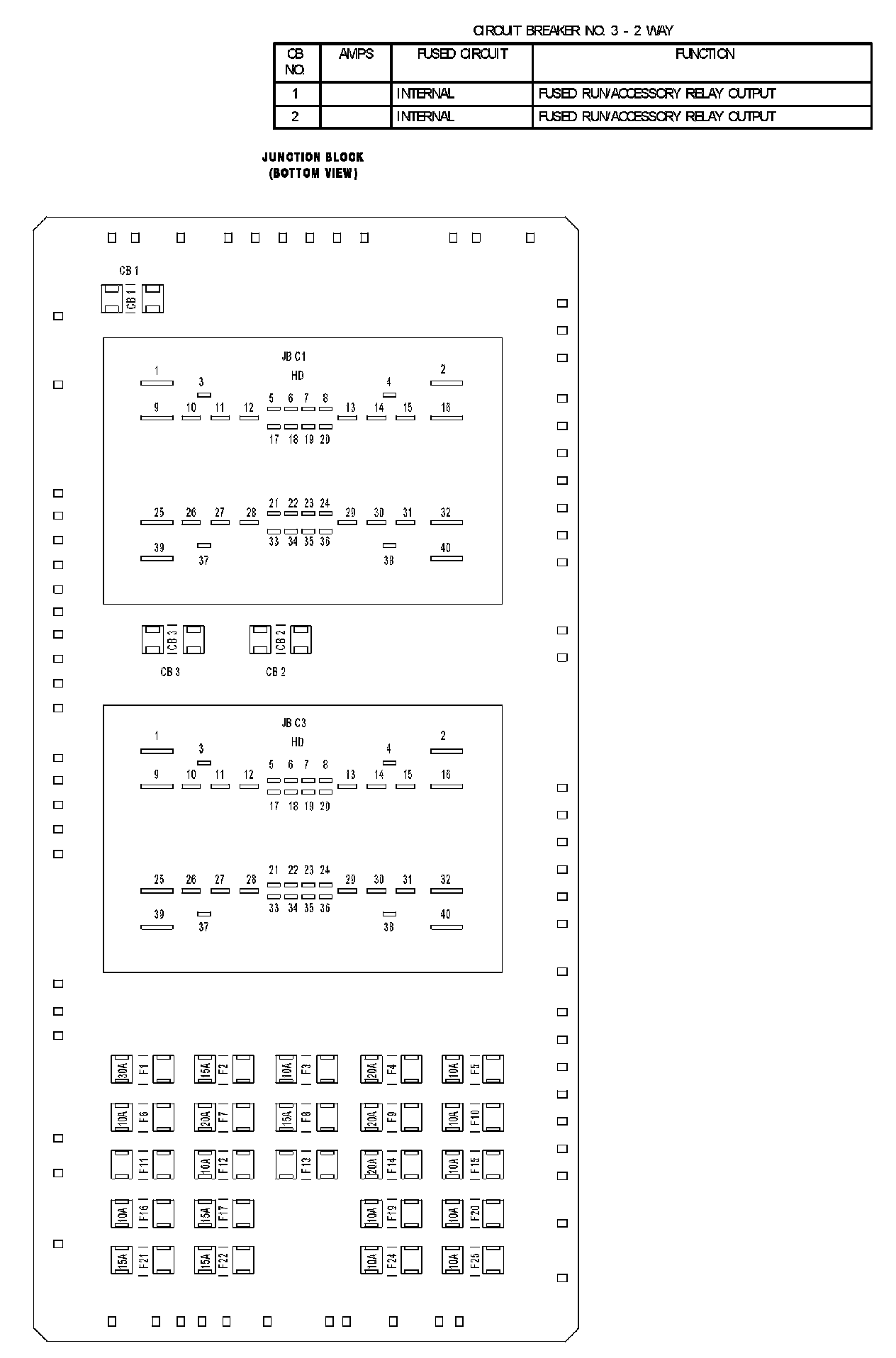

Junction Block (Bottom View):
