Power Distribution Module

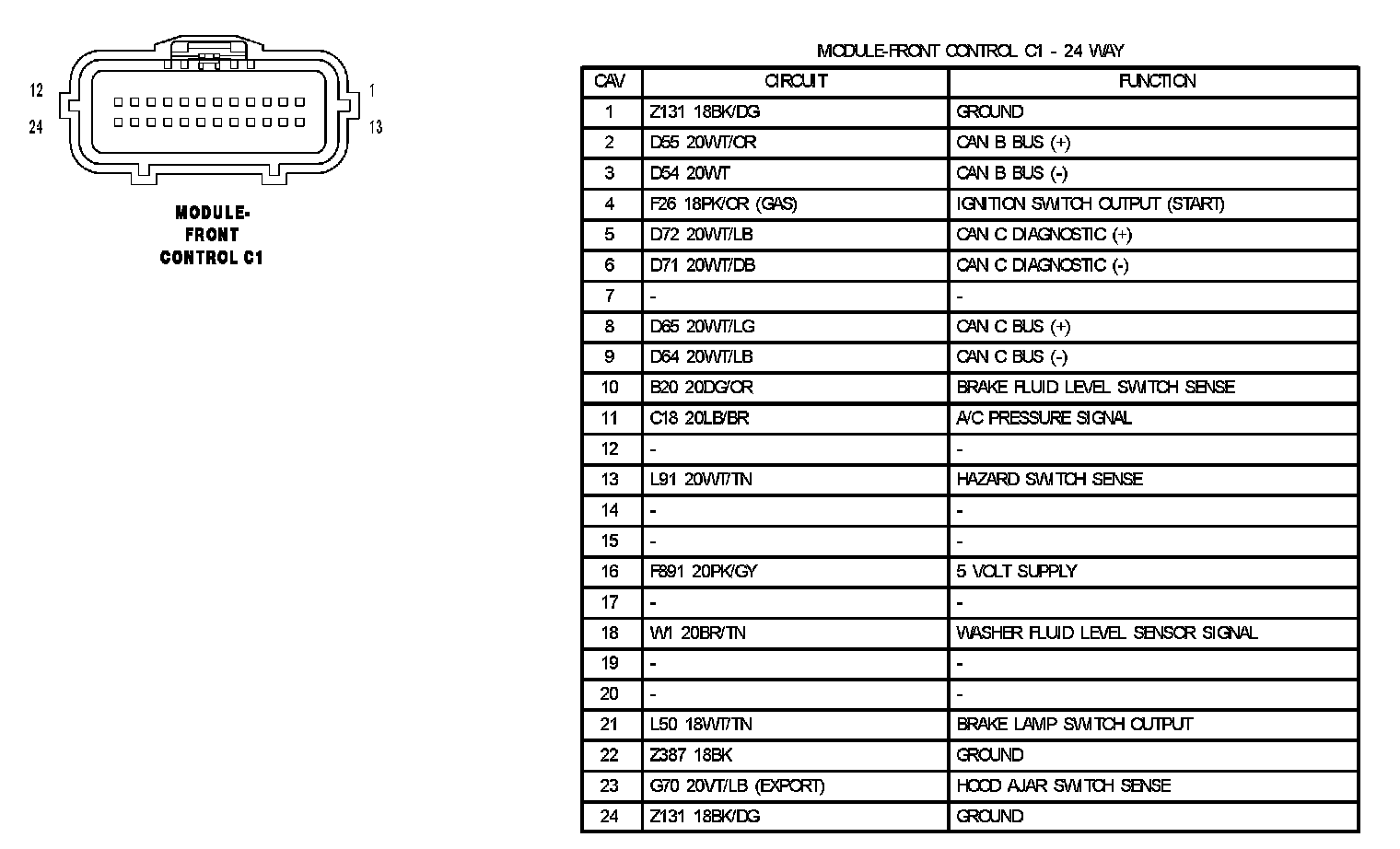

Module Front Control C1:

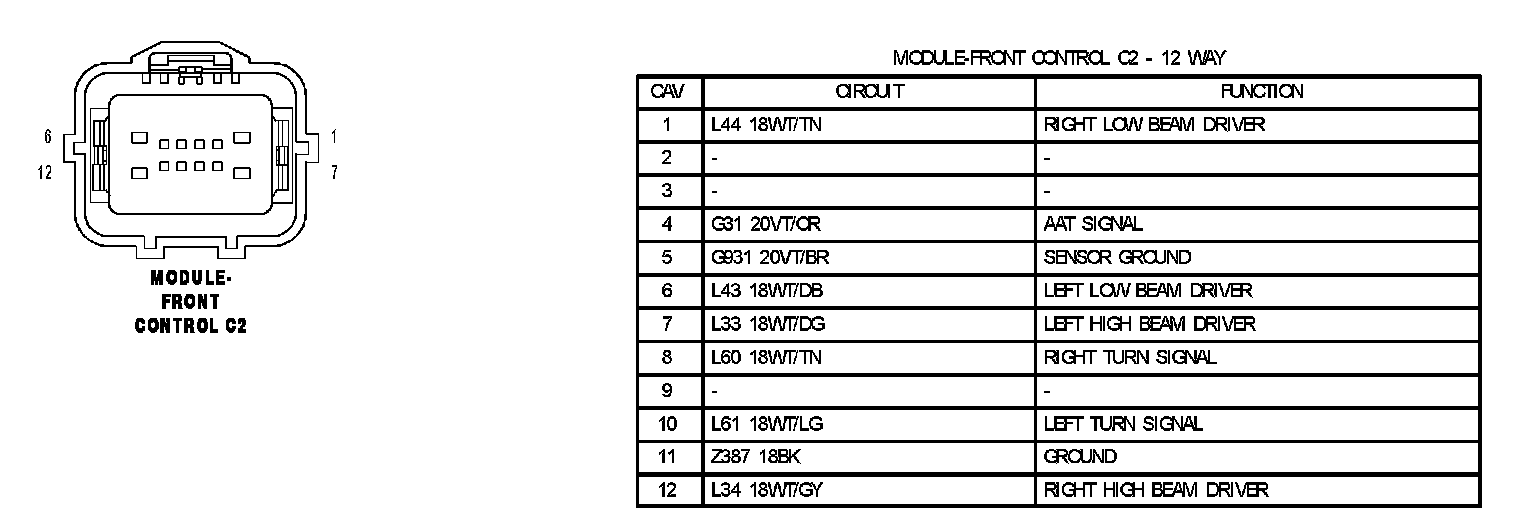

Module Front Control C2:

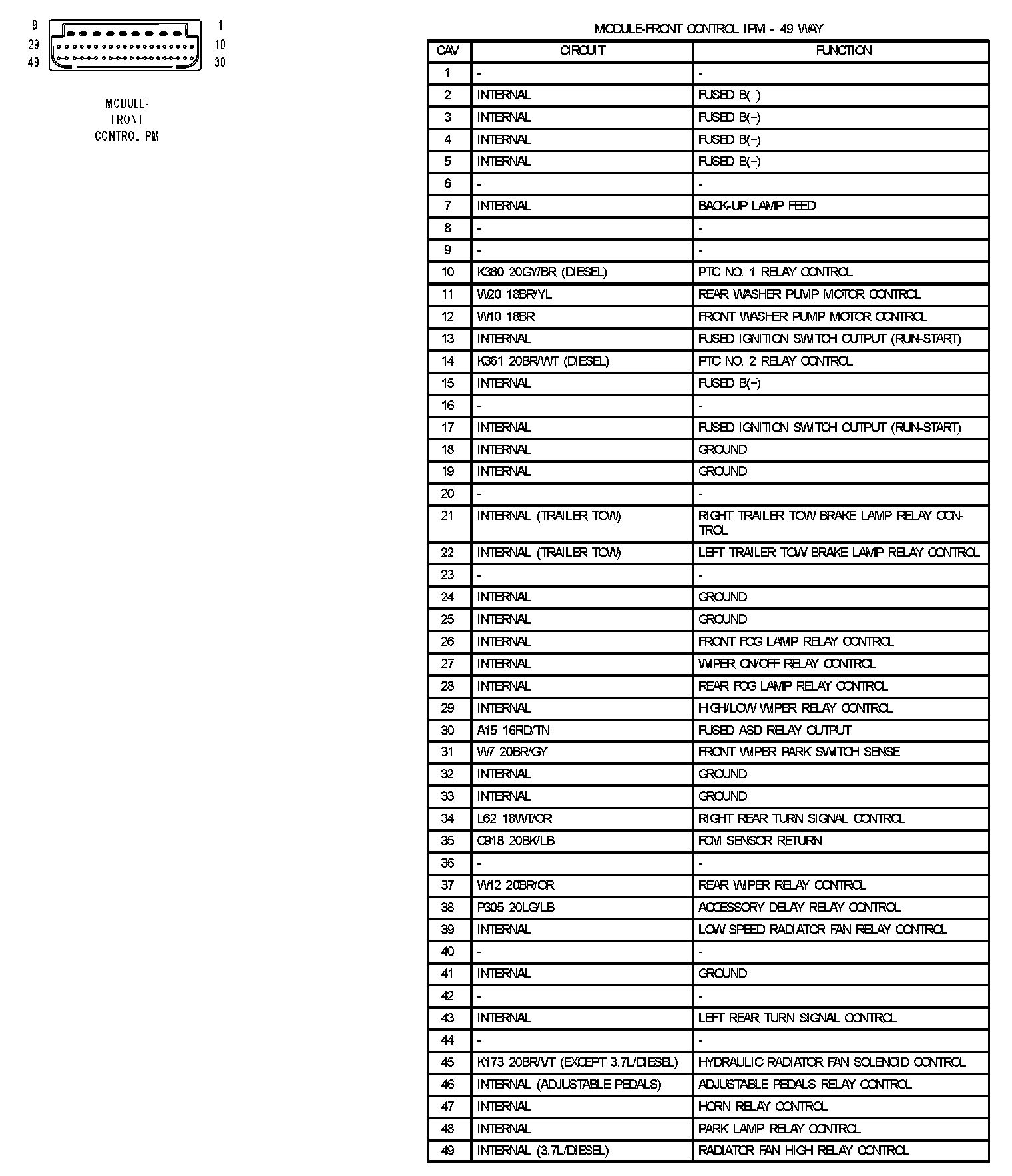

Module Front Control IPM:

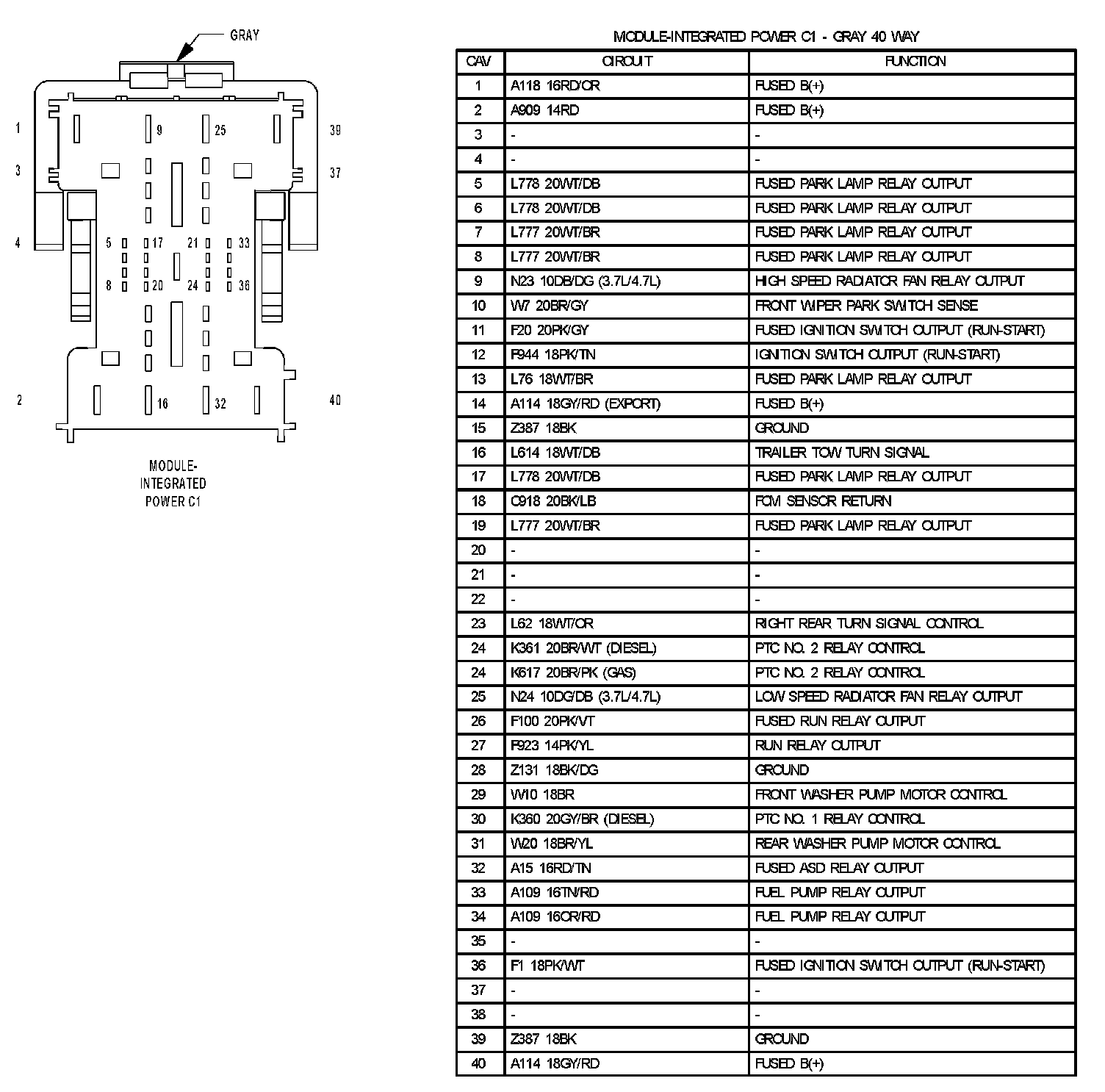

Module Integrated Power C1:

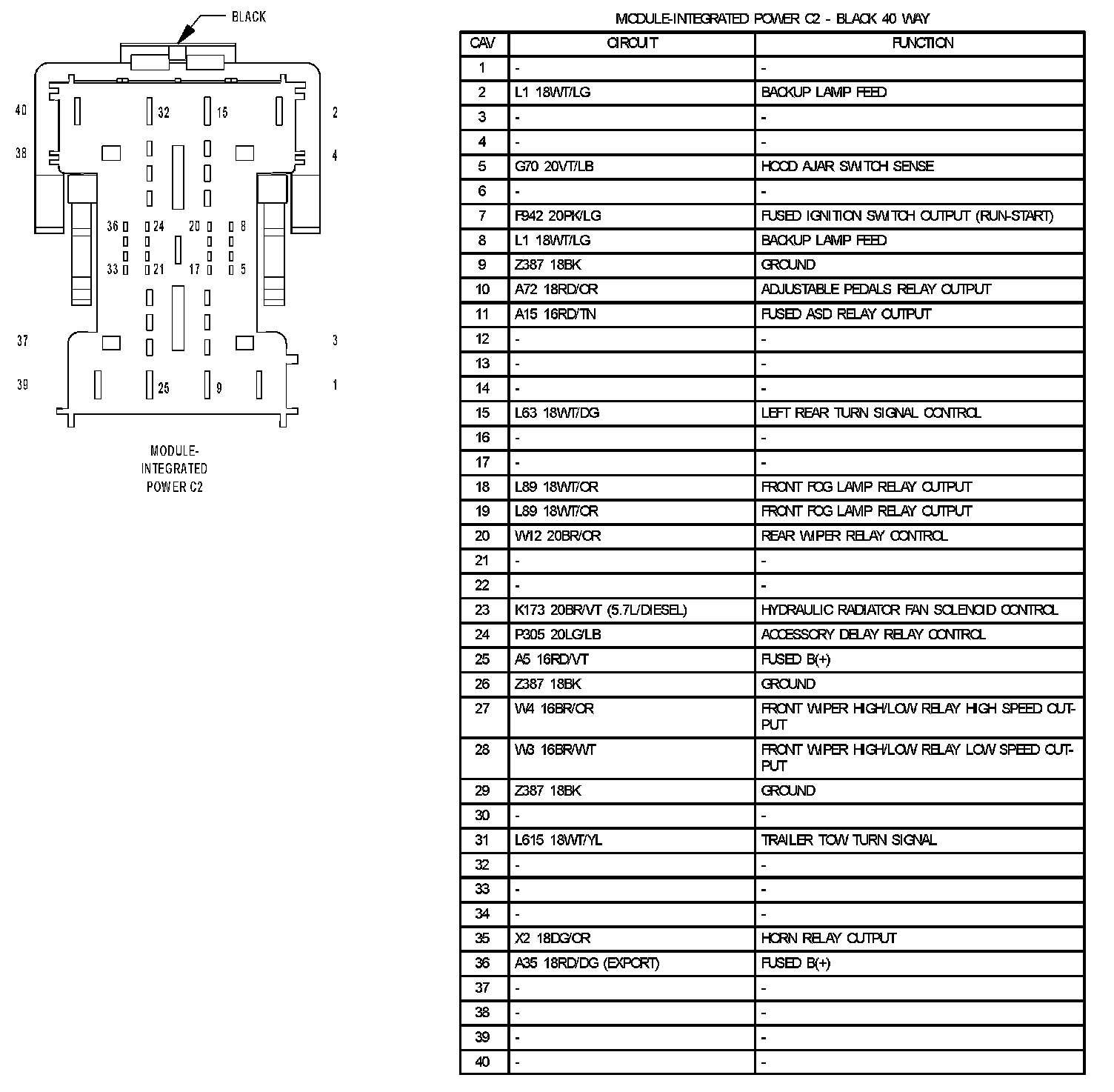

Module Integrated Power C2:

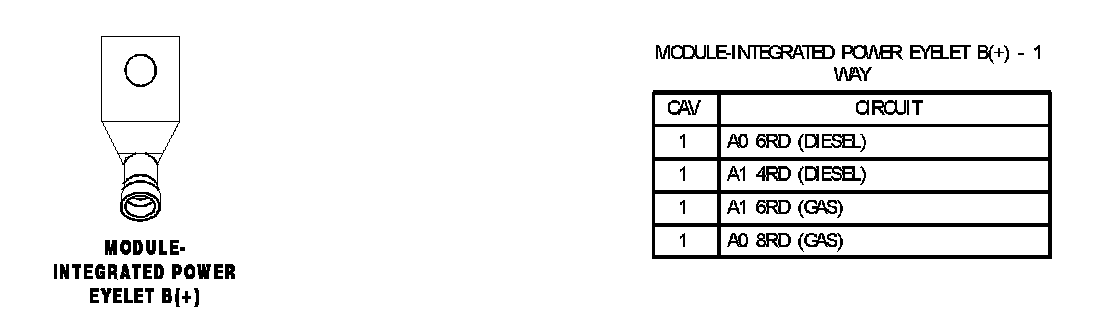

Module Integrated Power Eyelet B(+):

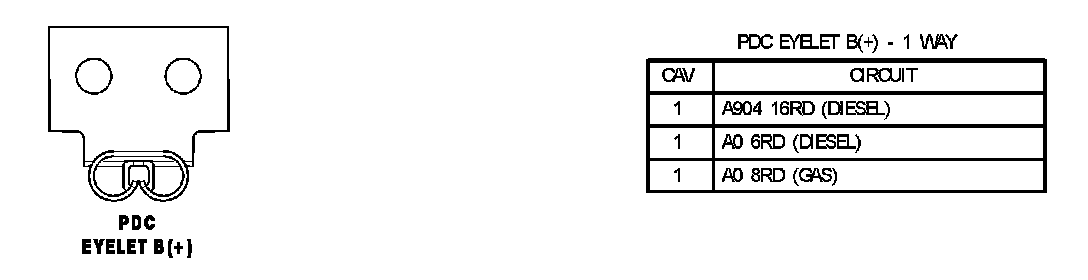

PDC Eyelet B(+):
