Power Distribution Relay
Power Distribution Relay

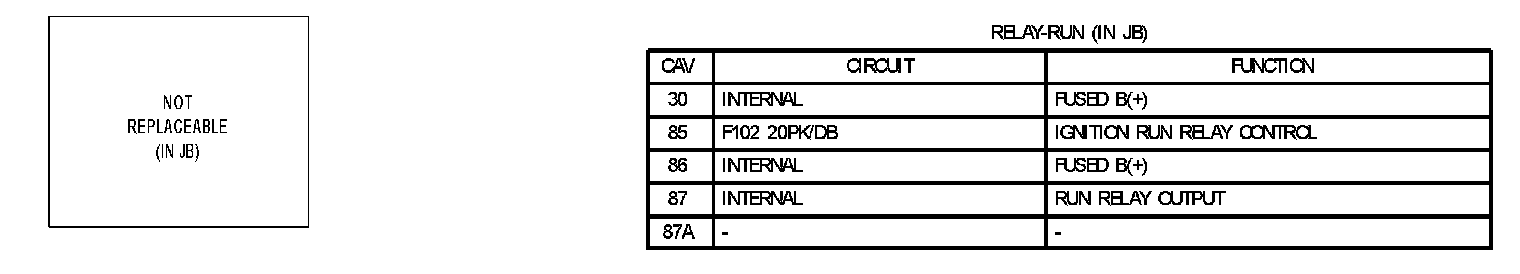

Relay - Run (In JB):

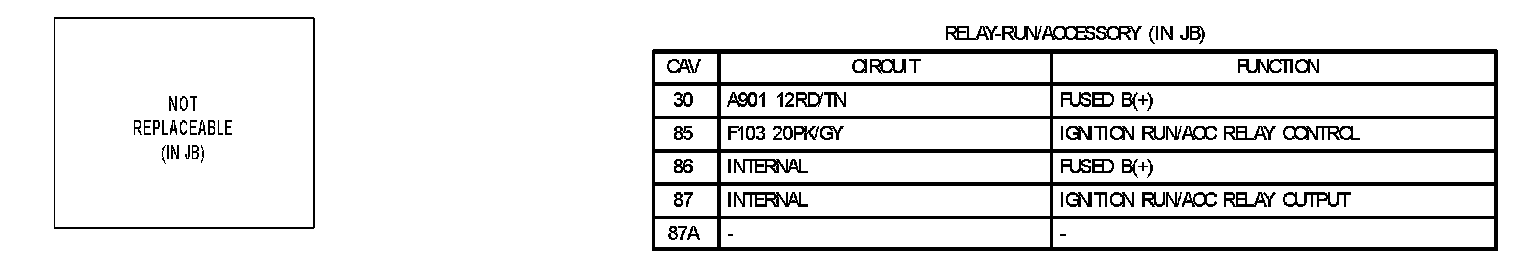

Relay - Run/Accessory (In JB):

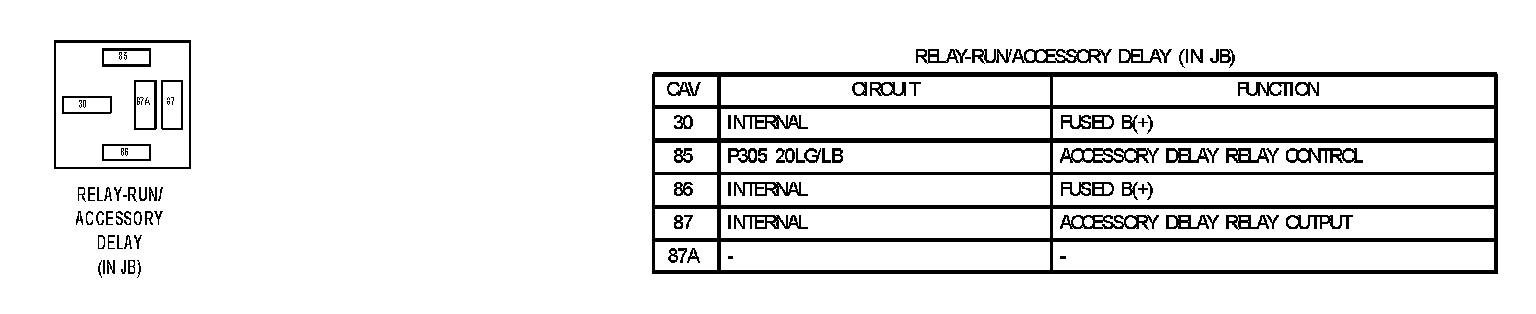

Relay Run/Accessory Delay (In JB):
